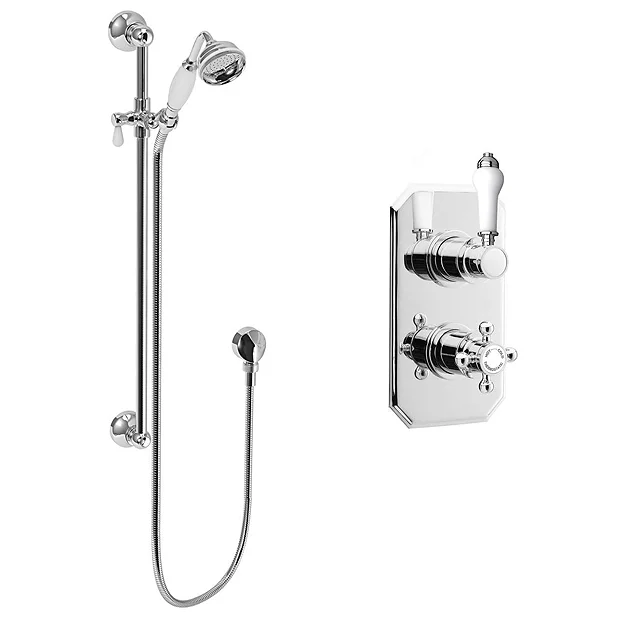

Trafalgar Twin Concealed Thermostatic Shower Valve + Slider Rail Kit

Trafalgar Twin Concealed Thermostatic Shower Valve + Slider Rail Kit

The Trafalgar Edwardian styled range of classic concealed thermostatic shower valves brings substantial timeless elegance to the modern bathroom. This Concealed Thermostatic Twin Shower Valve offers thermostatic showering via two easy-to-operate controls.

Manufactured using high quality chrome and brass, our range of Edwardian shower valves will look outstanding in any shower enclosure. Supplied with a slider rail kit, providing a flexible showering solution for all user large or small.

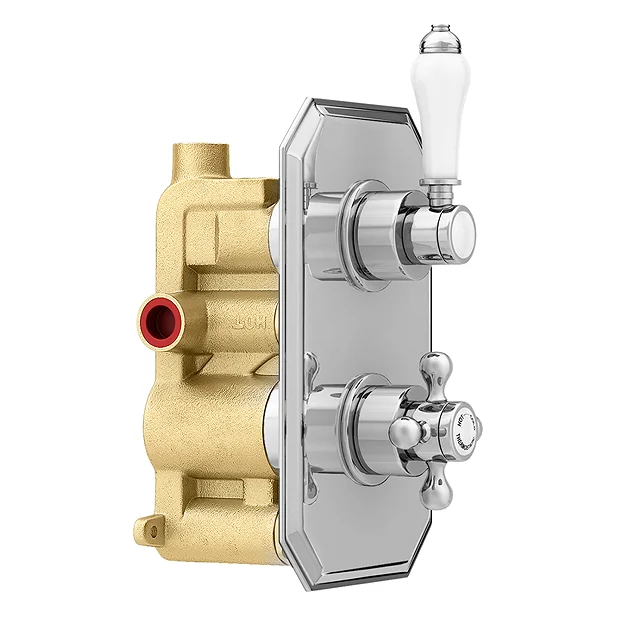

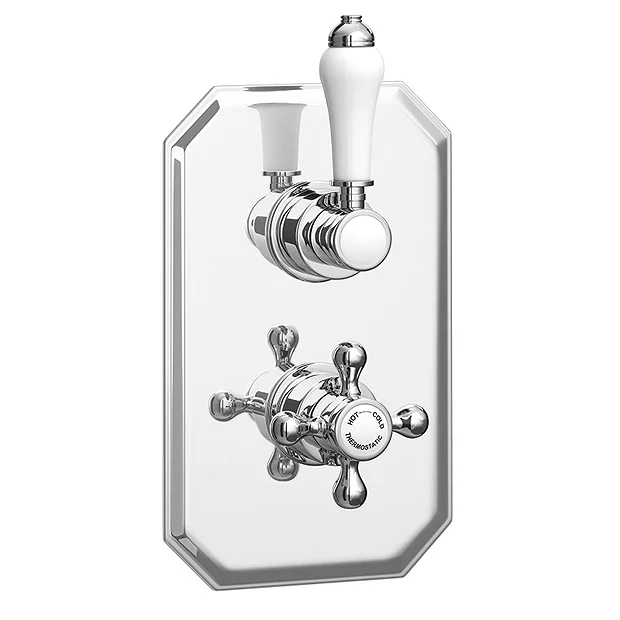

Shower Valve Details

• Height: 210mm
• Width: 130mm
• Type: Concealed Valve
• Style: Traditional
• Colour/Finish: Polished Chrome

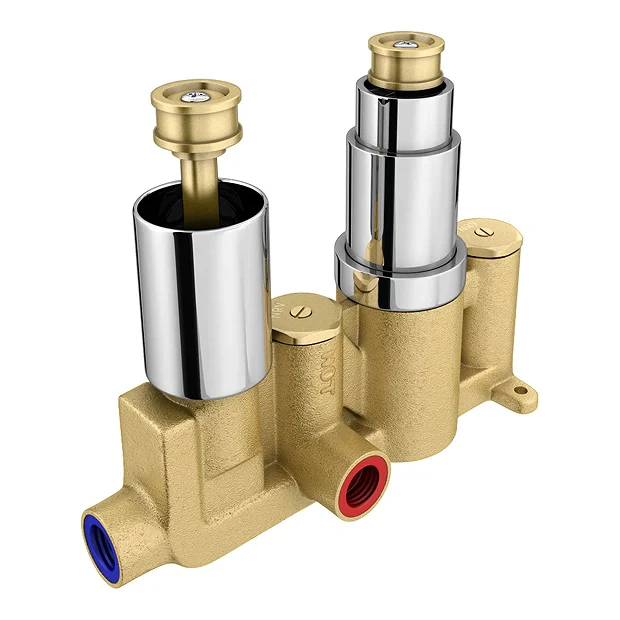

• Brass Internals
• Wall mounted
• Thermostatically controlled
• Classic lever and cross head handles
• Separate controls for temperature and flow.
• Operates a single shower accessory.
• Water Pressure: 0.5 bar to 5 bar

• Suitable for modern pressurised plumbing systems.

• Hot water temperature 55 to 85 Degrees
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.

• Should a pump be required we recommend a universal or negative head pump

• Flow Rates:
• 0.5 bar – 9.6 L/M
• 1 bar – 14.1 L/M
• 2 bar – 20.5 L/M
• 3 bar – 24.8 L/M
• 4 bar – 28.3 L/M
• 5 bar – 32 L/M


Slider Kit Details

• Height: 690mm
• Style: Traditional
• Colour/Finish: Polished Chrome with White ceramic detailing
• Material: Brass Internals
• Slide Rail Kit & Shower
• Low pressure
• Adjustable Handset Position
• 1.5m hose
• Manufactured to the Highest Standards
• Includes outlet elbow

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

All measurements are approximate

Images are for illustrative purposes only

Comprises

(1) Slide Rail Kit with Outlet Elbow – Chrome
(1) Traditional Twin Concealed Thermostatic Shower Valve – Chrome

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
