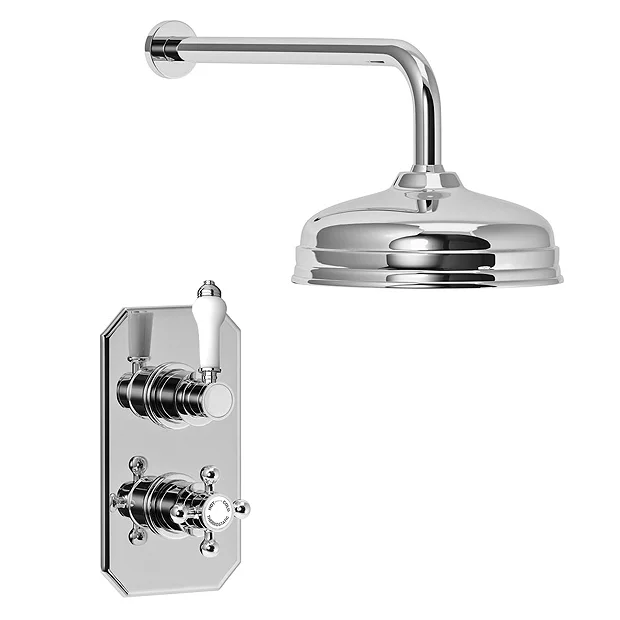

Trafalgar Traditional Twin Concealed Thermostatic Shower Valve Inc. 8″ Apron Fixed Head

Trafalgar Traditional Twin Concealed Thermostatic Shower Valve inc. 8″ Apron Fixed Head


The Trafalgar concealed thermostatic shower valve brings substantial timeless elegance to the modern bathroom. This Concealed Thermostatic Twin Shower Valve offers thermostatic showering via two easy-to-operate controls. This elegant chrome and brass concealed shower valve will look outstanding in any shower enclosure. Supplied with a 8″ apron fixed overhead shower head.

Shower Valve Details

• Height: 210mm
• Width: 130mm
• Type: Concealed Valve
• Style: Traditional
• Colour/Finish: Polished Chrome

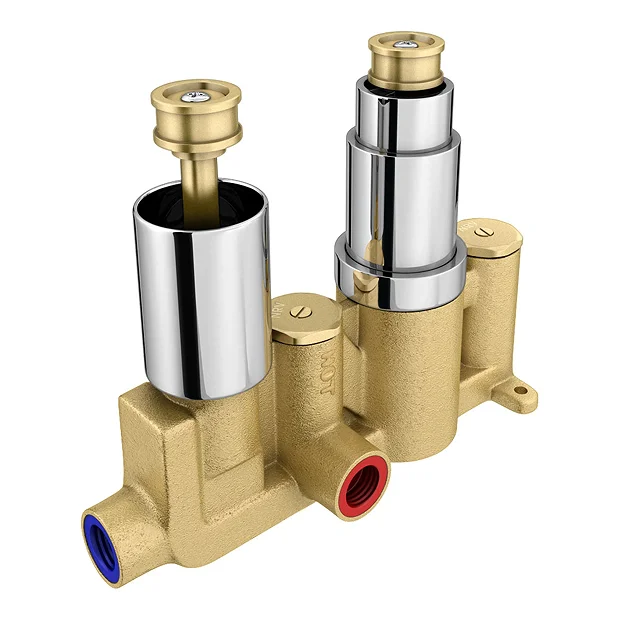

• Brass Internals
• Wall mounted
• Thermostatically controlled

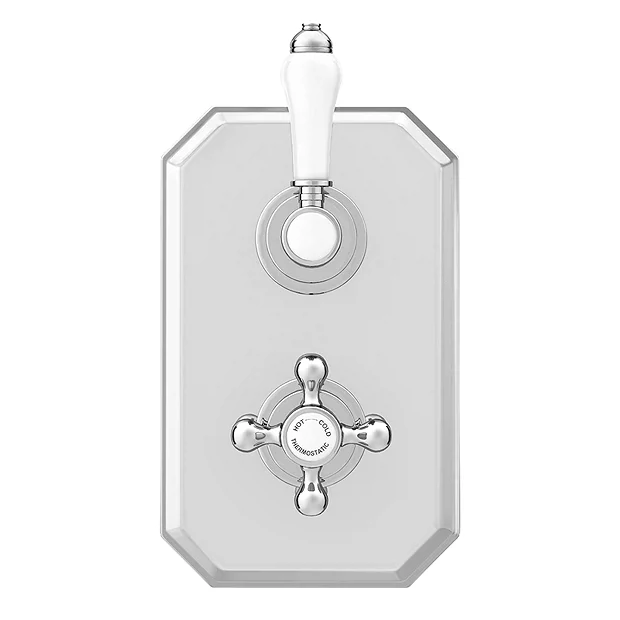

• Classic lever and cross head handles

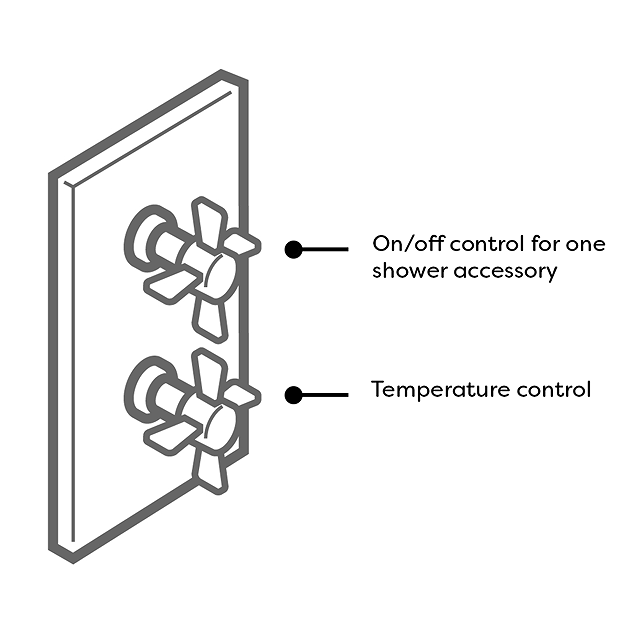

• Separate controls for temperature and flow.
• Operates a single shower accessory – 1 Outlet
• Water Pressure: 0.5 bar to 5 bar
• Hot water temperature 55 to 85 Degrees
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.
• Should a pump be required we recommend a universal or negative head pump.
• Flow Rates:
• 0.5 bar – 9.6 L/M
• 1 bar – 14.1 L/M
• 2 bar – 20.5 L/M
• 3 bar – 24.8 L/M
• 4 bar – 28.3 L/M
• 5 bar – 32 L/M

Shower Head & Arm Details

• High Quality Design
• Colour/Finish – Polished Chrome
• Shower Arm – 330mm Length
• Manufactured to the Highest Standards

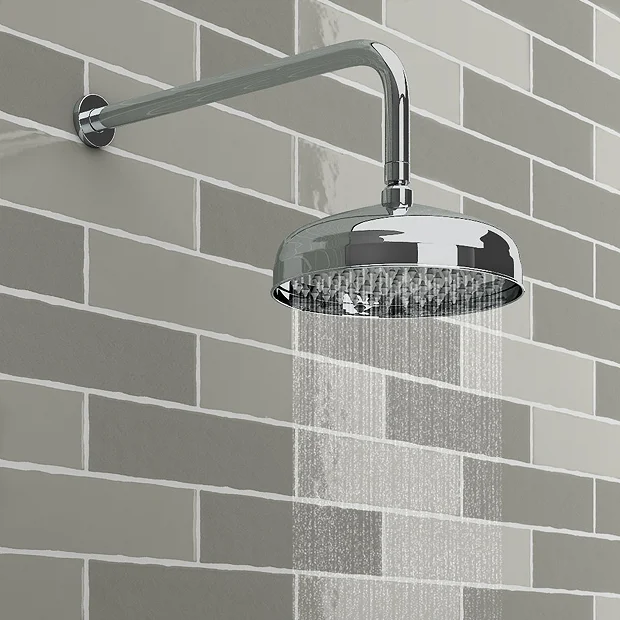

• Fixed overhead rainfall shower
• Requires a minimum of 0.5 bar pressure
• Installation of the arm requires rear access behind the wall.


Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Images are for illustrative purposes only

All measurements are approximate

Comprises

(1) 8″ Apron Fixed Shower Head – Chrome
(1) Traditional Twin Concealed Thermostatic Shower Valve – Chrome
(1) Round 345mm Length Shower Arm

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
