Trafalgar Traditional Shower Package With Ceiling Mounted Fixed Head, Handset + Bath Spout

Trafalgar Traditional Shower Package with Ceiling Mounted Fixed Head, Handset + Bath Spout

The Trafalgar traditional 3 outlet shower package features a stylish triple concealed thermostatic shower valve with built-in diverter which offers thermostatic showering via three easy-to-operate controls. Operates two shower accessories separately or simultaneously and diverts to a third option: ceiling mounted fixed head & handset with option to divert to bath filler.

Package comes with a wall mounted bath spout, a 8″ ceiling mounted shower head with swivel joint, a traditional style outlet elbow with parking bracket, flex and handset.

Triple Concealed Thermostatic Shower Valve with Diverter Details

• Height: 280mm
• Width: 130mm
• Type: Concealed Valve
• Style: Traditional
• Colour/Finish: Chrome
• Manufactured from highly durable brass
• Water Pressure: 0.5 bar to 5 bar
• Wall mounted
• Built-in Diverter
• Thermostatically controlled
• Classic face plate, lever and cross head handles

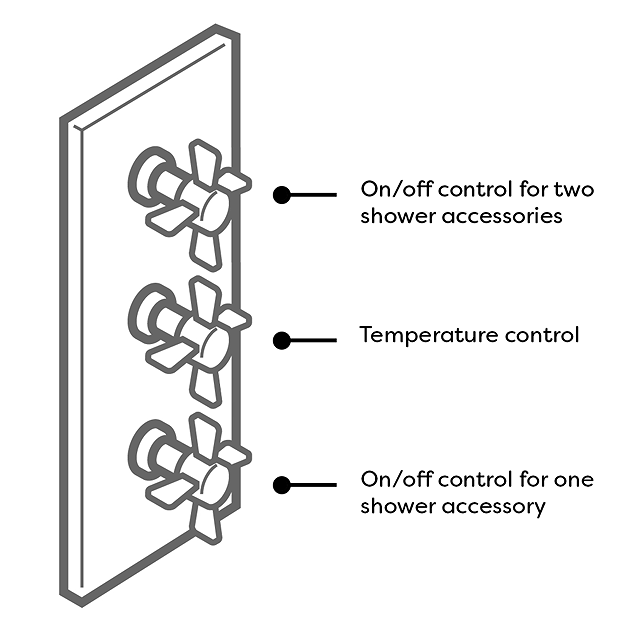

• Separate controls for temperature and flow.
• Operates two shower accessories separately or simultaneously and diverts to a third option
• Suitable for modern pressurised plumbing systems.
• Can be fitted vertically or horizontally.
• Hot water temperature 55 to 85 Degrees
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.
• Should a pump be required we recommend a universal or negative head pump.

Shower Head with Vertical Arm Details

• Diameter: 210mm
• Height: 100mm
• Shower arm height: 150mm
• With Swivel ball joint
• Style: Traditional
• Colour/Finish: Polished Chrome
• Material: Brass Internals
• Rainfall shower
• Pressure requirement 0.5 bar minimum
• Silicone nozzles mean that any limescale deposits can simply be rubbed away

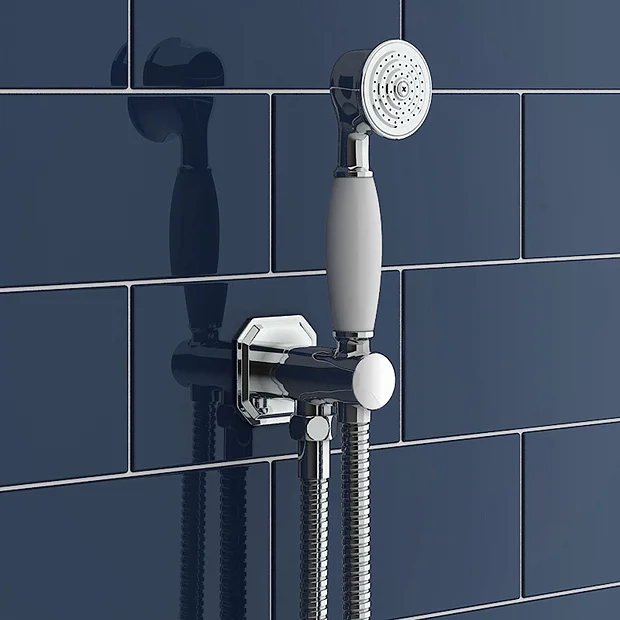

Outlet Elbow with Parking Bracket, Flex & Handset Details

• Height: 216mm
• Width: 50mm
• Depth: 98mm
• Finish: Polished Chrome
• Material: Brass Internals
• Style: Traditional
• 1/2″ BSP connections
• Outlet elbow covers unsightly fittings
• Suitable for use with concealed shower valves
• Chrome 1.5m flexible hose
• Wall mounted
• Suitable for water pressure systems of 0.2 bar and above

Bath Spout Details

• Colour/Finish: Chrome finish
• Manufactured from highly durable brass
• Easy installation
• Traditional design
• Suitable for low pressure systems of 0.2 bar and above
• Projection: 176mm
• Wall mounted

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

All measurements are approximate

Images for illustrative purposes only

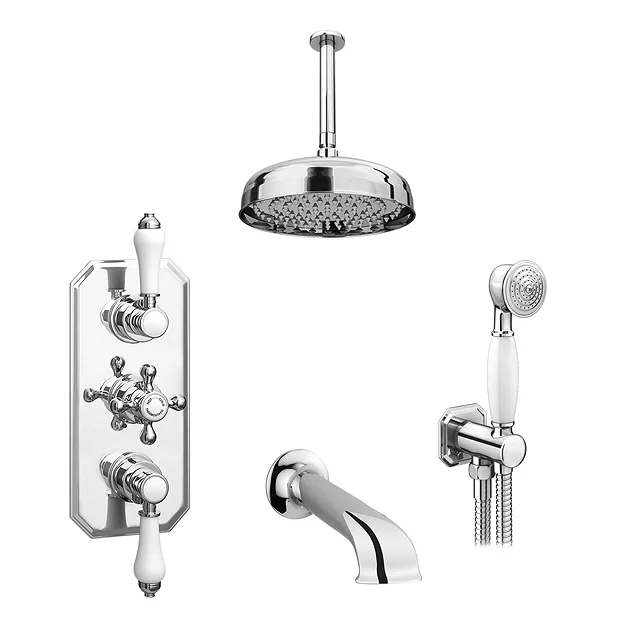

Comprises

(1) Traditional Triple Concealed Thermostatic Shower Valve with Diverter
(1) Traditional 8″ Apron Rose Shower Head with Ceiling Mounted Arm
(1) Traditional Outlet Elbow with Parking Bracket, Flex & Handset
(1) Wall Mounted Bath Spout

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
