Trafalgar Traditional Concealed Individual Stop Tap + Thermostatic Control Valve With 8″ Shower Head

Trafalgar Traditional Concealed Individual Stop Tap + Thermostatic Control Valve with 8″ Shower Head

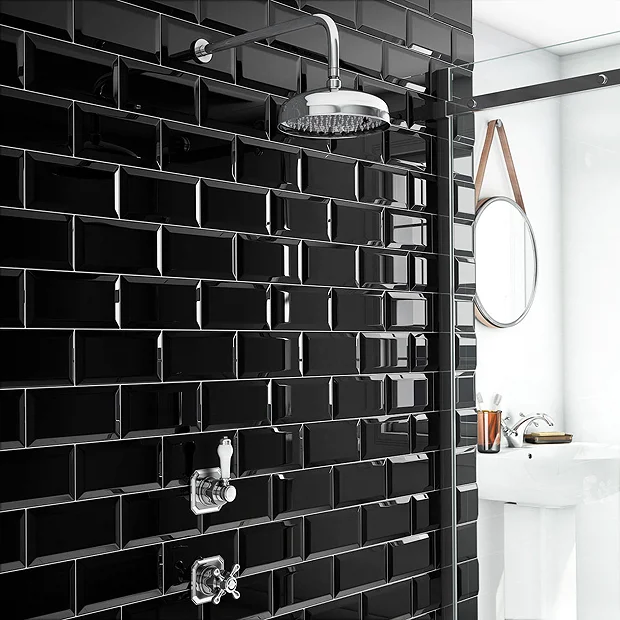

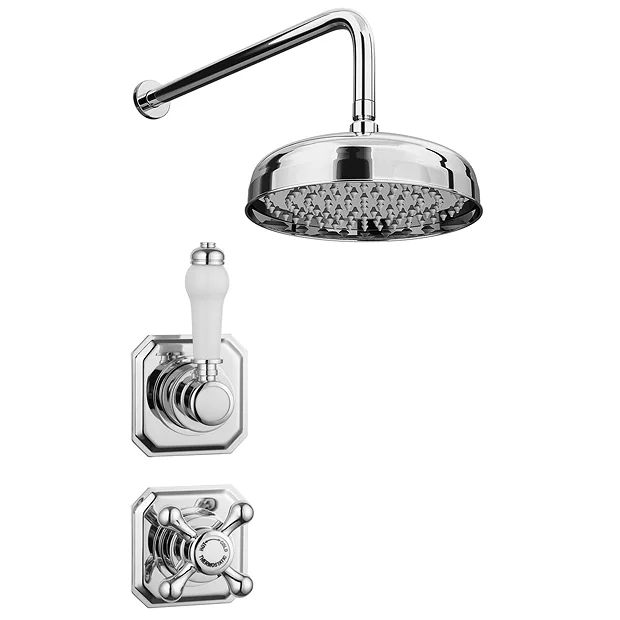

The Trafalgar Traditional Concealed Individual Stop Tap and Thermostatic Control Shower Valve Pack features a Edwardian style bevelled backplate with luxurious crosshead and lever handles. This traditional style shower valve pack is perfect for installing in a concealed arrangement, pack comes supplied with a traditional wall mounted 8″ apron rose shower head.

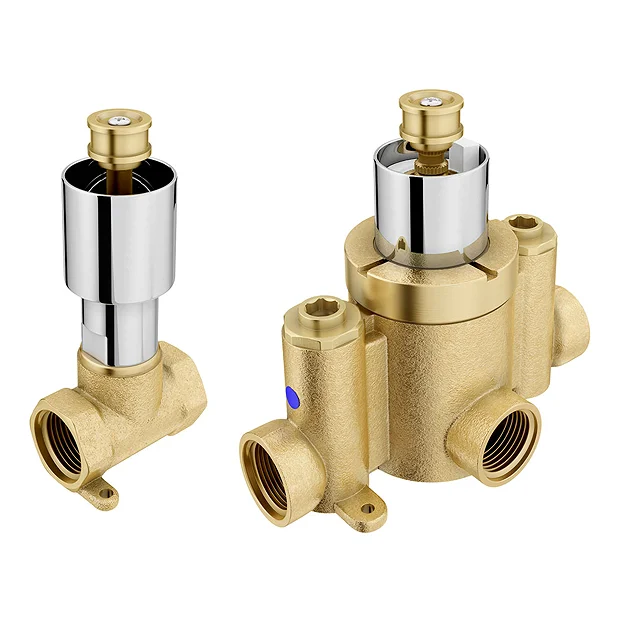

The Trafalgar concealed shower valve consists of two individual controls, for temperature and flow. The brass valve bodies come with chrome plated traditional backplates and handles. This concealed valve has been designed to be paired with one outlet, i.e. a main shower head.

Shower Valve Details

• Stop Tap: W70 x H70 x D154mm
• Thermostatic Control: W70 x H150 x D154mm
• Backplate: 70 x 70mm
• Style: Traditional
• Range: Trafalgar
• Valve Handles: Crosshead and Lever
• Colour/Finish: Chrome Plated
• Material: Brass Internals
• Concealed fitting
• Traditional bevelled backplates
• For use with 1 Outlet
• Min operating pressure: 0.5 bar
• Max operating pressure: 5 bar
• Hot Water Supply Temperature 55-85°C
• Cold Water Supply Temperature 4-29°C
• Suitable for modern pressurised plumbing systems.
• Bring an Edwardian sensibility to your bathroom with this traditional shower
• Pack includes individual thermostatic control with a individual stop tap for flow control.
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.
• Should a pump be required we recommend a universal or negative head pump.

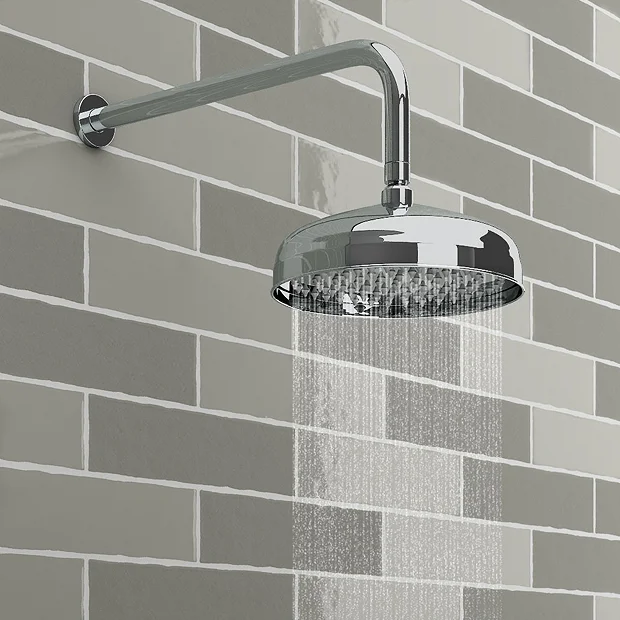

Shower Head Details

• Diameter: 210mm
• Height: 100mm
• Shower Arm Length: 345mm
• With Swivel ball joint
• Style: Traditional
• Colour/Finish: Polished Chrome
• Material: Brass Internals
• Pressure requirement 0.5 bar minimum
• Silicone nozzles mean that any limescale deposits can simply be rubbed away

For further information refer to products installation instructions

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

All measurements are approximate

Images are for illustrative purposes only

Comprises

(1) Trafalgar Concealed Individual Stop Tap + Thermostatic Control Shower Valve For 1 Outlet
(1) Belmont Traditional 8″ Apron Rose Shower Head
(1) Chrome 345mm Round Shower Arm

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
