Summit Square Ceiling Mounted Shower Pack (with Handset + Rainfall Shower Head)

Summit Concealed Thermostatic Triple Shower Valve Pack with 2 Outlets (Wall Mounted Handset + Ceiling Mounted Rainfall Shower Head)

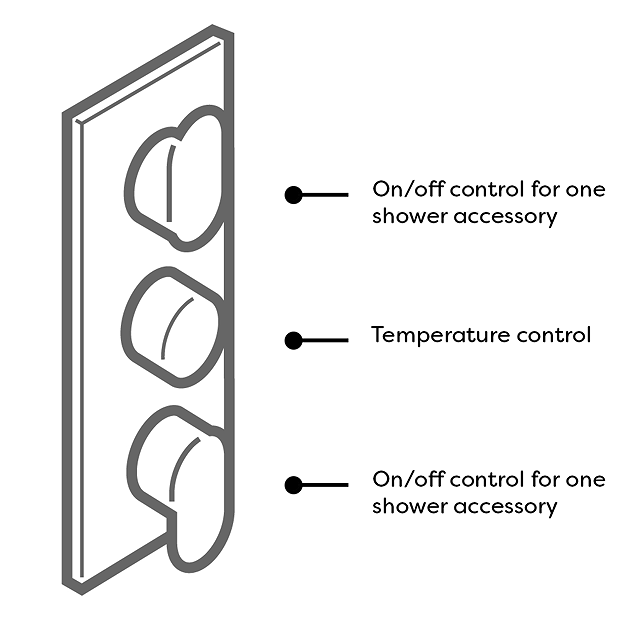

If a hot rain shower sounds appealing to you, try this Summit Square Shower Pack. The rainfall shower head, ceiling mounted to provide an immersive experience, mimics the effect of falling droplets for an indulgent experience. A separate pencil wand handset enables you to target specific parts of your body with ease. This 3 outlet shower valve also offers thermostatic control, so the water temperature will remain constant even if someone flushes the toilet. A sleek chrome panel houses a lever for each output plus there’s a square shaped temperature control for a touch of contemporary refinement.

Shower Valve Details

• Height: 265mm
• Width: 120mm
• Type: Concealed Shower Valve
• Style: Modern
• Colour/Finish: Polished Chrome
• Material: Brass Internals
• Thermostatically controlled
• Minimalist Square Lever Handles
• Wall Mounted
• Water Pressure: 0.5 bar to 5 bar
• Rectangular backplate
• Suitable for modern pressurised plumbing systems.
• Hot water temperature 55 to 85 Degrees
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.
• Should a pump be required we recommend a universal or negative head pump.

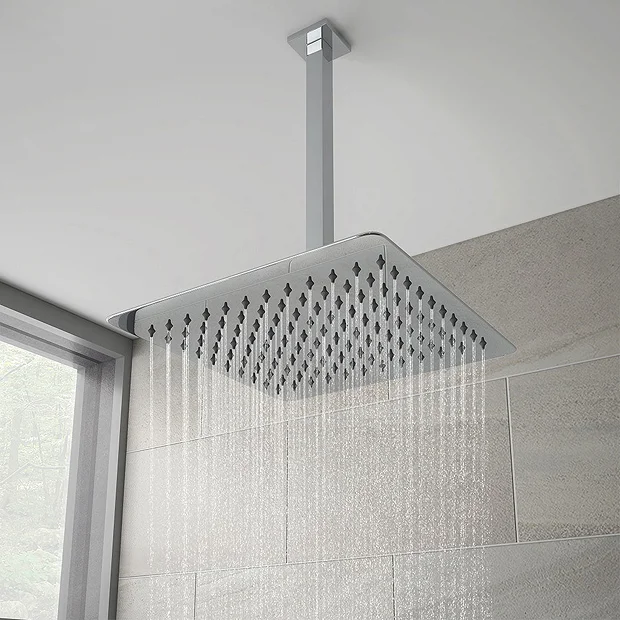

Shower Head Details

• Type: Ceiling Mounted
• Shape: Square
• Style: Modern
• Colour/Finish: Chrome Effect
• Material: Stainless Steel
• Size: 300x300mm
• Thickness/Profile: 3mm (excluding swivel joint)
• Pressure requirement 0.5 bar minimum
• Inlet Connections: 1/2″ BSP
• Sleek design
• Rub clean nozzles makes this item easy to clean and maintain
• Supplied with swivel ball joint
• Shower arm length: 300mm

Milan Concealed Wall Outlet Elbow with Shower Handset Details

• Width: 150mm
• Depth: 66mm
• Contemporary shower styling
• Manufactured To The Highest Standards
• Rust resistant hose
• Highly polished finish
• Rectangular handset
• 1.5m Shower flex –  Brass / Chrome plated
• Rectangular Face-plate – Brass / Chrome plated
• Concealed Outlet Elbow with Parking Bracket – Brass / Chrome plated
• Handset – ABS plastic / Chrome plated
• Suitable for all plumbing systems

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Product images are for illustration purposes only

All measurements are approximate

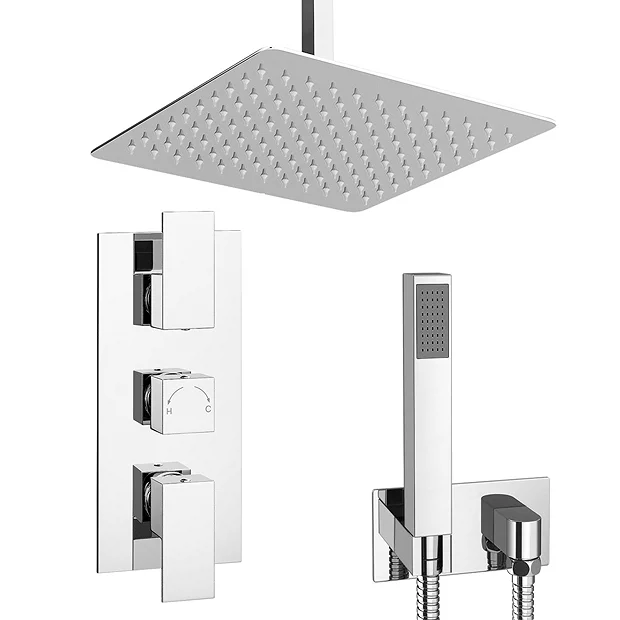

Comprises

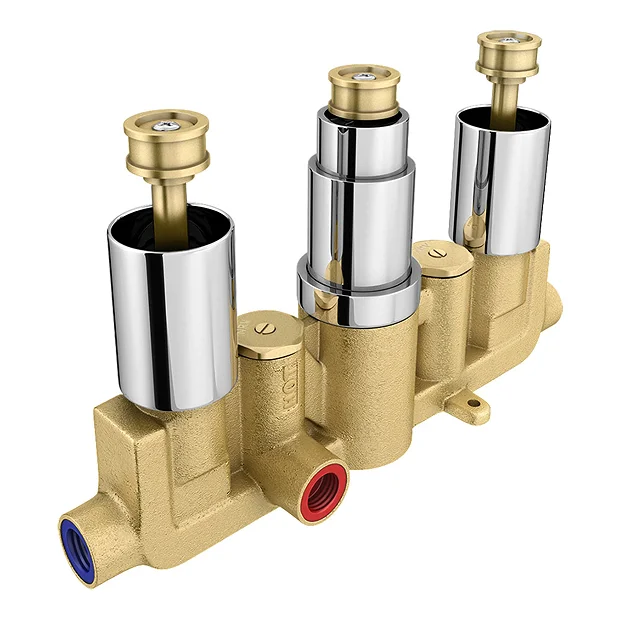

(1) Summit Concealed Thermostatic Triple Shower Valve
(1) Milan Concealed Wall Outlet Elbow with Shower Handset
(1) Milan Ultra Thin Round Shower Head – 300x300mm
(1) Ceiling Mounted Shower Arm – 300mm

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
