Summit Concealed Thermostatic Triple Shower Valve

Summit Concealed Thermostatic Triple Shower Valve

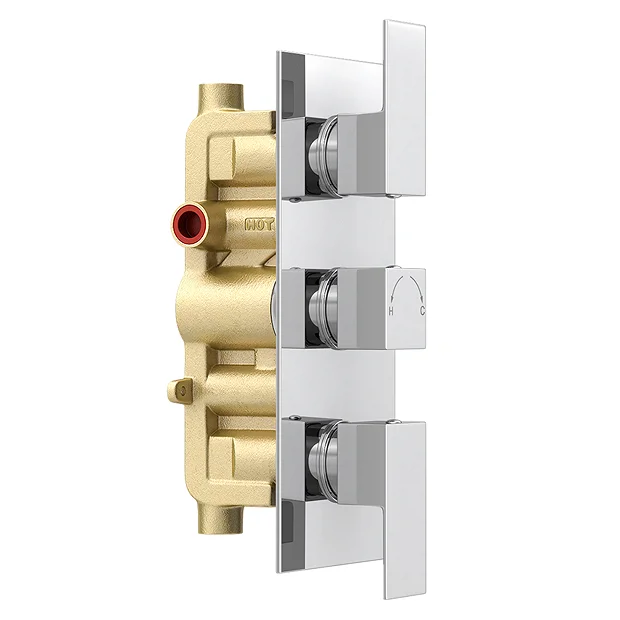

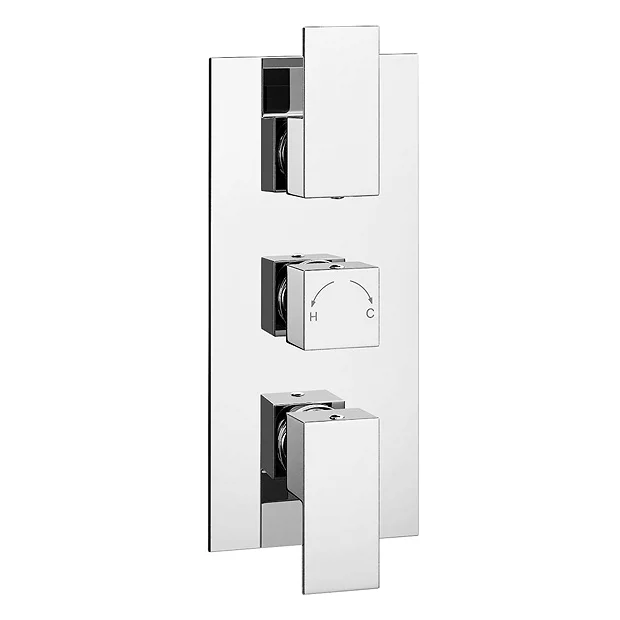

The wall mounted Summit modern concealed two outlet shower valve features minimalist square lever handles with a stylish matching rectangular backplate in chrome.

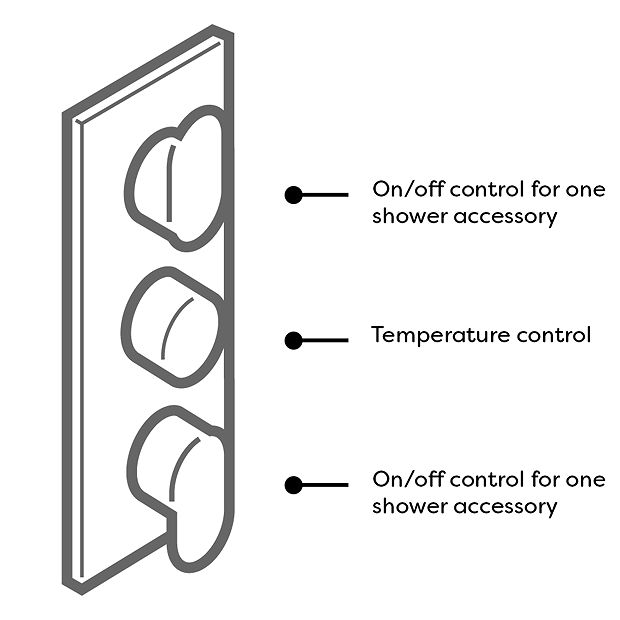

This stylish concealed thermostatic triple shower valve offers thermostatic showering via three easy-to-operate controls. Separate controls for temperature and flow.

Operates two outlets separately or simultaneously e.g. Fixed head / Slide rail kit, Fixed head / Body jets or Slide rail kit / Body jets.

Product Details

• Height: 265mm
• Width: 120mm
• Type: Concealed Shower Valve
• Style: Modern
• Colour/Finish: Polished Chrome

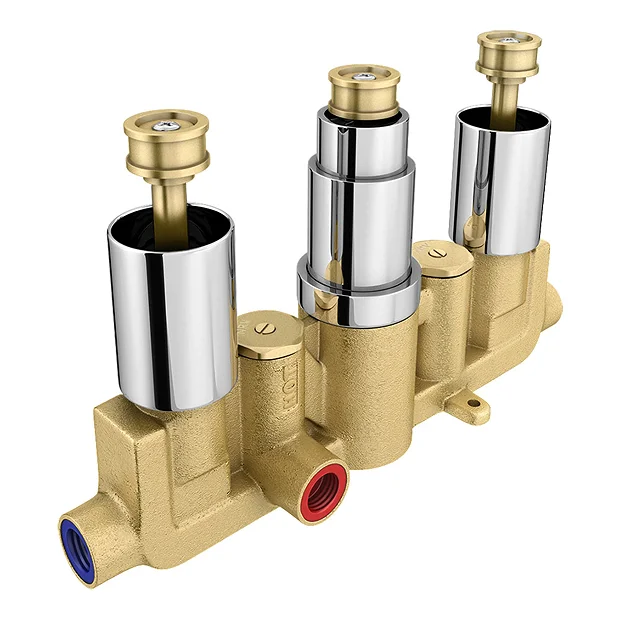

• Material: Brass Internals
• Thermostatically controlled
• Square Lever Handles
• Wall Mounted
• Water Pressure: 0.5 bar to 5 bar

• Operates two points separately or simultaneously – 2 Outlets
• Suitable for modern pressurised plumbing systems.

• Hot water temperature 55 to 85 Degrees
• With gravity fed systems a pump will be required, we recommend a universal or negative head pump

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

All measurements are approximate

Product images are for illustrative purposes only

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
