Orion Square Dual Concealed Thermostatic Shower Valve – Chrome

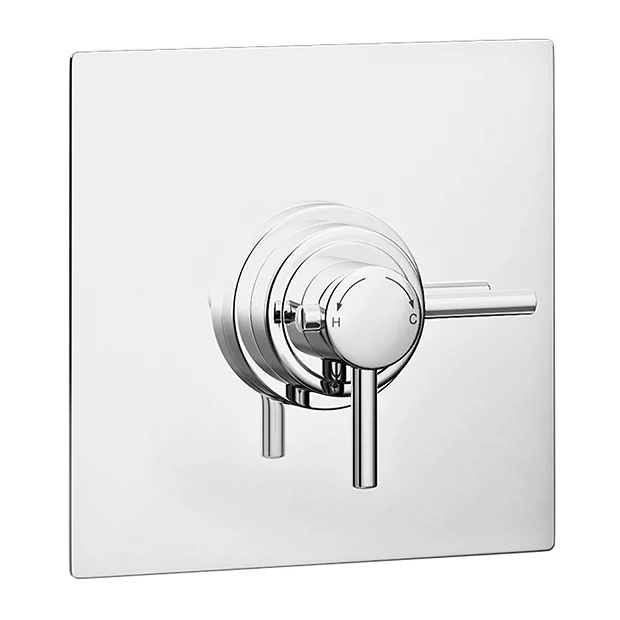

Orion Dual Concealed or Exposed Thermostatic Shower Valve with Square Back Plate – Chrome


The minimalist Orion concealed thermostatic shower valve with square back plate offers thermostatic showering with two easy to operate controls, one operates flow control whilst the other allows temperature selection.

To be used with a fixed head or slide rail kit. This valve has the added safety benefit of a built in anti-scald device should the cold water supply fail. The Orion Dual concealed thermostatic shower valve adds a touch of sophistication and style in any bathroom.

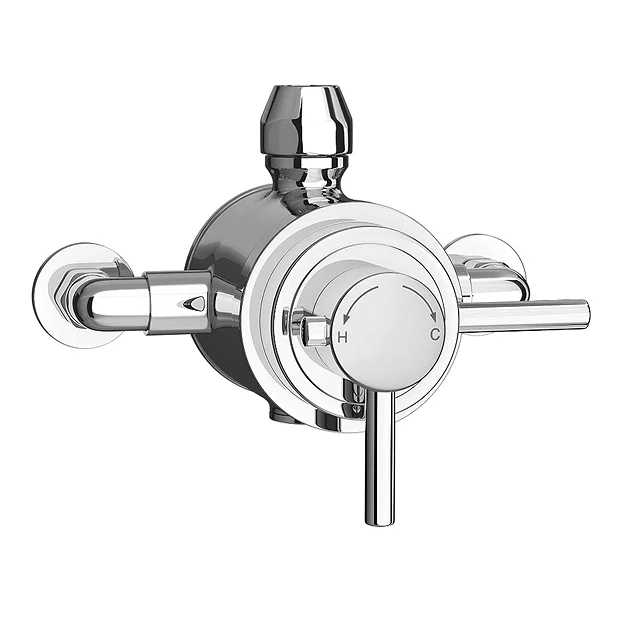

*Valve can be installed either concealed or exposed.

Product Details

• Height: 181mm
• Width: 181mm
• Type: Dual Concealed Shower Valve
• Handle Type: Lever
• Style: Modern
• Colour/Finish: Chrome
• Material: Solid brass
• Operates a single shower accessory – 1 Outlet

• Wall Mounted
• Square Back Plate
• Smooth Operation with Quality Components
• Water Pressure: 0.5 bar to 5 bar

• Anti-scald technology
• Suitable for modern pressurised plumbing systems.
• 150mm between pipe inlet centres
• Flow rate of twin concealed valve:
• 0.5 bar-8.5L/M
• 1 bar-12.5L/M
• 2 bar-16.5L/M
• 3 bar-19.5L/M

• Hot water temperature 55 to 85 Degrees
• With gravity fed systems a pump will be required, we recommend a universal or negative head pump


Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

All measurements are approximate

Product images are for illustrative purposes only

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
