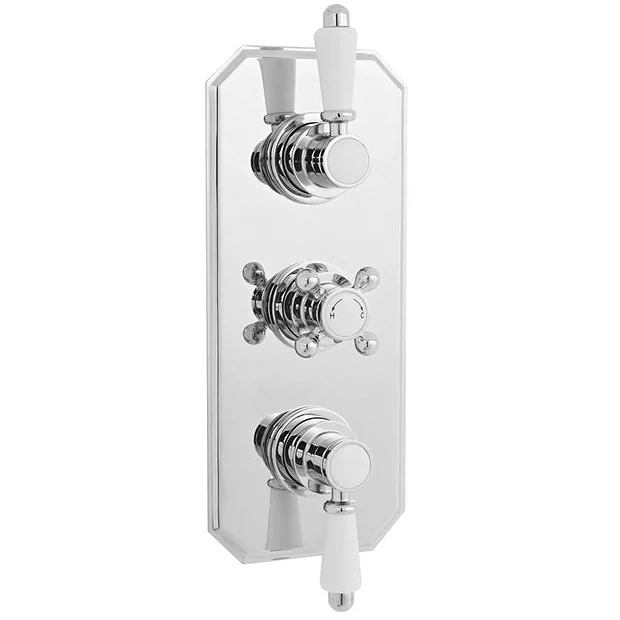

Nuie Edwardian Triple Concealed Thermostatic Shower Valve

Nuie Edwardian Triple Concealed Thermostatic Shower Valve – ITY317

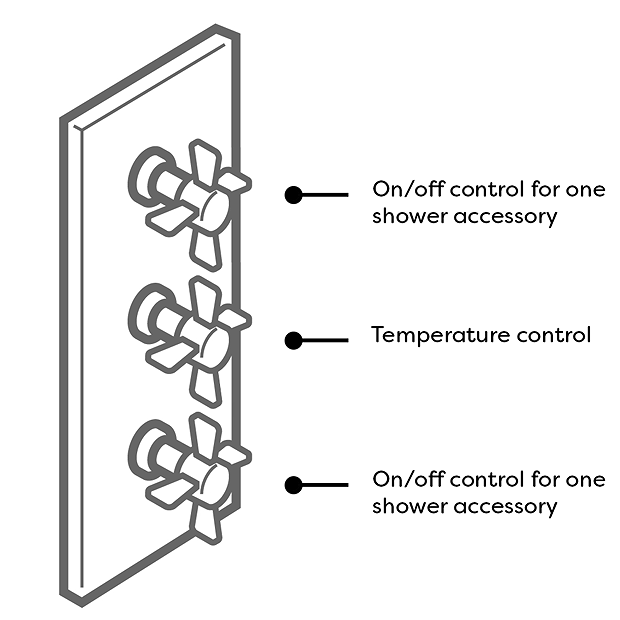

The Edwardian triple concealed thermostatic shower valve brings substantial elegance to the modern bathroom. This concealed triple shower valve offers thermostatic showering via three easy-to-operate controls. Operates two shower accessories separately or simultaneously – Fixed head / Slide rail kit, Fixed head / Body jets or Slide rail kit / Body jets.

Suitable for all types of plumbing installation this shower valve has the added safety benefit of a built in anti scald device should the cold water supply fail. Manufactured using high quality chrome and brass, our range of Edwardian shower valves will look outstanding in any shower enclosure.

Product Details

• Height – 280mm
• Width – 120mm
• Depth – 136mm
• Type – Concealed Thermostatic Shower Valve
• Product Code – ITY317
• Colour/Finish – Polished Chrome
• Manufactured from high quality brass & ABS

• Classic lever and cross-head handles
• Can be fitted vertically or horizontally
• Accurate flow control
• Thermostatic control to +/- 2°C- even if the water pressure fluctuates.
• Full thermal protection to prevent scalding in the event of hot or cold water shut off.
• In the event of hot or cold water failure, the valve will shut down within 1.5 seconds.
• The patented cartridge is highly resistant to calcium build up – even in hard water areas.
• Our valves are suitable for use with all systems: gravity fed, pumped, unvented high pressure or fully modulated combi-boilers.
• Excellent flow rates – even at low pressure.
• Our valves can deliver 5.5 litres per minute at 0.1 bar pressure.
• The cartridge is fully reversible, meaning if hot and cold supplies are the wrong way round, it doesn’t need re-plumbing.
• Simply remove the cartridge, turn 180 degrees and replace.
• Compliance – BS EN1111 & BS EN1287
• Made in Britain

TMV2 & TMV3 Approved

WRAS Approved Product

Guarantee – 5 Year
