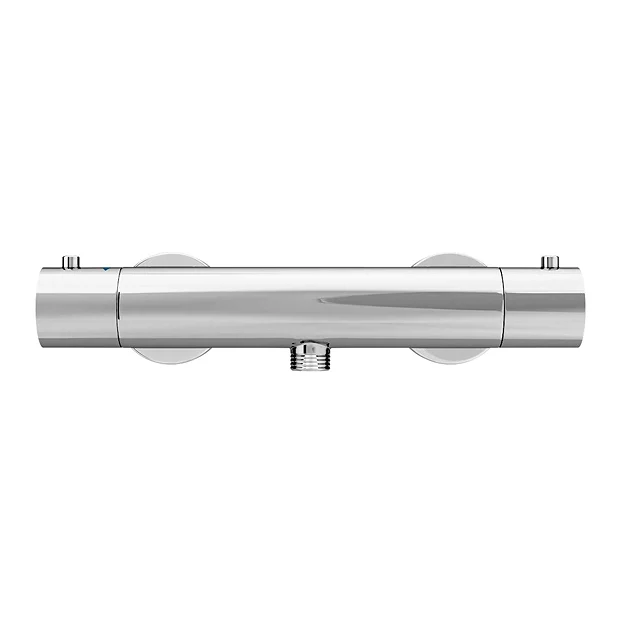

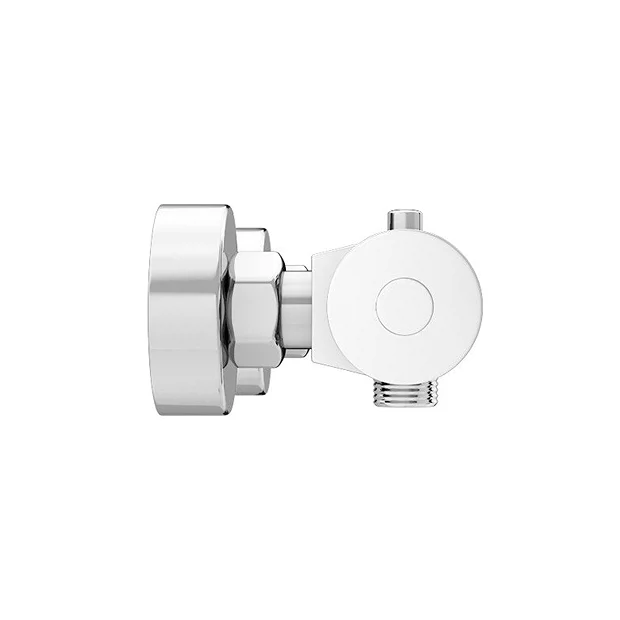

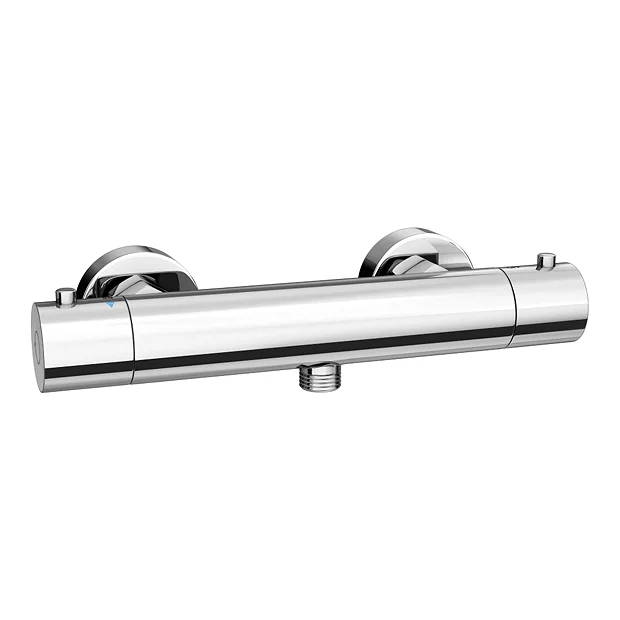

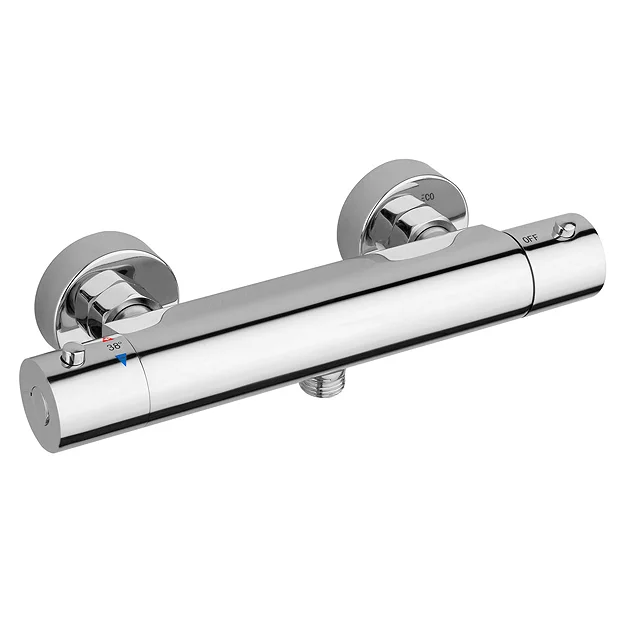

Monza Cool Touch Shower Bar Valve

Monza Modern Cool Touch Shower Bar Valve

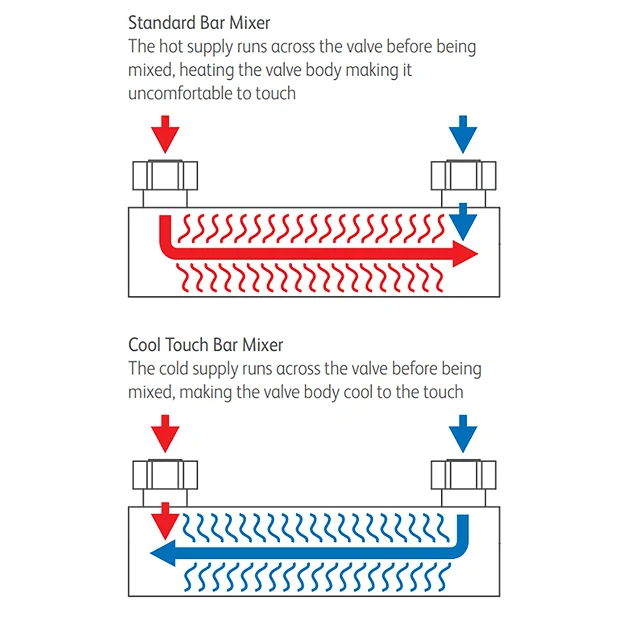

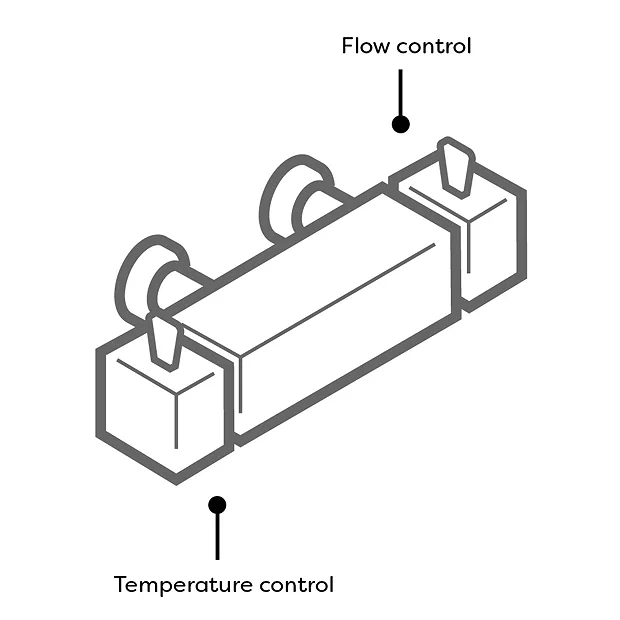

The stylish Monza ‘Cool Touch’ thermostatic bar valve, designed to provide safe showering for all the family. This stunning minimalist chrome bar valve has separate controls for temperature and flow. Cold water is circulated around the bar valve itself so that it is cool to the touch. For use with one shower accessory i.e. Slide rail kit.

Product Details

• Width: 297mm
• Depth: 71mm
• Height: 40mm
• Colour/Finish: Polished Chrome
• Material: Brass Internals
• Water Pressure: MP – 0.5 bar pressure minimum
• Wall Mounted
• Thermostatic: anti-scald protection
• Bottom outlet: suitable for use with a slide rail kit (not included).
• 150mm between pipe inlet centres
• Outlet: 15 mm (1/2″ BSP)
• Hot water temperature 55 to 85 Degrees
• With gravity fed systems a pump will be required, we recommend a universal or negative head pump

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

All measurements are approximate

Product images are for illustrative purposes only

Gravity Fed Systems:
If you live in an older property, there’s a good chance you have a low-pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
