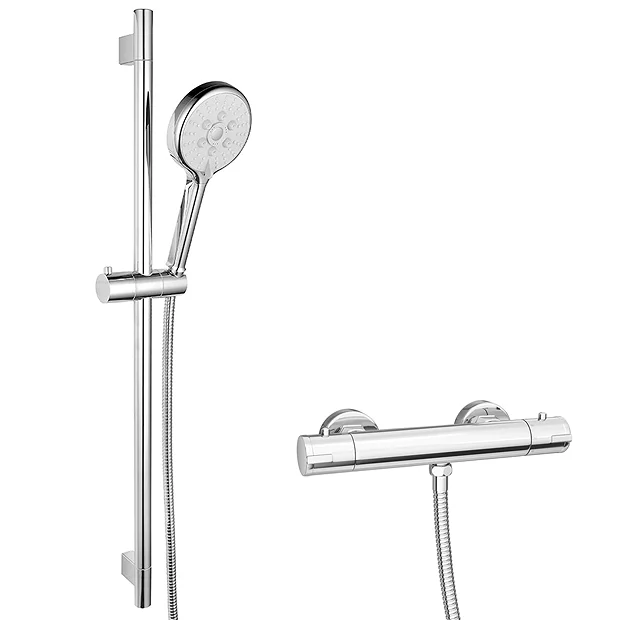

Monza Bar Shower Package With Valve + Slider Rail Kit

Monza Bar Shower Package with Valve + Slide Rail Kit with 120mm 3-Spray Hand Shower

The Monza Shower Package features a sleek thermostatic bar shower valve with two simple to use controls – one for flow and one for temperature. The shower mixer bar is constructed from solid brass with a chrome finish.

Supplied with a stylish Monza slide rail kit – kit includes a 3-spray hand shower and stainless steel hose. The stunning slide rail kit is designed and manufactured using the finest methods and materials to ensure a high quality product. With it’s clean lines the Monza shower will naturally blend in to and compliment any modern bathroom.

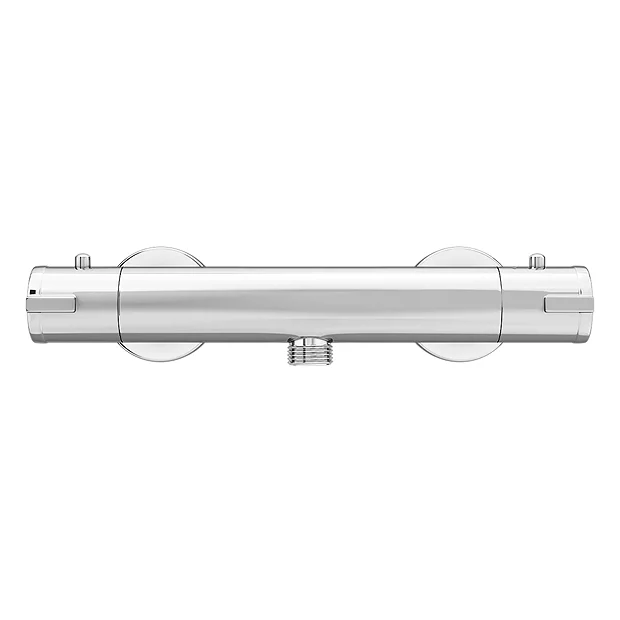

Bar Valve Details

• Width: 270mm
• Depth: 79mm
• Height: 40mm
• Style: Modern
• Range: Bar Showers
• Handles: Round
• Colour/Finish: Polished Chrome
• Material: Solid Brass Internals
• Bottom Outlet
• Thermostatically controlled
• Built-in anti-scald device

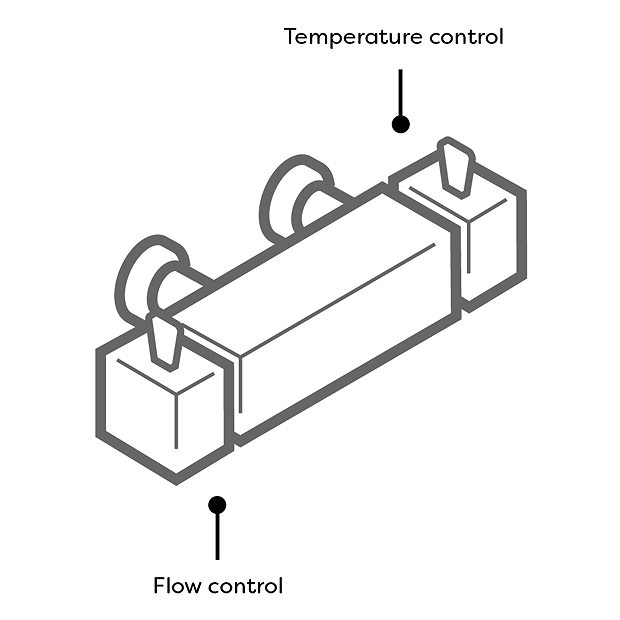

• Separate controls for temperature and flow
• Easy installation
• Factory pre-set temperature 38°
• Recommended Water Pressure: 0.5 bar to 5 bar
• 150mm between pipe inlet centres
• Outlet: 15 mm (1/2″ BSP)
• Hot water temperature 55 to 85 Degrees
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.
• Should a pump be required we recommend a universal or negative head pump.
• Flow Rates:
• 0.5 bar – 8.2 L/M
• 1 bar – 12.3 L/M
• 2 bar – 17.9 L/M
• 3 bar – 22.1 L/M
• 4 bar – 25.6 L/M
• 5 bar – 28.6 L/M

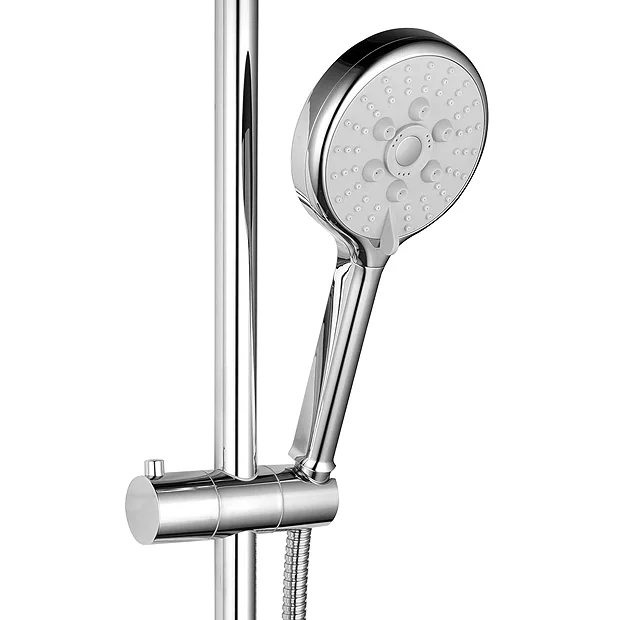

Slider Rail Kit Details

• Slide Rail Height: 822mm
• Rail Diameter: 25mm
• Handset Diameter: 118mm
• Highly polished finish
• Stainless steel hose
• 3 spray patterns
• Easy clean shower head
• Shower Hose Length: 1.5m
• Working Pressure: 0.5 Bar – 5 Bar

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

All measurements are approximate

Images are for illustrative purposes only.

Comprises

(1) Shower Bar Valve
(1) Monza Slide Rail Kit with 120mm 3-Spray Handshower

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
