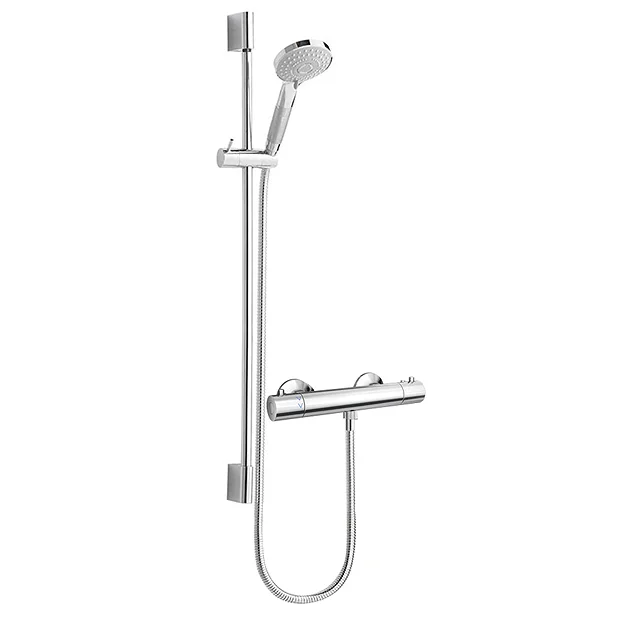

Modern Cool Touch Shower Bar Valve + Slider Rail Kit

Modern Cool Touch Shower Bar Valve + Slider Rail Kit Inc. Multi-Function Handset

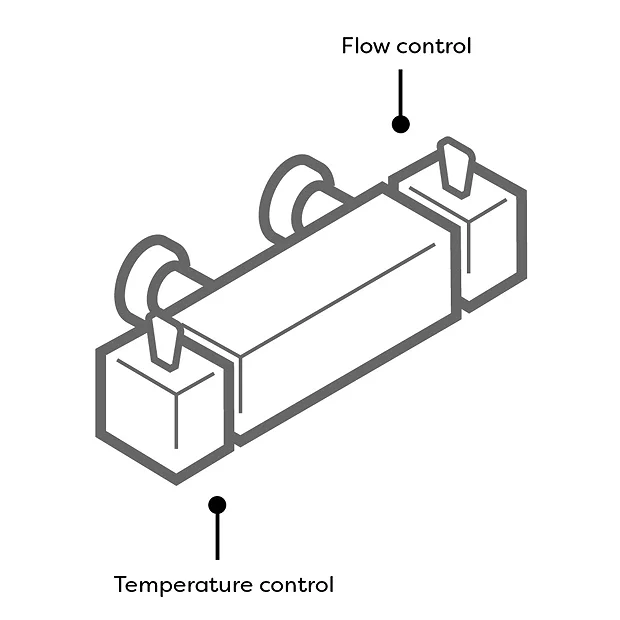

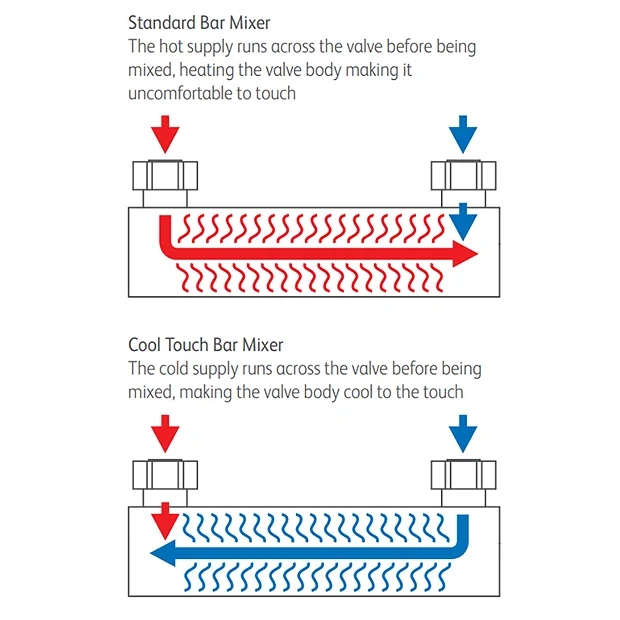

The stylish ‘Cool Touch’ thermostatic bar valve with slider rail kit, designed to provide safe showering for all the family. This stunning exposed minimalist chrome bar valve has separate controls for temperature and flow. Cold water is circulated around the bar valve itself so that it is cool to the touch. Bar valve comes with a quality slimline slide rail kit with multi-function handset featuring a sleek, modern slide rail with a three spray multi-function handset.

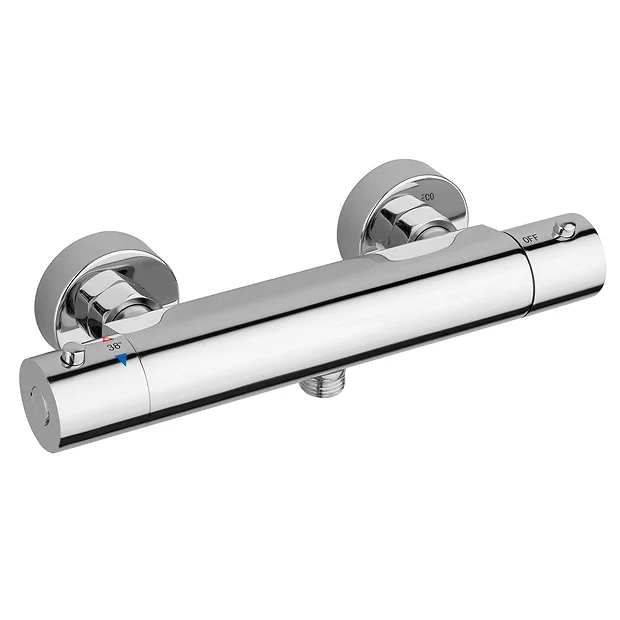

Shower Bar Valve Details

• Width: 297mm
• Depth: 71mm
• Height: 40mm
• Colour/Finish: Polished Chrome
• Material: Brass Internals
• Water Pressure: MP – 0.5 bar pressure minimum
• Wall Mounted
• Thermostatic: anti-scald protection
• Bottom outlet: suitable for use with a slide rail kit (not included).
• 150mm between pipe inlet centres
• Outlet: 15 mm (1/2″ BSP)
• Hot water temperature 55 to 85 Degrees
• Shower valve will not work efficiently on a gravity fed tank system unless a booster pump is installed.
• Should a pump be required we recommend a universal or negative head pump.

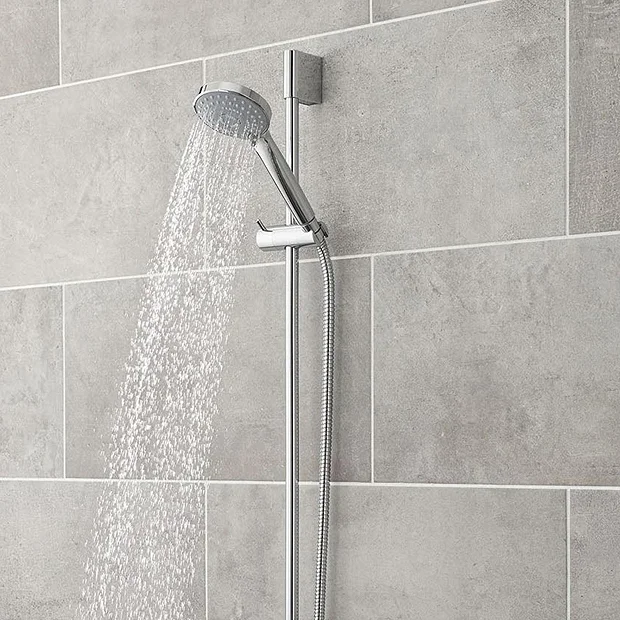

Slide Rail Details

• Height: 830mm
• Depth: 56mm
• Brand: Hudson Reed
• Colour/Finish: Polished Chrome
• Product Type: Shower Kit
• Multi-function handset
• 1.5m shower flex chrome plated brass
• Slider rail chrome plated brass
• Handset chrome plated ABS
• Suitable for all plumbing systems
• Requires a minimum of 1 bar pressure for best performance
• Multi Function shower heads have three settings for a choice of showering experiences
• Soak: The classic shower jet
• Champagne: A gentle spray
• Massage: A muscle relaxing stimulating jet

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Images are for illustrative purpose

All measurements are approximate

Comprises

(1) Cool Touch Shower Bar Valve
(1) 1.5m shower flex chrome plated brass
(1) Slider rail chrome plated brass
(1) Handset chrome plated ABS
(1) Outlet elbow chrome plated brass

Gravity Fed Systems:
If you live in an older property, there’s a good chance you have a low-pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
