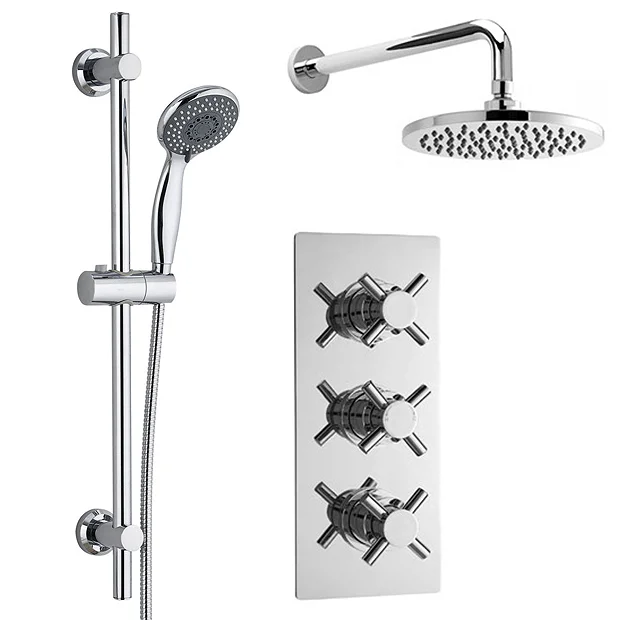

Minimalist Concealed Shower Valve W/ Slide Rail Kit & Wall Mounted Fixed Head

Minimalist Concealed Shower Valve with Slide Rail Kit & Wall Mounted Fixed Head – Chrome

Product Details

Minimalist Round Fixed Shower Head and Shower Arm – Chrome

• Dimensions: 200mm diameter
• Shower arm length – 345mm
• High Quality Design
• Chrome Finish
• We recommend a minimum pressure of 0.1 bar for best performance

Modern Slide Rail Shower Kit – Chrome

• Slide rail Dimensions – height 70cm, projection 8.5cm, width 3.5cm
• Shower handset – height 22cm
• Shower flex – 140cm
• Highly polished finish
• Chrome plated solid brass
• Contemporary style
• LP1 – 0.5 bar pressure minimum
• Rust resistant hose
• Easy clean multi-function handset
• Supplied with round outlet elbow.

• Please note – Certain parts are chrome plated plastic, not metal. The only parts that are not plastic are the rail and the hose.

Series 1 Triple Concealed Thermostatic Shower Valve – Chrome

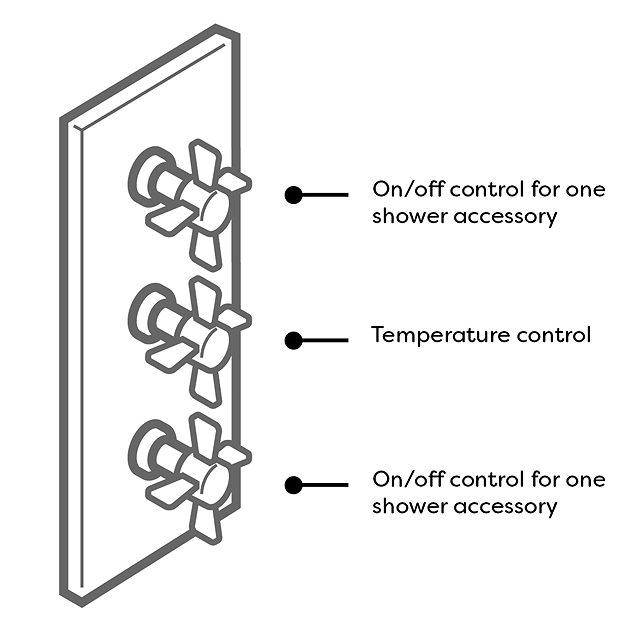

• Separate controls for temperature and flow.
• Crosshead handles
• Operates two shower accessories separately or simultaneously
• Concealed Thermostatic Shower Valve
• Offers thermostatic showering via three easy-to-operate controls.
• Suitable for all types of plumbing installation
• Finish – Polished Chrome
• Thermostatically controlled
• Built in anti-scald device
• Suitable for water systems between 0.1 and 4 bar pressure
• For use with combi boilers & gravity fed systems
• Suitable for unvented mains pressure systems
• Manufactured from high quality brass & ABS

• TMV2 approved

5 Year Guarantee against Manufacturing Defects

Flow Rates

0.1 Bar – 5.5 l/m
0.5 Bar – 12 l/m
1.0 Bar – 18 l/m
2.0 Bar – 25 l/m
3.0 Bar – 31 l/m
