Milan Square Shower Package With Concealed Valve + Head

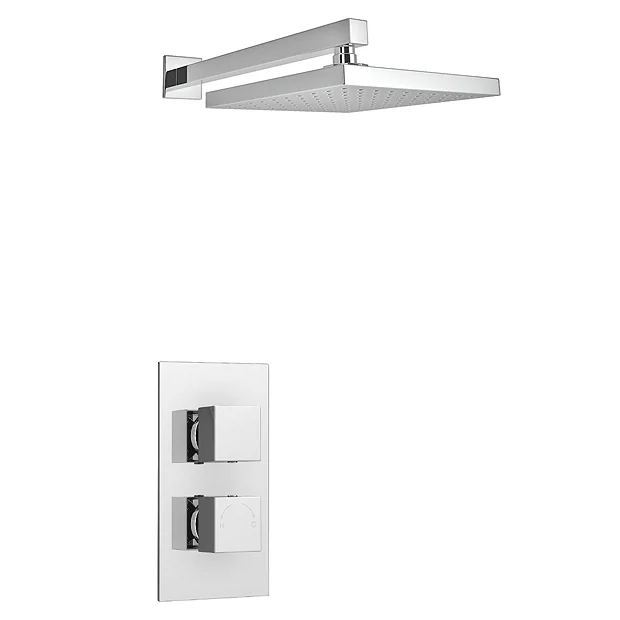

Milan Concealed Shower Valve with Wall Mounted Fixed Square Head – Chrome

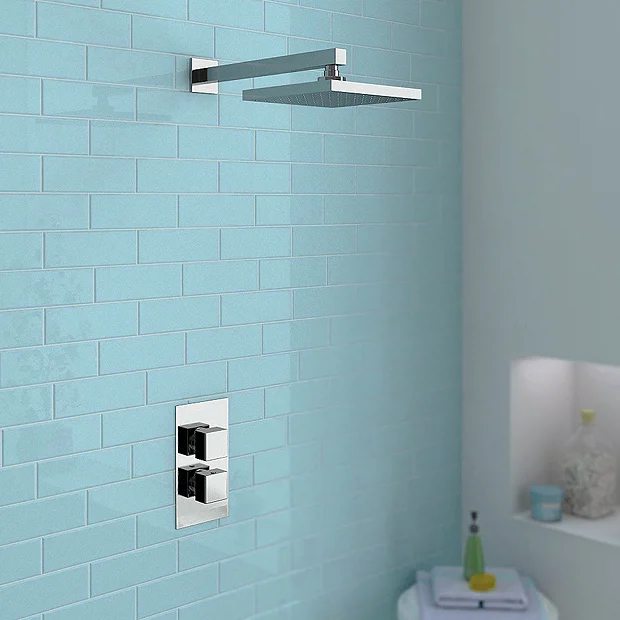

This Shower Mixer from Milan will bring a highly contemporary, minimalist look to your bathroom. Its neatly concealed valve means that only the distinctive square shower head and sleek chrome control panel are on display. The long reach of the head creates a luxurious, rainfall style experience. This combines with easy to use controls for temperature and flow to make showering truly glorious!

Product Details

• Style: Modern
• Colour/Finish: Chrome Plated
• Valve Handles: Square
• Thermostatically controlled
• Rectangular Faceplate
• Adjustable Square shower head complete with shower arm
• Shower head chrome plated plastic, not metal.
• Shower head dimensions: 200 x 200mm
• Shower arm length: 345mm
• Installation of the arm requires rear access behind the wall

• Shower valve dimensions: H215 x W120mm

• Shower valve can be fitted vertically or horizontally
• Water Pressure: 0.5 bar to 5 bar

• Suitable for modern pressurised plumbing systems.

• Hot water temperature 55 to 85 Degrees
• Shower valve will not work efficiently on a gravity fed tank system, unless a correct booster pump is installed.
• Should a pump be required we recommend a universal or negative head pump.

• Flow Rates:
• 0.5 bar – 9.6 L/M
• 1 bar – 14.1 L/M
• 2 bar – 20.5 L/M
• 3 bar – 24.8 L/M
• 4 bar – 28.3 L/M
• 5 bar – 32 L/M


Pictures for illustrative purposes only.

All measurements are approximate

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Shower head and arm guaranteed for 2 years.

Comprises

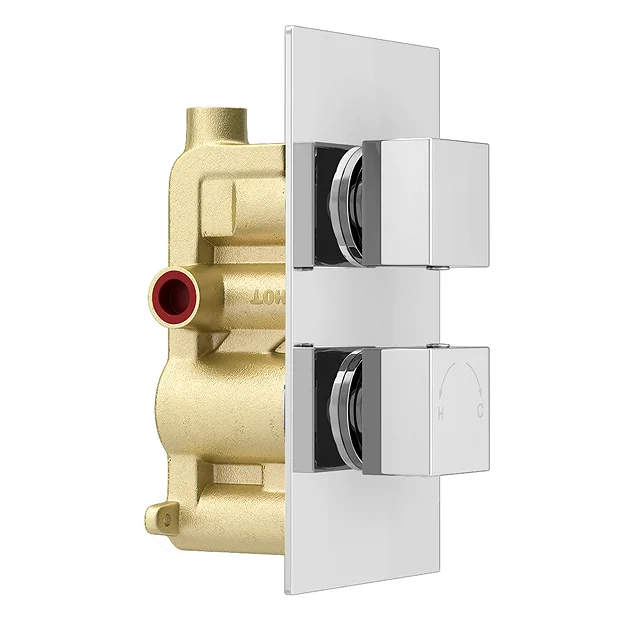

(1) Twin Square Concealed Shower Valve
(1) 200 x 200mm Square Head
(1) Square Shower Arm

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
