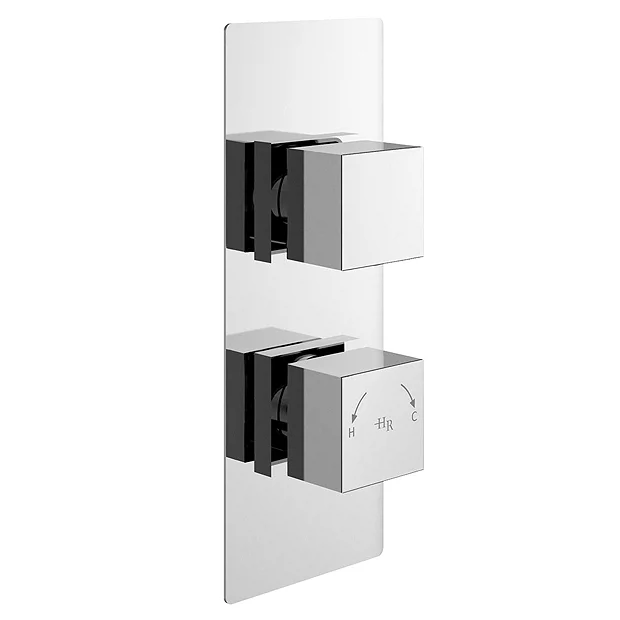

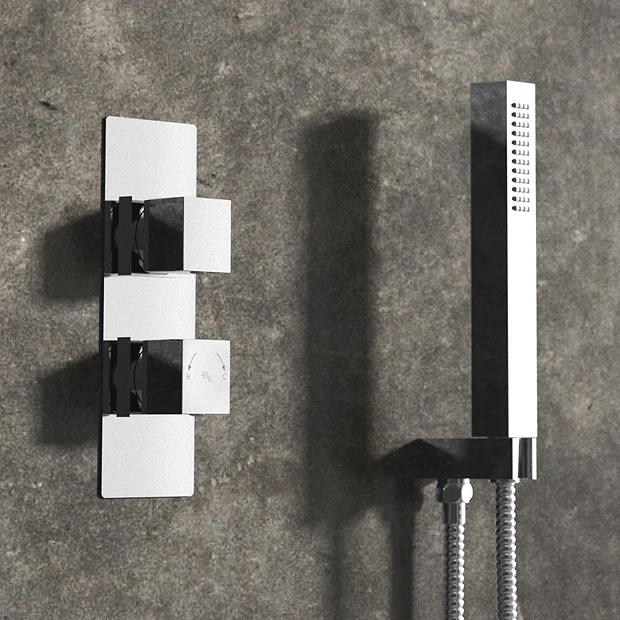

Hudson Reed Square Twin Concealed Thermostatic Shower Valve With Diverter

Hudson Reed Square Twin Concealed Thermostatic Shower Valve with Diverter – SQRTW02

The Hudson Reed Square Twin Concealed Thermostatic Shower Valve offers thermostatic showering via two easy-to-operate controls. Suitable for all types of plumbing installation this shower valve has the added safety benefit of a built in anti scald device should the cold water supply fail. Seperate controls for temperature and flow.

Operates two shower accessories separately or simultaneously and diverts to a third option: fixed head & slide rail kit, fixed head & body jets or slide rail kit & body jets with option to divert to free flow bath filler.

Product Details

• Height: 215mm
• Width: 80mm
• Depth: 136mm
• Brand: Hudson Reed
• Colour: Polished Chrome
• Material: Brass / ABS
• Two Outlet
• Valve Handle: Square Handle
• High quality internal brassware for long life
• Patented Valquest cartridge making for easy installation and maintenance
• Accurate flow control
• Full thermostatic protection to prevent scalding in the event of hot or cold water shut off
• Excellent flow rates – even at low pressure
• Accurate flow control
• In the event of hot or cold water failure the valve will shut down as per the relevant standard
• The patented cartridge is highly resistant to calcium build up – even in hard water areas
• Pipe Size: 15 mm & 22 mm
• Operating Pressure: 0.5 bar

Guarantee: 20 Year

Flow Rates

0.5 Bar – 13 l/m
1.0 Bar – 17 l/m
2.0 Bar – 24 l/m
3.0 Bar – 27 l/m
