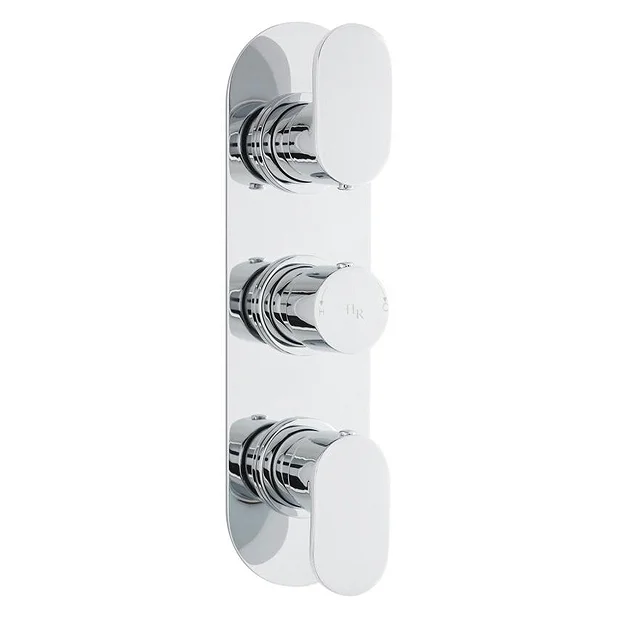

Hudson Reed Reign Triple Concealed Thermostatic Shower Valve With Diverter – Round Plate

Hudson Reed Reign Triple Concealed Thermostatic Shower Valve with Diverter – Round Plate – REI3417

The Reign Triple Concealed Thermostatic Shower Valve with Divertor from Hudson Reed. Suitable for all types of plumbing installation this shower valve has the added safety benefit of a built in anti scald device should the cold water supply fail.

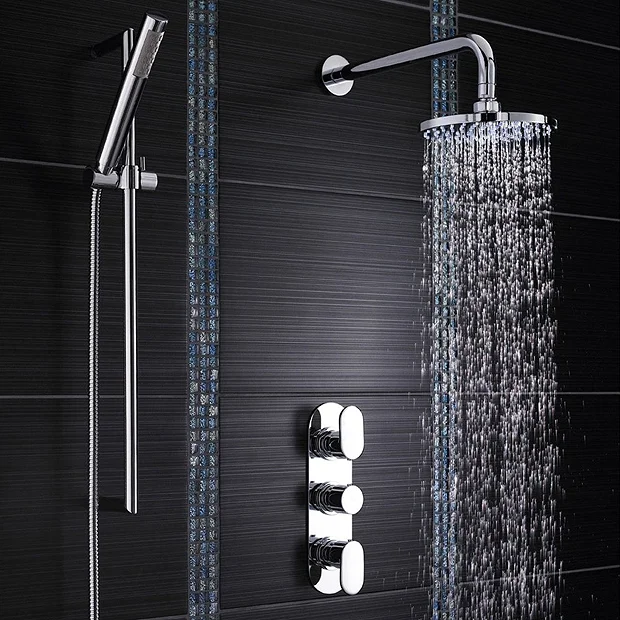

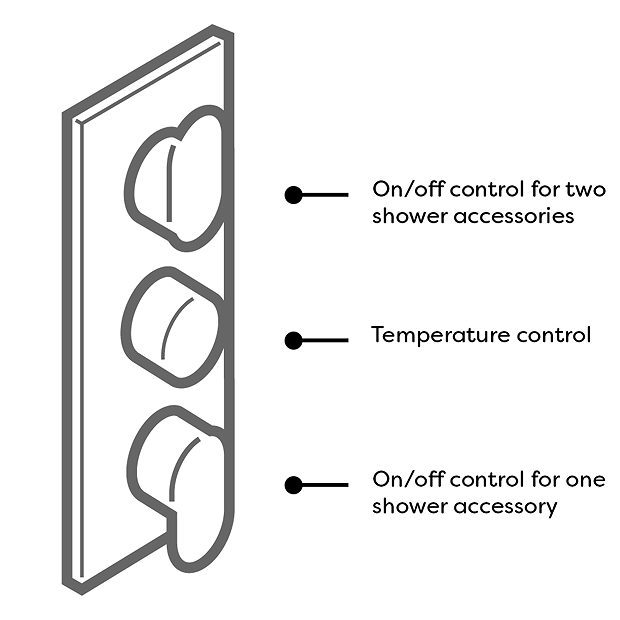

Operates two shower accessories separately or simultaneously and diverts to a third option: fixed head & slide rail kit, fixed head & body jets or slide rail kit & body jets with option to divert to free flow bath filler.

Product Details

• Height – 280mm
• Width – 95mm
• Depth – 136mm
• Pressure – MP – 0.5 Bar Minimum
• Range – Reign
• Colour/Finish – Polished Chrome
• Material – High quality brass & ABS
• Can be fitted vertically or horizontally.
• Accurate flow control.
• Thermostatic control to +/- 2°C even if the water pressure fluctuates.
• Full thermal protection to prevent scalding in the event of hot or cold water shut off.
• In the event of hot or cold water failure, the valve will shut down as per the relevant standard.
• The patented cartridge is highly resistant to calcium build up – even in hard water areas.
• Our valves are suitable for use with all systems: gravity fed, pumped, unvented high pressure or fully modulated combi-boilers.
• Excellent flow rates – even at low pressure.
• The cartridge is fully reversible, meaning if hot and cold supplies are the wrong way round, it doesn’t need re-plumbing.
• Simply remove the cartridge, turn 180 degrees and replace.

Made in Britain

Guarantee – 20 Year

Flow Rates

0.5 Bar – 13 l/m
1 Bar – 17 l/m
2 Bar – 24 l/m
3 Bar – 27 l/m
