Heritage – Ryde Single Control Exposed Mini Valve With Bottom Outlet – Chrome

Heritage – Ryde Single Control Exposed Mini Valve With Bottom Outlet – Chrome – SLC04

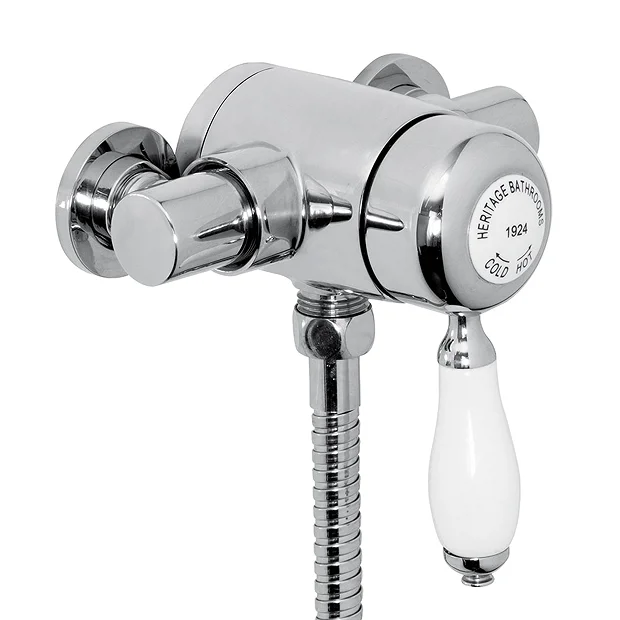

The luxury traditional Ryde single control exposed mini thermostatic shower valve with bottom outlet, manufactured from brass with a polished chrome finish, Heritage’s elegant range of shower valves are precision engineered to provide a luxury showering experience. The shower valves are thermostatic so the water stays a consistent temperature even if the water pressure fluctuates. Quality assured by a 5 year guarantee.

Product Details

• Projection – 115mm
• Width – 110-155mm (centres)
• Product Code: SLC04
• Finish: Chrome
• Product Type: Traditional
• Construction: Body is of brass construction
• Cartridge Type: Thermostatic Cartridge
• Supply: Suitable for all plumbing systems preferably balanced
• Inlet Connections: 15mm Compression Elbows
• Outlet Connections: G 1/2″
• Working Pressures: Min 0.1bar, Max 5.0bar
• Single control – Flow & temperature are controlled sequentially.
• Thermostatic cartridge maintains showering temperature to +/-1 by compensating for changes in the incoming water temperature & pressure providing a stable outlet temperature.
• Automatic shut off in the event of hot or cold water failure, thus reducing the risk of injury.
• Factory set to a minimum of 41ºC to eliminate the ability to select an unsafe temperature, this can be adjusted to suit user preference.
• Swivel inlet elbows with 110-155 centres, valves can be fed top, bottom or rear.
• Shower supplied as ‘Valve Only’
• Chrome plated to BS EN 248
• Manufactured to comply with WRAS


Suitable for use with a flexible kit and shower handset.

Guarantee – 5 years covering manufacturing faults.
