Heritage Gracechurch Twin Concealed Shower Valve With Two Outlet Diverter

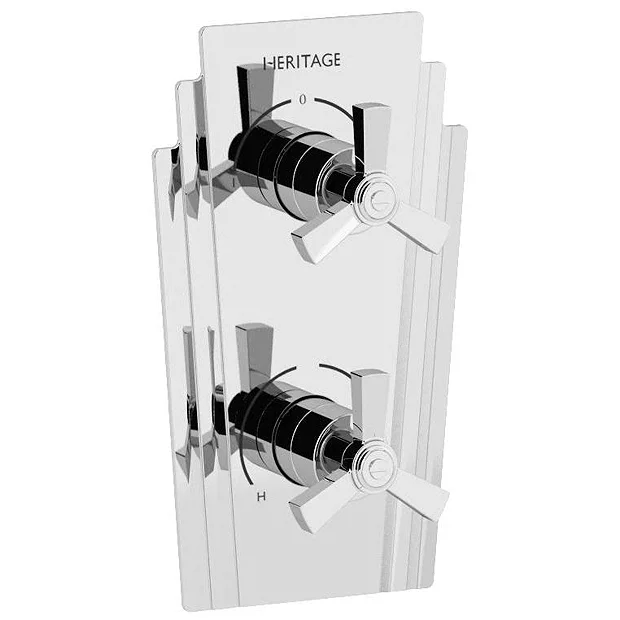

Heritage Gracechurch Twin Concealed Shower Valve with Two Outlet Diverter – SGRC02

The luxury traditional Gracechurch Twin Concealed Shower Valve with Two Outlet Diverter, manufactured from brass with a polished chrome finish, Heritage’s elegant range of shower valves are precision engineered to provide a luxury showering experience. The shower valves are thermostatic so the water stays a consistent temperature even if the water pressure fluctuates. Quality assured by a 5 year guarantee.

Product Details

• Product Code: SGRC02
• Finish: Chrome
• Product Type: Traditional
• Supply: Suitable for all plumbing systems
• Inlet Connections: 15mm Compression
• Working Pressures: Min 0.2bar, Max 5.0bar
• Chrome plated to BS EN 248
• Cavity Depth: 45-75mm
• Inlet Centres: 150mm
• Maximum Temperature: Pre-set to 42oC
• Requires rear access to service the filters
• Cartridge can be accessed from the front
• Thermostatic valve
• Wall mounted

5 Year guarantee covering manufacturing faults

Flow Rates

0.2 Bar – (Handset) 8.5 l/m
0.5 Bar – (Handset) 13.44 l/m
1.0 Bar – (Handset) 19 l/m
2.0 Bar – (Handset) 26.87 l/m
3.0 Bar – (Handset) 32.91 l/m
5.0 Bar – (Handset) 42.49 l/m
