Hansgrohe Ecostat E Square Complete Shower Set With Shower Slider Rail Kit

hansgrohe Ecostat E Square Complete Shower Set with Shower Slider Rail Kit

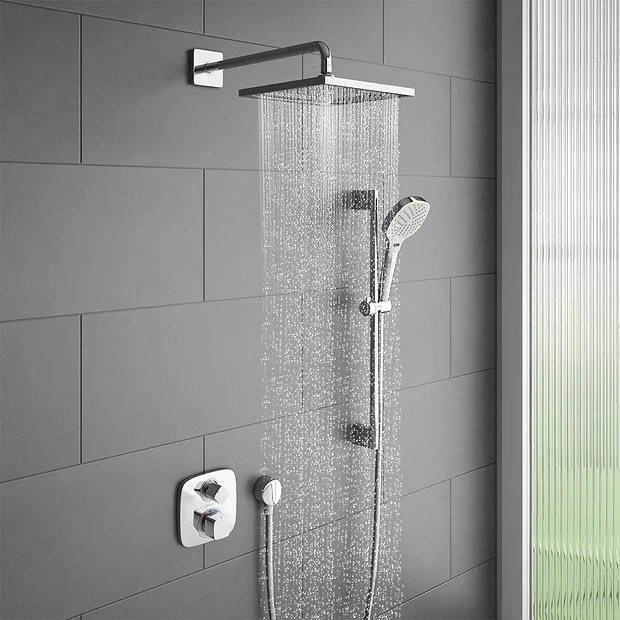

The hansgrohe Ecostat E Square Complete Shower Set with Shower Slider Rail Kit promises you showering indulgence on a grand scale. The Ecostat E Thermostat 2 Function Concealed Finish Set operates the fixed head and shower handset and features a thermostat cartridge with an adjustable temperature limit. The Crometta E 240 shower heads Rain spray is perfect for rinsing shampoo out of your hair while the QuickClean rub clean nubs loosens any limescale deposits making sure your hand shower looks beautiful, and stays working for longer. The Croma Select E Vario 3 Spray Shower Slider Rail Kit allows you to fix the shower head to the perfect height – whatever your size, or showering position. It features three spray functions for an energising, invigorating showering experience.

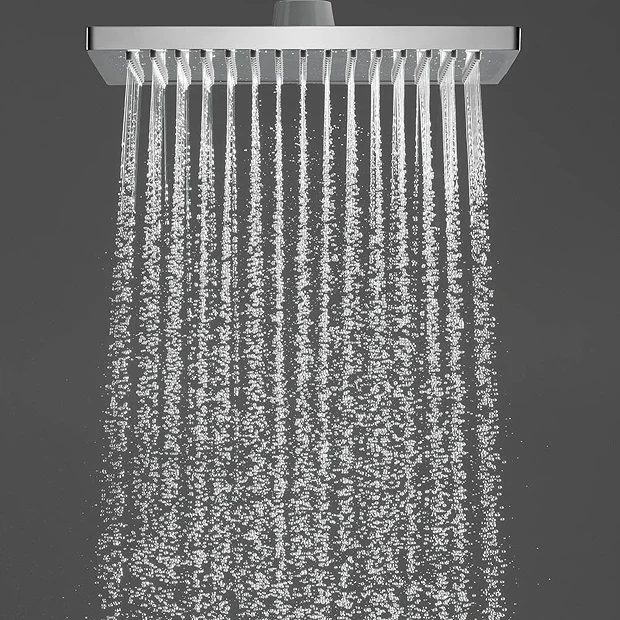

Fixed Head Details

• Shower Head Size: 240 x 240mm
• Spray Type: Rain
• Flow Rate Rain Spray (at 0.3 MPa): 18 l/min
• Fully chrome-plated spray disc
• Material Spray Disc: Plastic
• Connection thread G ½
• Connection dimension: DN15
• QuickClean – Remove limescale deposits easily by rubbing them off

Shower Arm Details

• Finish: Chrome
• Projection: 389mm
• Wall-mounted
• Installation Type: Exposed installation
• Connection thread R ½
• Connection dimension DN15

Outlet Elbow Details

• Finish: Chrome
• Connection thread ½”
• Hose connection with non-return valve and plastic angle
• For use with concealed installations

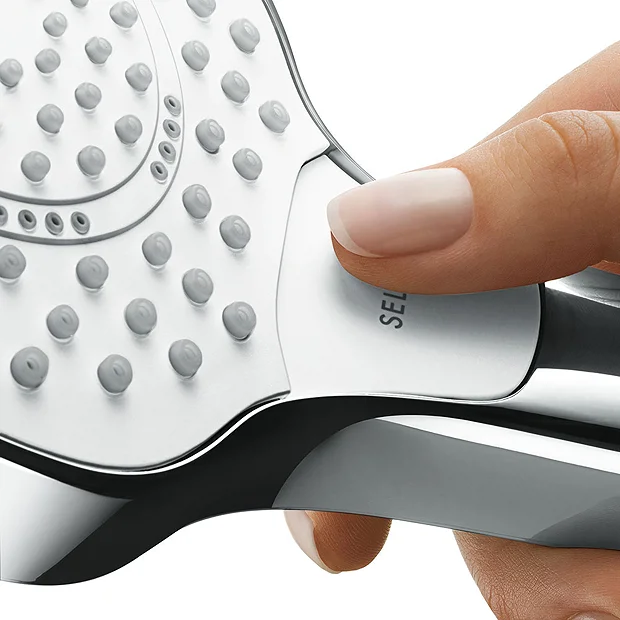

Shower Kit Details

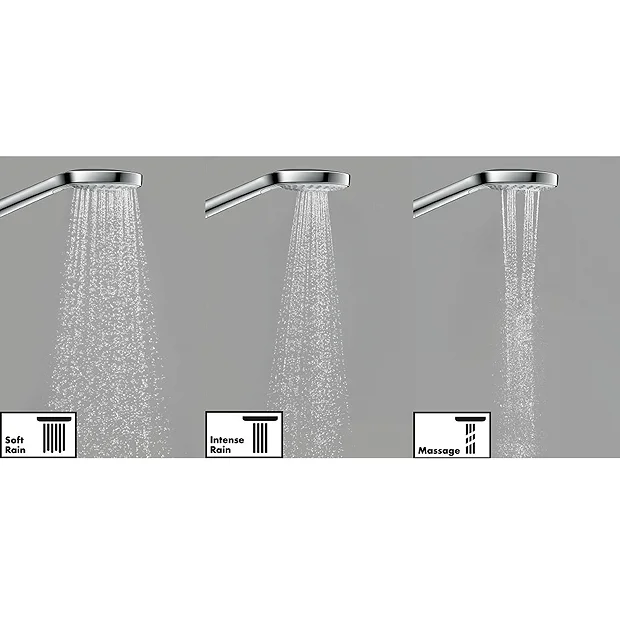

• Spray Pattern: Rain, IntenseRain, Turbo Rain
• Shower Head Size: 110mm
• Finish: White / Chrome
• Pivot connectors prevent hose from tangling
• Select button to comfortably switch between spray modes
• Chrome-plated plastic wall supports
• Slide inclination angle can be adjusted by 45°
• Fully chrome-plated shower slide
• 22mm width of shower bar
• Includes 65cm slider rail and 1.6m hose
• QuickClean – Remove limescale deposits easily by rubbing them off

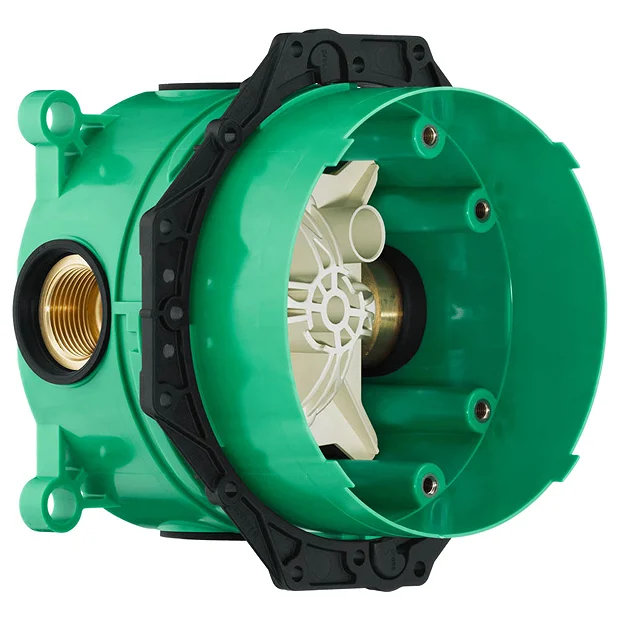

iBox Details

• Adjustable clamping collar
• G¾ connections; G1 connection possible with provided reductions
• Patented sound proofing
• Support points for spirit level
• Includes flush block
• Marking aid for plating
• Connection thread Rp ¾
• Rotationally-symmetrical installation
• Installation Depth: from 80 to 108mm
• WRAS 1304305
• WRAS 1503309
• Kiwa UK 1405706

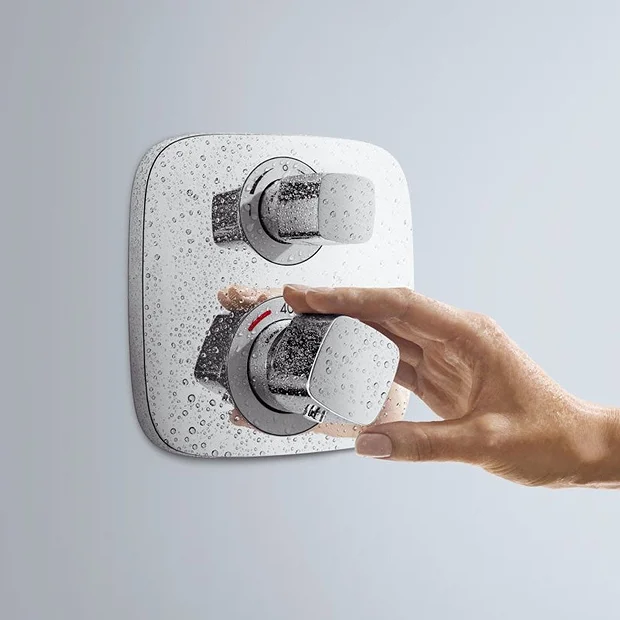

Finish Set Details

• 2 Outlets
• Thermostat Cartridge
• Shut-off / Diverter valve
• Safety Lock at 40°C
• Temperature limitation adjustable
• Recommended Operating Pressure: 1.0 Bar – 5.0 Bar

5 Year Guarantee

Comprises

(1) Crometta E 240 1 Spray Shower Head – 26726000
(1) Crometta E 240 389mm Shower Arm – 27446000
(1) FixFit Wall Outlet S without Non-Return Valve – 27453000
(1) Croma Select E Vario 3 Spray Shower Slider Rail Kit 65cm – 26582400
(1) iBox Universal Basic Set – 01800180
(1) Ecostat E Thermostat 2 Function Concealed Finish Set – 15708000
