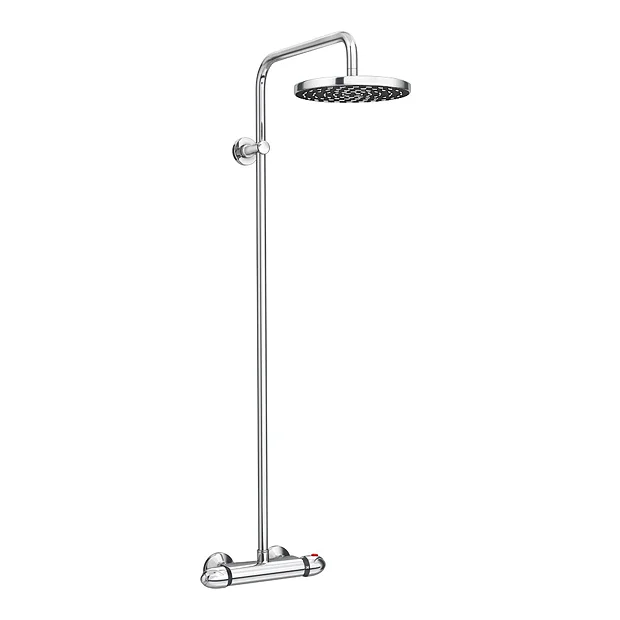

Drum Modern Round Thermostatic Shower Kit – Chrome

Drum Modern Round Thermostatic Shower Kit – Chrome

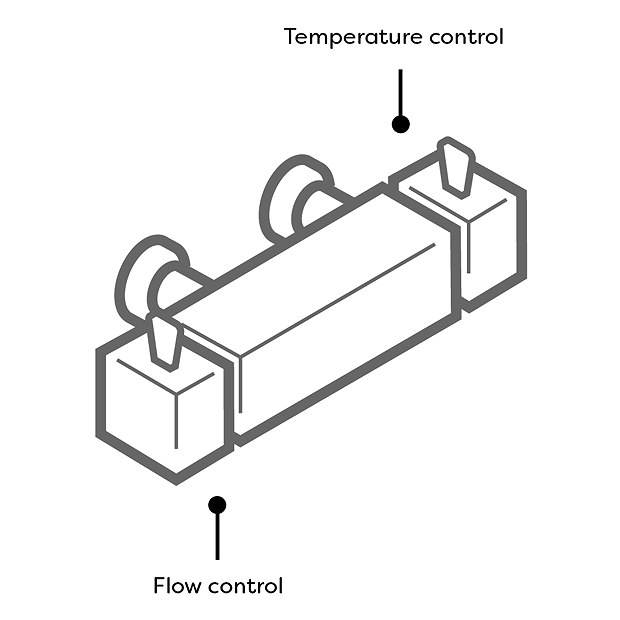

Drum Round Thermostatic Shower Set delivers a conventional feel to any bathroom. With its modern and understated design and finished in the highest quality ultra-shine chrome plating, it is a bathroom essential for any home. Offers thermostatic showering via two easy-to-operate controls for temperature and flow. This modern thermostatic exposed bar valve with riser kit will compliment any modern bathroom suite.

Product Details

• Height: 1020mm
• Width: 290mm
• Depth: 440mm
• Colour/Finish: Chrome
• Material: Brass; S/S
• Wall Mounted
• Outlets: 1
• 200mm round shower head adjustable up to 22 degrees
• Easy clean rubber jets
• 150mm between pipe inlet centres
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.
• Should a pump be required we recommend a universal or negative head pump.
• Working Pressure: 0.5 Bar – 5 Bar
• Flow Rates:
• 0.5 Bar – 8 l/min
• 1.0 Bar – 13 l/min
• 2.0 Bar – 18 l/min
• 3.0 Bar – 19.8 l/min
• Outlet Connection: 1/2″ BSP

All measurements are approximate

Images are for illustrative purposes only

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
