Cruze Triple Concealed Shower Valve With Fixed Shower Head + 4 Body Jets

Cruze Triple Concealed Shower Valve with Fixed Shower Head & 4 Body Jets

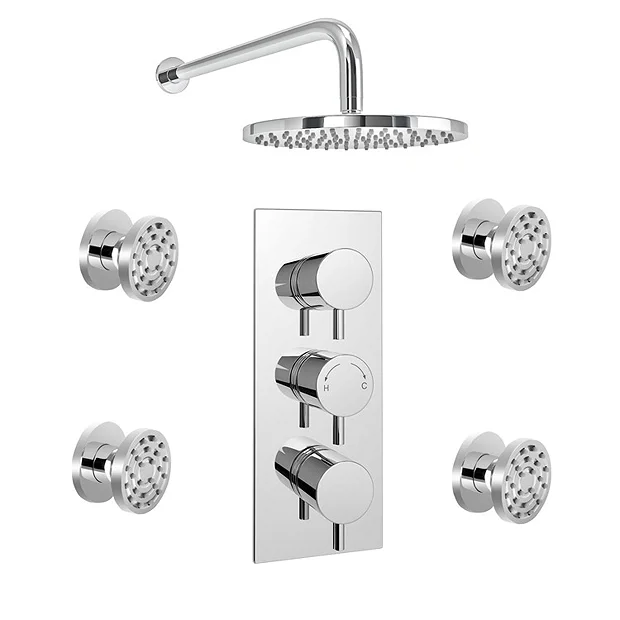

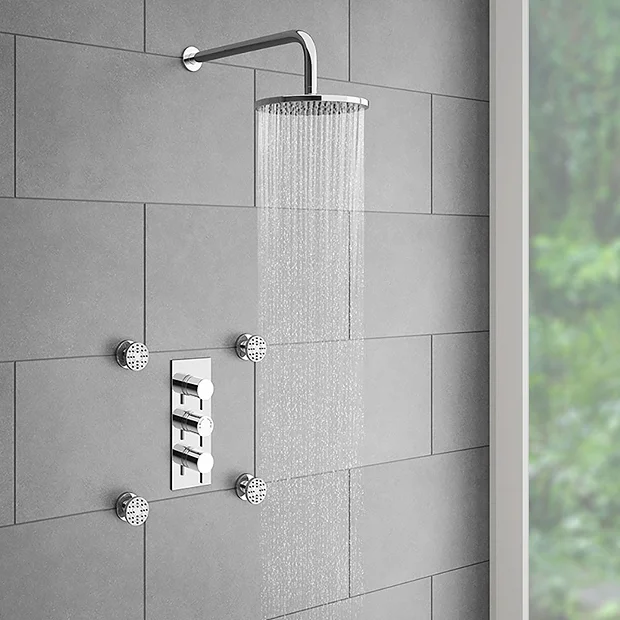

The stylish contemporary Cruze shower package, includes a triple concealed thermostatic shower valve, a 200mm round fixed shower head with wall mounted arm and 4 adjustable anti-limestone flat round body jets. Bring substantial elegance to the modern bathroom, the Cruze shower package offers thermostatic showering via three easy-to-operate controls. Separate controls for temperature and flow. Operates two shower accessories separately or simultaneously.

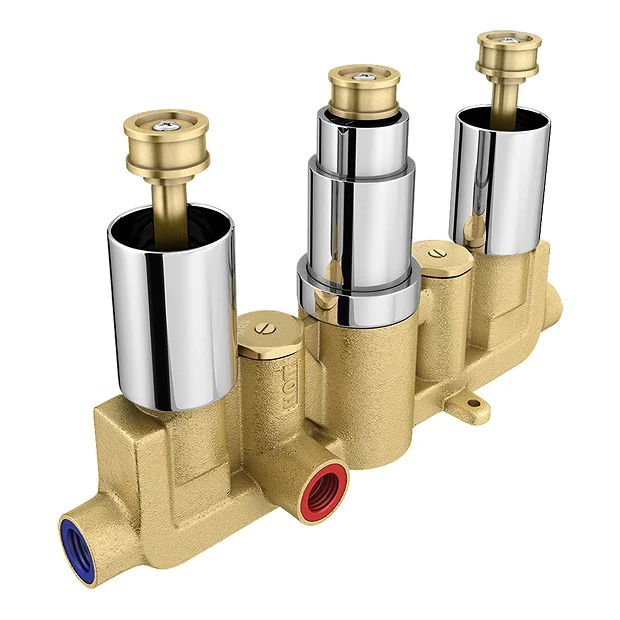

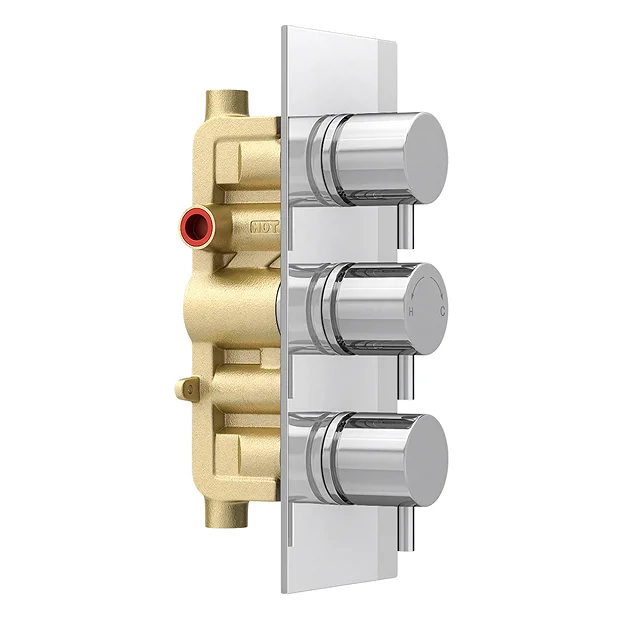

Shower Valve Details

• Width: 120mm
• Depth: 140mm
• Height: 265mm
• High Quality Design
• Finish: Polished Chrome
• Brass Internals
• Thermostatically controlled
• Valve Handles: Round
• Rectangular Faceplate
• Outlets: 2
• Style: Modern
• Operates two points separately or simultaneously
• Water Pressure: 0.5 bar to 5 bar
• Can be fitted vertically or horizontally
• Suitable for modern pressurised plumbing systems.
• Hot water temperature 55 to 85 Degrees
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.

• Should a pump be required we recommend a universal or negative head pump
• Flow Rates:
• 0.5 bar – 9.6 L/M
• 1 bar – 14.1 L/M
• 2 bar – 20.5 L/M
• 3 bar – 24.8 L/M
• 4 bar – 28.3 L/M
• 5 bar – 32 L/M

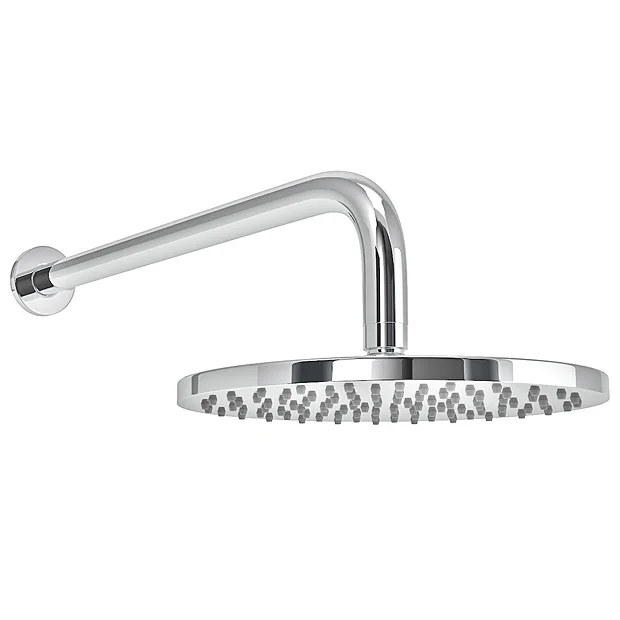

Shower Head Details

• Shower head dimensions: 200mm diameter
• Shower arm length: 345mm
• Style: Modern
• Colour/Finish: Chrome
• Water Pressure: 0.5 bar min to 3 bar max
• Supplied with swivel joint and wall mounted round arm.
• Shower head chrome plated plastic, not metal.
• Installation of the arm requires rear access behind the wall.

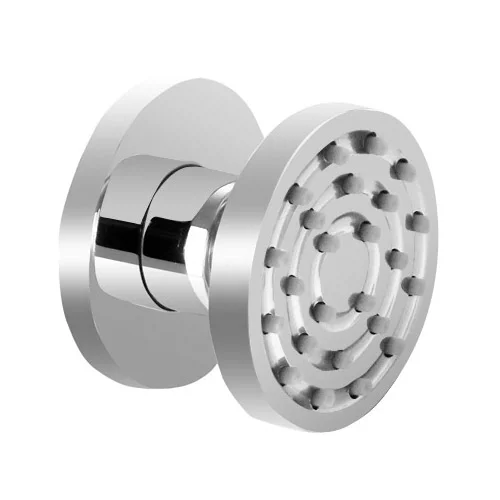

Body Jet Details

• Overall Size: D60 x W55 x H55mm approx
• Shroud ring: 55mm diameter
• Brass 1/2 inch BSP thread – 25mm long
• 24 rubber nozzles (12 functional)
• Colour/Finishes: Polished Chrome
• Material: Brass
• Product Type: Slim Round Body Jet
• Supplied with swivel joint
• Silicone nozzles mean that any limescale deposits can simply be rubbed away

All measurements are approximate

Images shown are for illustration purposes only

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Shower head and arm guaranteed for 2 years.

Comprises

(1) 200mm Round Head
(1) Round Shower Arm
(4) Slim Round Body Jet
(1) Triple Round Concealed Thermostatic Shower Valve

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
