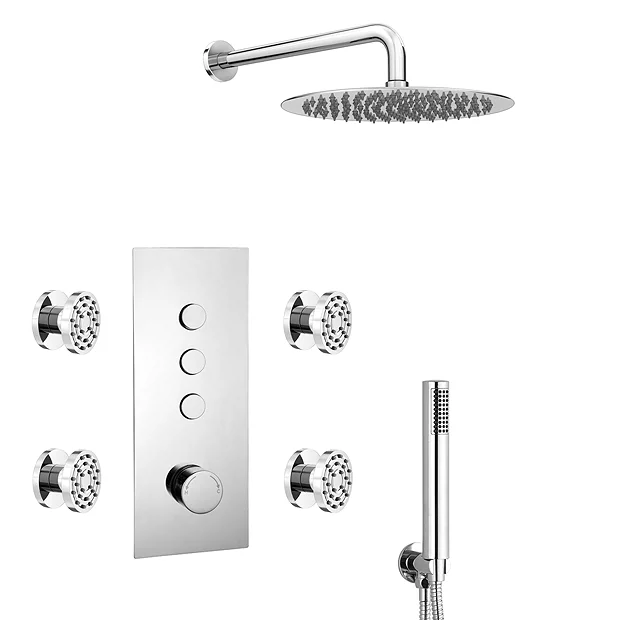

Cruze Round Push-Button Shower Valve Pack With Handset, 4 Body Jets + Shower Head

Cruze Round Push-Button Concealed Shower Valve Pack with 3 Outlets (Handset, 4 x Body Jets + Rainfall Shower Head)

This Cruze concealed push-button operated thermostatic valve pack with 3 outlets will compliment any modern bathroom suite, the round handle controls temperature whilst the on/off push-buttons provides instant start/stop activation. Operates three shower accessories that can be operated individually, or enjoy one, two or three simultaneously.

Shower Valve Details

• Height: 215mm
• Width: 120mm
• Style: Modern
• Colour/Finish: Chrome Plated
• Valve Handles: Round
• Brass Internals
• Select push button On/Off control for 3 outlets.
• Buttons provided: hand shower and overhead shower
• Thermostatically controlled
• Water Pressure: 0.5 bar to 5 bar
• Easy to use
• Rectangular Faceplate
• For use with 3 Outlets
• Bottom Knob controls temperature
• Instant start/stop activation.
• Suitable for modern pressurised plumbing systems.
• Outlets can be operated separately or simultaneously
• Hot water temperature 55 to 85 Degrees
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.
• Should a pump be required we recommend a universal or negative head pump.


Fixed Shower Head + Arm Details

• Head Diameter: 300mm
• Head Thickness/Profile: 3mm (excluding swivel joint)
• Shower Arm Length: 345mm
• Style: Modern
• Colour/Finish: Chrome Effect
• Type: Rainfall
• Head Material: Stainless Steel
• Arm Material: Brass
• Pressure requirement 0.5 bar minimum
• Inlet Connections: 1/2″ BSP
• Supplied with swivel joint
• Rub clean nozzles makes this item easy to clean and maintain
• Installation of the arm requires rear access behind the wall.


Shower Handset Details

• Depth: 66mm
• Height: 244mm
• Width: 50mm
• Manufactured To The Highest Standards
• Round Handset with Built in Outlet
• Suitable for all plumbing systems
• 1.5m Shower flex –  Brass / Chrome plated
• Outlet Elbow with Parking Bracket – Brass / Chrome plated
• Handset – ABS plastic / Chrome plated
• Rust resistant hose
• Highly polished finish
• Pencil handset holder
• Silicone nozzles mean that any lime scale deposits can simply be rubbed away

Body Jet Details

• Overall Size: D60 x W55 x H55mm approx
• Shroud ring: 55mm diameter
• Brass 1/2 inch BSP thread: 25mm long
• 24 rubber nozzles (12 functional)
• Colour/Finishes: Polished Chrome
• Material: Brass
• Product Type: Slim Round Body Jet
• Supplied with swivel joint
• Silicone nozzles mean that any limescale deposits can simply be rubbed away
• Requirement – Suitable for all plumbing systems
• Pack of 4

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

All measurements are approximate

Pictures shown are for illustration purposes only.

Comprises

(1) Triple Push-Button Round Concealed Shower Valve with 3 Outlets
(1) Cruze 300mm Ultra Thin Round Shower Head
(1) 345mm Round Wall Mounted Shower Arm
(1) Round Outlet Elbow with Parking Bracket, Flex & Handset
(4) Cruze Slim Round Body Jets

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
