Cruze Round Concealed Individual Stop Tap + Thermostatic Control Valve With 300mm Shower Head

Cruze Round Concealed Individual Stop Tap + Thermostatic Control Valve with 300mm Shower Head

The Cruze Concealed Individual Stop Tap and Thermostatic Control Shower Valve Pack features a minimalist round design. This shower valve pack is perfect for installing in a concealed arrangement, pack comes supplied with a 300mm wall mounted fixed round shower head.

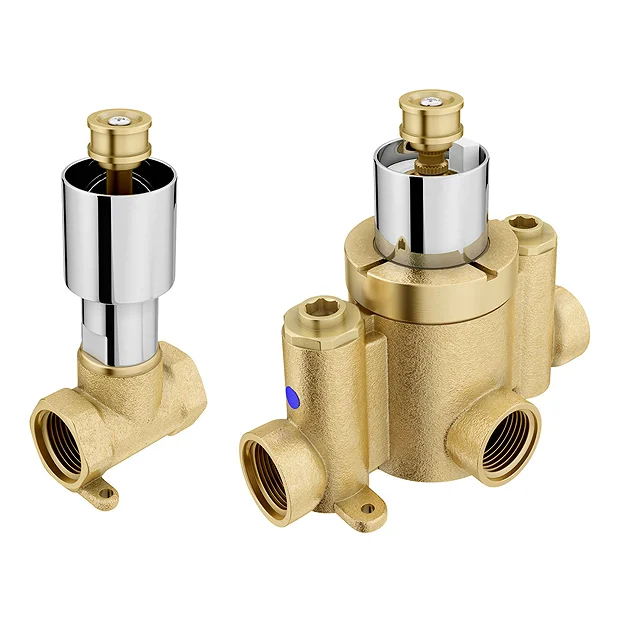

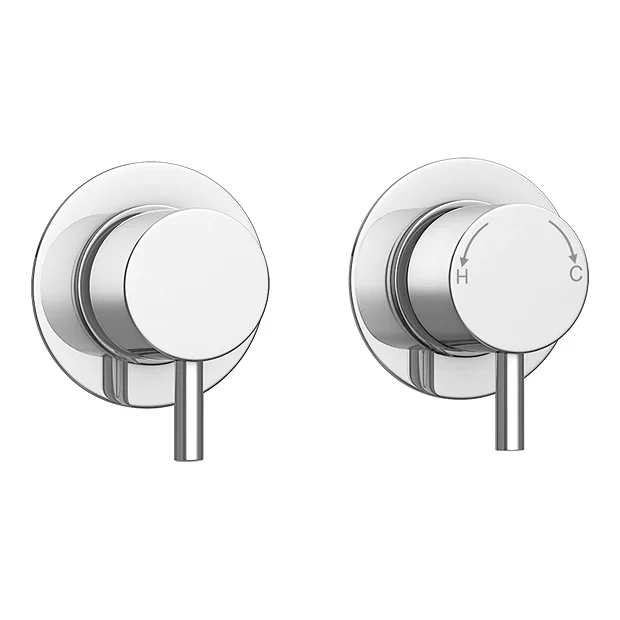

The Cruze concealed shower valve consists of two individual controls, for temperature and flow. The brass valve bodies come with contemporary chrome plated square backplates and handles. This concealed valve has been designed to be paired with one outlet, i.e. a main shower head.

Shower Valve Details

• Stop Tap: W70 x H70 x D138mm
• Thermostatic Control: W70 x H150 x D138mm
• Backplate: 70mm Diameter
• Style: Modern
• Range: Cruze
• Valve Handles: Round
• Colour/Finish: Chrome Plated
• Material: Brass Internals
• Concealed fitting
• Round backplates
• For use with 1 Outlet
• Min operating pressure: 0.5 bar
• Max operating pressure: 5 bar
• Hot Water Supply Temperature 55-85°C
• Cold Water Supply Temperature 4-29°C
• Suitable for modern pressurised plumbing systems.
• Pack includes individual thermostatic control with a individual stop tap for flow control.
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.
• Should a pump be required we recommend a universal or negative head pump.

Shower Head Details

• Style: Modern
• Colour/Finish: Polished Chrome
• Material: Stainless Steel
• Diameter: 300mm Head
• Rainfall Style
• Thickness: 3mm (excluding swivel joint)
• Shower Arm Length: 460mm
• Wall mounted 90-degree Bend
• Pressure requirement 0.5 bar minimum
• Inlet Connections: 1/2″ BSP
• Supplied with swivel joint Rub clean nozzles makes this item easy to clean and maintain

For further information refer to products installation instructions

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

All measurements are approximate

Images are for illustrative purposes only

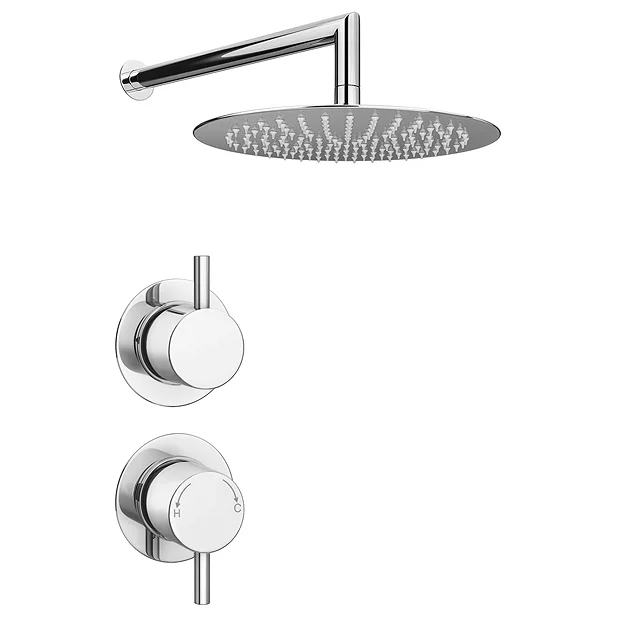

Comprises

(1) Cruze Concealed Individual Stop Tap + Thermostatic Control Shower Valve For 1 Outlet
(1) Cruze Round 460mm Wall Mounted 90 Degree Bend Shower Arm
(1) Cruze 300mm Ultra Thin Round Shower Head with Swivel Joint

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
