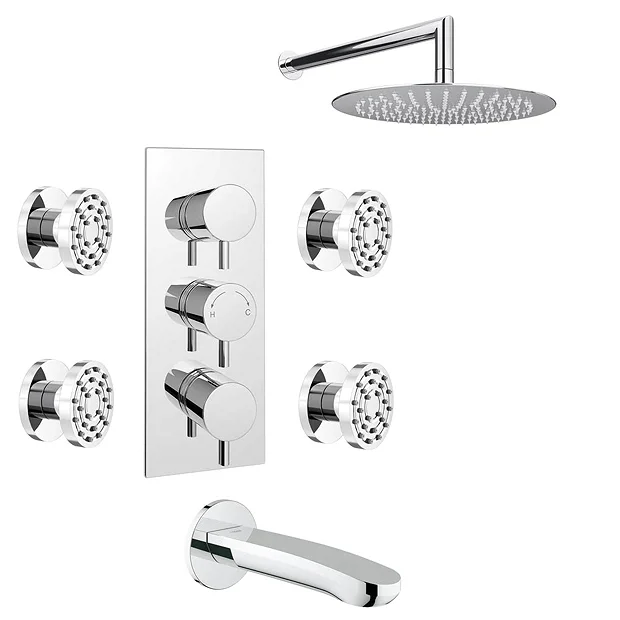

Cruze Modern Shower Package (Fixed Shower Head, 4 Body Jets + Bath Spout)

Cruze Modern Shower Package (Fixed Shower Head, 4 Body Jets + Bath Spout)

The minimalist Cruze shower package brings substantial elegance to the modern bathroom range, features a stylish concealed thermostatic triple shower valve which offers thermostatic showering via three easy-to-operate controls. Operates two shower accessories separately or simultaneously and diverts to a third option: fixed head & body jets with option to divert to free flow bath filler.

Shower Valve with Diverter Details

• Height – 265mm
• Width – 120mm
• Depth – 140mm
• High Quality Design
• Finish – Polished Chrome
• Brass Internals
• Thermostatically controlled
• Valve Handles – Round
• Rectangular Faceplate
• Style – Modern
• Built-in Diverter
• Water Pressure: 0.5 bar to 5 bar
• Operates two shower accessories separately or simultaneously and diverts to a third option
• Suitable for modern pressurised plumbing systems.
• Hot water temperature 55 to 85 Degrees
• Should a pump be required we recommend a universal or negative head pump

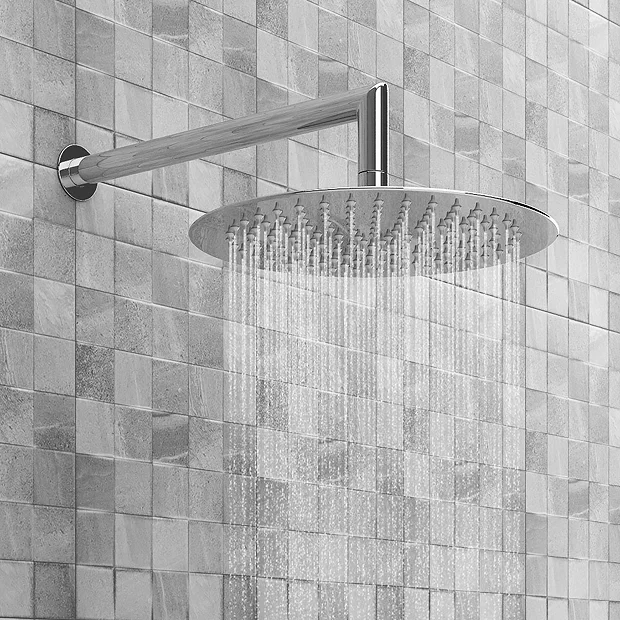

Shower Head Details

• Style: Modern
• Colour/Finish: Polished Chrome
• Material: Stainless Steel
• Diameter: 300mm Head
• Rainfall Style
• Thickness: 3mm (excluding swivel joint)
• Shower Arm Length: 460mm
• Wall mounted 90-degree Bend
• Pressure requirement 0.5 bar minimum
• Inlet Connections: 1/2″ BSP
• Supplied with swivel joint Rub clean nozzles makes this item easy to clean and maintain

Body Jets Details

• Overall Size – D60 x W55 x H55mm approx
• Shroud ring – 55mm diameter
• Brass 1/2 inch BSP thread – 25mm long
• 24 rubber nozzles (12 functional)
• Colour/Finishes – Polished Chrome
• Material – Brass
• Product Type – Slim Round Body Jet
• Supplied with swivel joint
• Silicone nozzles mean that any limescale deposits can simply be rubbed away
• Requirement – Suitable for all plumbing systems

Bath Spout Details

• Brand: Grohe
• Product Code: 13276002
• Finish: Chrome
• Projection: 170mm
• Male thread 1/2″
• Wall mounted
• Easy to clean thanks to the GROHE StarLight® chrome coating
• GROHE QuickFix® – quick and easy installation in a few simple steps
• Minimum Recommended Pressure: 1.0 bar

All measurements are approximate

Images shown are for illustration purposes only

Guarantee: 5 Year

Please note: Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.

Comprises

(1) Cruze Triple Round Concealed Thermostatic Shower Valve with Diverter – Chrome
(1) Grohe Eurostyle Cosmopolitan Bath Spout – 13276002
(4) Cruze Slim Round Body Jets
(1) Cruze 300 x 300mm Ultra Thin Round Shower Head + 90 Degree Bend Arm
