Cruze Concealed Individual Diverter + Thermostatic Control Shower Valve

Cruze Concealed Individual Diverter + Thermostatic Control Shower Valve (for 2 Outlets)

The Cruze Concealed Individual Diverter and Thermostatic Control Shower Valve Pack features a minimalist round design. This shower valve pack is perfect for installing in a concealed arrangement, linked to two outlets.

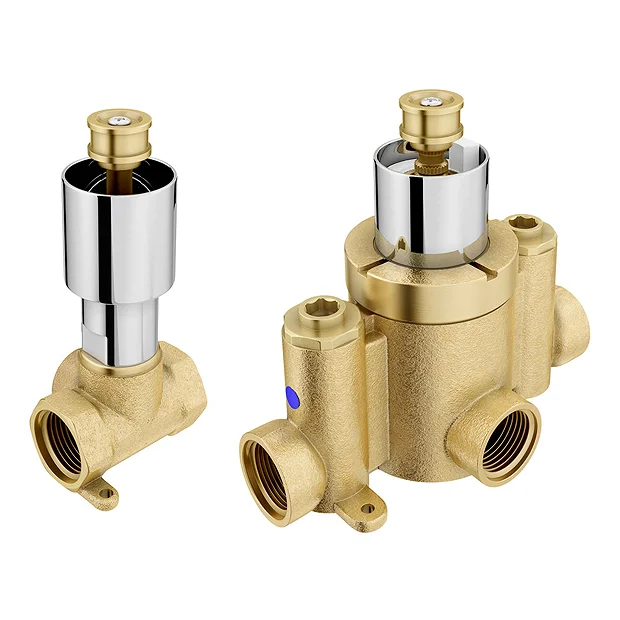

The Cruze concealed shower valve consists of two individual controls, for temperature and flow. The brass valve bodies come with contemporary chrome plated round backplates and handles. This concealed valve has been designed to divert between two shower accessories, i.e fixed head/slide rail kit, fixed head/body jets or slide rail kit/body jets.

Product Details

• Diverter Valve: W70 x H70 x D138mm
• Thermostatic Control: W70 x H150 x D138mm
• Backplate: 70mm Diameter
• Style: Modern
• Range: Cruze
• Valve Handles: Round
• Colour/Finish: Chrome Plated
• Material: Brass Internals
• Concealed fitting
• Round backplates
• For use with 2 Outlets
• Min operating pressure: 0.5 bar
• Max operating pressure: 5 bar
• Hot Water Supply Temperature 55-85°C
• Cold Water Supply Temperature 4-29°C
• Suitable for modern pressurised plumbing systems.
• Pack includes individual thermostatic control with a individual diverter valve for switching water flow between 2 outlets.
• Should a pump be required we recommend a universal or negative head pump


For further information refer to products installation instructions

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.

All measurements are approximate

Images are for illustrative purposes only

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Comprises

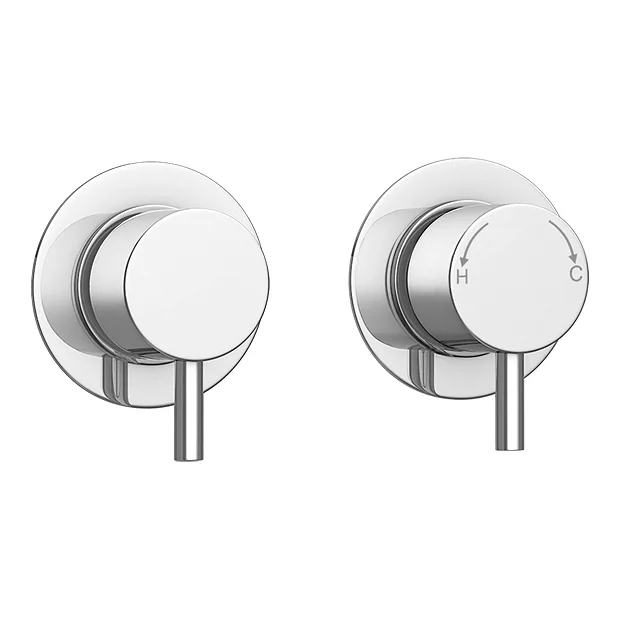

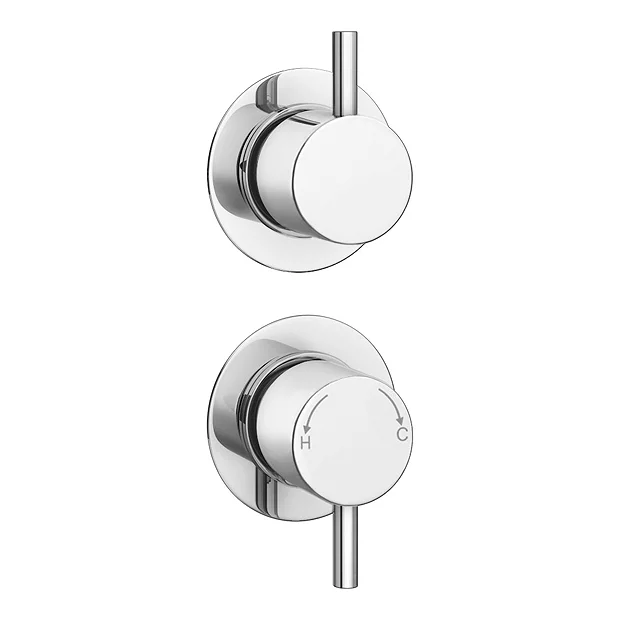

(1) Individual Diverter Valve with Round Backplate
(1) Thermostatic Valve with Round Backplate
