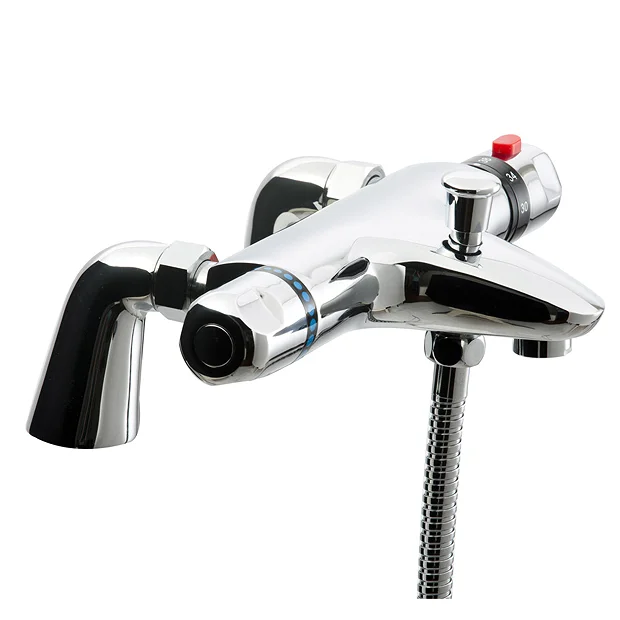

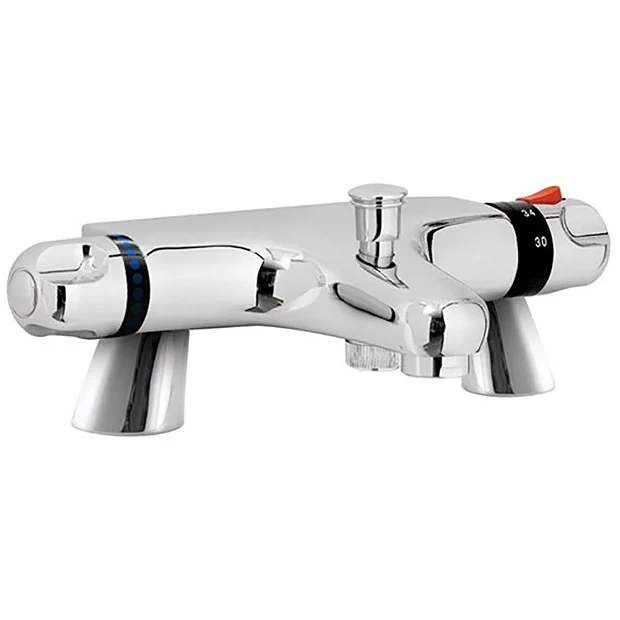

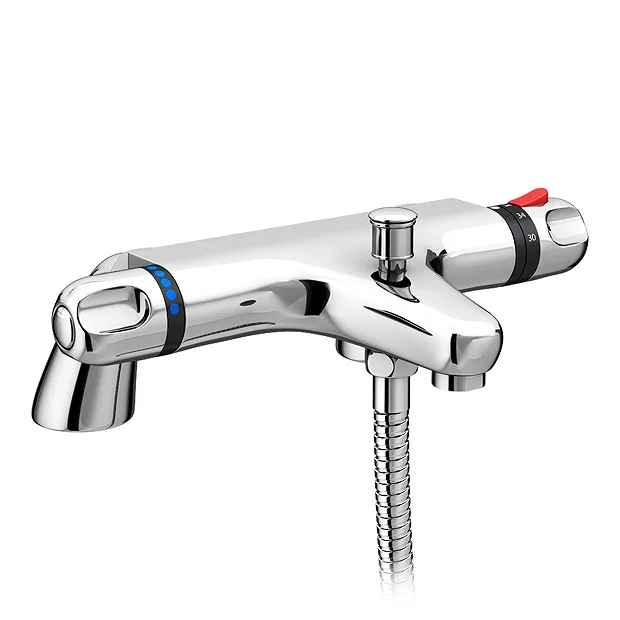

Coral Modern Thermostatic Bath Shower Mixer – Bottom Outlet

Coral Modern Thermostatic Bath Shower Mixer – Bottom Outlet – BTMV01

Sleek curves and a flat body give the Coral Modern Thermostatic Bath Shower Mixer a slightly retro feel that’s sure to complement a contemporary style bathroom. The thermostatic bath mixer tap has two handles with hot and cold indicators, so you always know which temperature you’re selecting – handy for those indulgent candlelit baths. With neat deck mounted legs and a low height of 92mm, this chrome mixer tap is a good fit for bathtubs with shelving or sloping walls above. It also comes with a diverter function, allowing you to turn your bath into a shower with ease.

Shower kit (shower flex & handset) sold separately.

Product Details

•
  High quality design
•
  Colour/Finish: Chrome Plated
•
  Material: Manufactured from solid brass
•
  Deck Mounted
•
  Bottom outlet
•
  Hot & Cold indicators
•
  Suitable to work under min. 1.0 bar water pressure systems
•
  Thermostatic bath shower mixer tap
•
  Suitable for all plumbing systems
•
  Centre to centre of inlets is 180mm
•
  Supplied with deck mounting legs
• Shower kit (hose & shower head) not included
• Hot water temperature 55 to 85 Degrees
• With gravity fed systems a pump will be required we recommend a universal or negative head pump

• Knob allows the user to divert the water between the bath tap and the shower
• Flow Rates
• 0.1 Bar – 5.9 l/m
• 0.2 Bar – 6.4 l/m
• 0.5 Bar – 8 l/m
• 1.0 Bar – 11 l/m
• 2.0 Bar – 14.2 l/m
• 3.0 Bar – 18.4 l/m

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

All measurements are approximate

Product images are for illustrative purposes only

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
