Bristan Smile Electric Shower White

Bristan Smile Electric Shower White

**New cover design with on/off button**

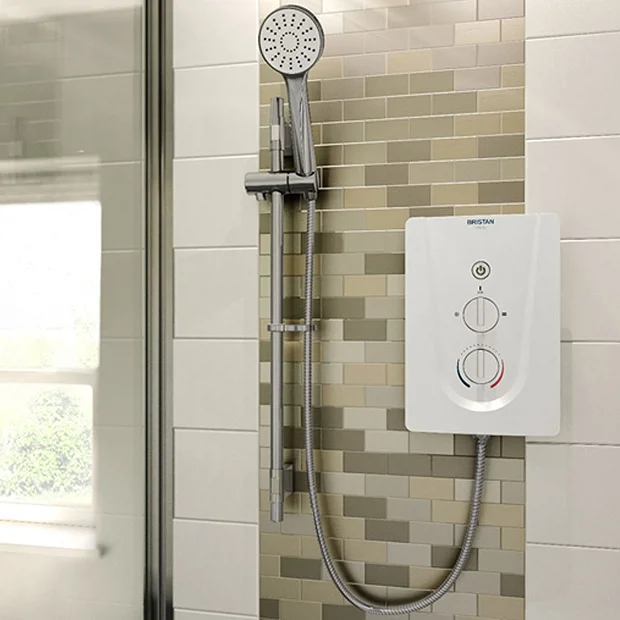

The new Smile Electric Shower from Bristan is available in white and offers sleek, modern styling. The universal footprint means that it will cover the space left by your old shower, so that re-tiling becomes optional. It has five water and electric inlet points, making it easy to install. Electric showers are an ideal choice for households where hot water storage is limited or not available, and also where the shower may need to be installed above the header tank, for example in a loft conversion.

Product Details

• Finish: White
• Product Type: Contemporary
• Construction: Plastic (ABS)
• Supply: Suitable for mains cold feed only
• Inlet Connections: 15mm push fit, 5 directional options
• Outlet Connections: G 1/2″
• Working Pressures: Min 0.7bar, Max 10.0bar

Additional Information

• Instantaneous electric shower drawing water direct from the mains supply; ideal for installations without stored hot water and second bathrooms.
• Consistent showering temperature is provided. The temperature stabilising device compensates for changes in the water pressure caused by other household fittings.
• Safety devices include thermal cut out & pressure relief.
• 3 Power settings. (Cold, Warm/Eco, Hot) and a separate temperature control.
• On/Off is operated by a Push-Button, ensuring temperature setting remains unaffected after each use.
• Push fit swivel inlet elbow pipe connection, enabling plumbing from 5 different directions.
• This shower is supplied with an adjustable riser kit and single mode rub-clean handset, 1.5m shower hose & hose retainer.
• Adjustable riser comes complete with adjustable bottom bracket so ideal to cover existing riser holes and tile joints.
• Incorporates a temperature control device (TCD) that activates when the temperature is too high & the water inside the heater gets too hot. The TCD will switch off the power to the heating elements and once the unit cools down to a safe temperature, will come on again.

WRAS approved Product

Flow Rates (Litres per min)

Power 8.5kW – Flow Rate 4.5
Power 9.5kW – Flow Rate 5.1

Quoted as per European Water Label (EWL) scheme conditions:
Output = 42°C; Input = 15°C; Voltage = 240V
