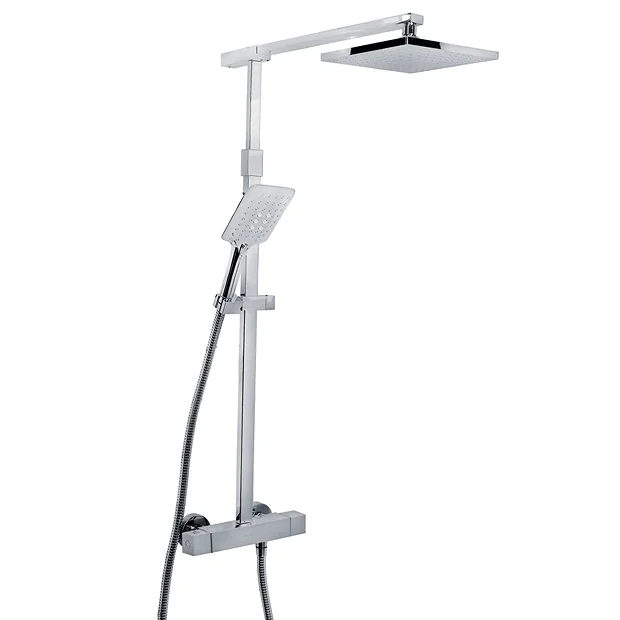

Bristan Quadrato Thermostatic Bar Shower Valve With Rigid Riser + Fast Fit Kit

Bristan Quadrato Thermostatic Bar Shower Valve with Rigid Riser and Fast Fit Kit QD-SHXDIVFF-C

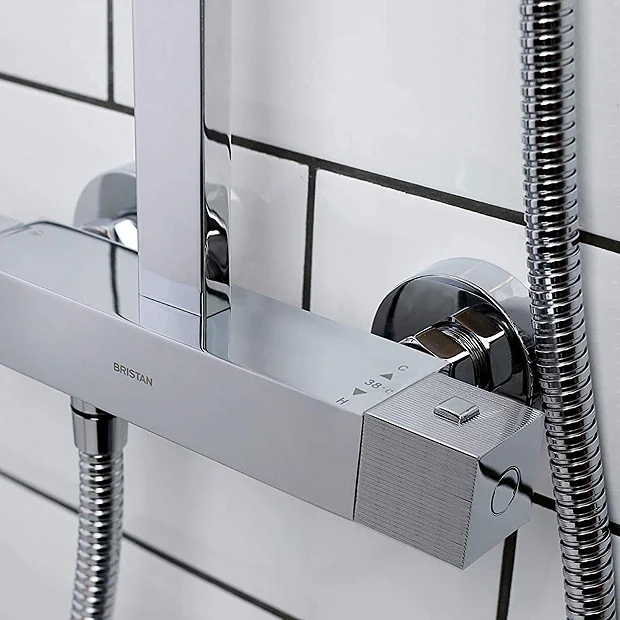

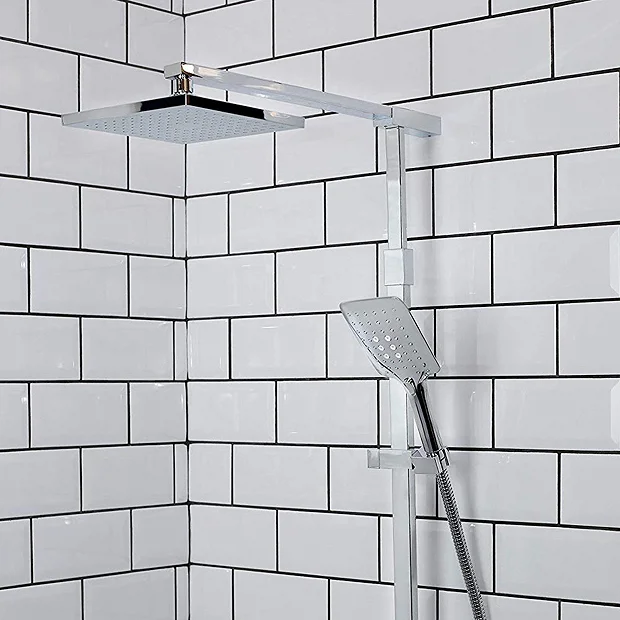

Bring a contemporary look to your bathroom with the Bristan Quadrato Thermostatic Bar Shower Valve. This modern design features a rainfall shower head and a coordinating handset with dual controls that allow you to adjust flow and temperature separately. Both shower heads have nozzles than can be rubbed clean to make limescale remover quick and easy. This rigid riser shower uses Bristan’s Fast Fit system – a convenient way to fix the thermostatic shower valve to the pipework coming from your wall.

Features

• Height: 935-1115mm

• Projection: 600mm

• Product Code: QD SHXDIVFF C
• Contemporary style
• Chrome plated to BSN 248
• Construction: Body is of brass construction
• Cartridge Type: Thermostatic cartridge
• Supply: Gravity (when pumped) and pressurised
• Inlet Connection: 15mm compression
• Outlet Connection: G ½”
• Water Pressure: Min 0.5bar, Max. 10.0bar
• Dimensions for Fitting: 150mm inlet centres
• Dual control – flow and temperature are controlled separately, giving accurate control of both.
• Thermostatic cartridge maintains showering temperature to +/- 1oC by compensating for changes in the incoming water temperature and pressure giving the stable outlet temperature.
• Automatic shut off in the event of hot or cold water supply failure, thus reducing the risk of scalding.
• Factory set to a maximum of 38oC to eliminate the ability to select an unsafe temperature – this can be manually over-ridden up to 46°C to suit user preference.

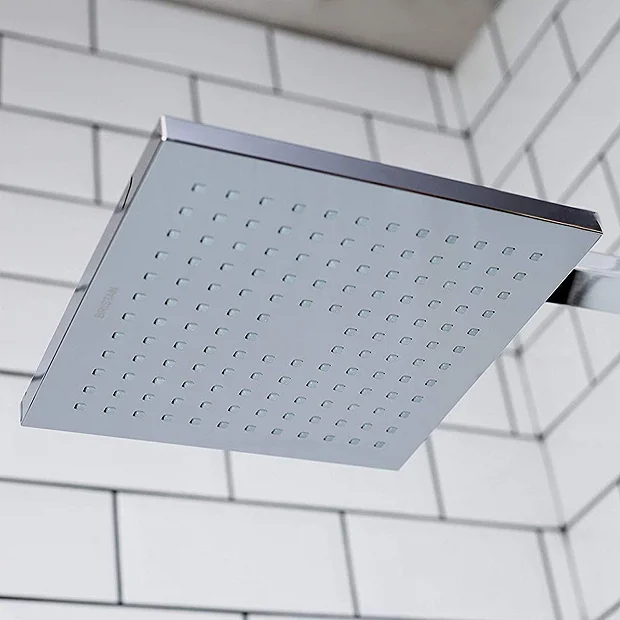

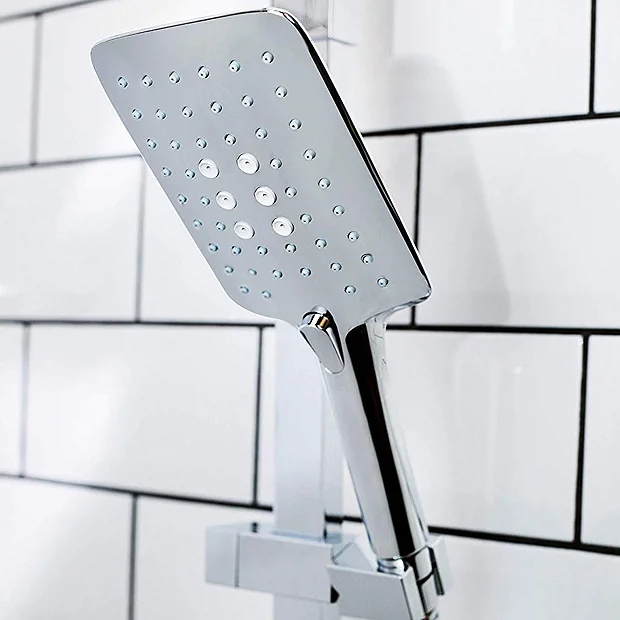

• Supplied with 1.5m hose, single function handset and 200mm square rose, both with rub clean nozzles.
• Fast Fit connections also make it incredibly easy to install.


Guarantee: 5 years covering manufacturing faults
