Bristan – Prism Thermostatic Recessed Dual Control Three Handle Shower Valve With Integral Twin Stopcocks

Bristan – Prism Thermostatic Recessed Dual Control Three Handle Shower Valve with Integral Twin Stopcocks – PM2-SHC3STP-C

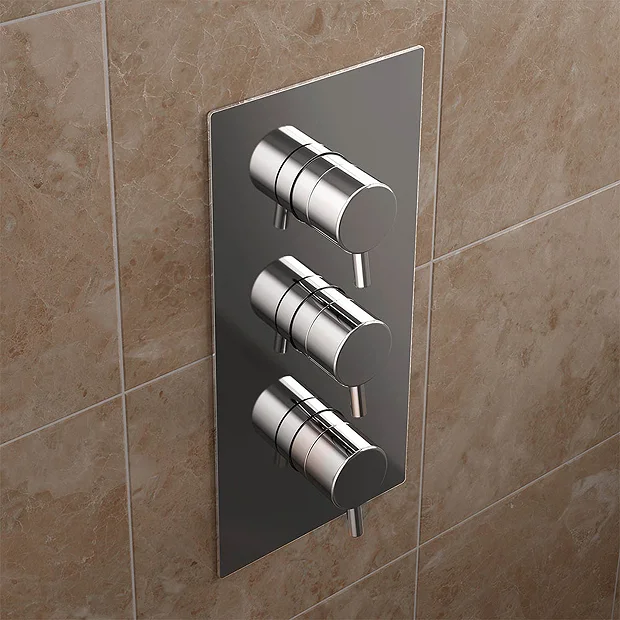

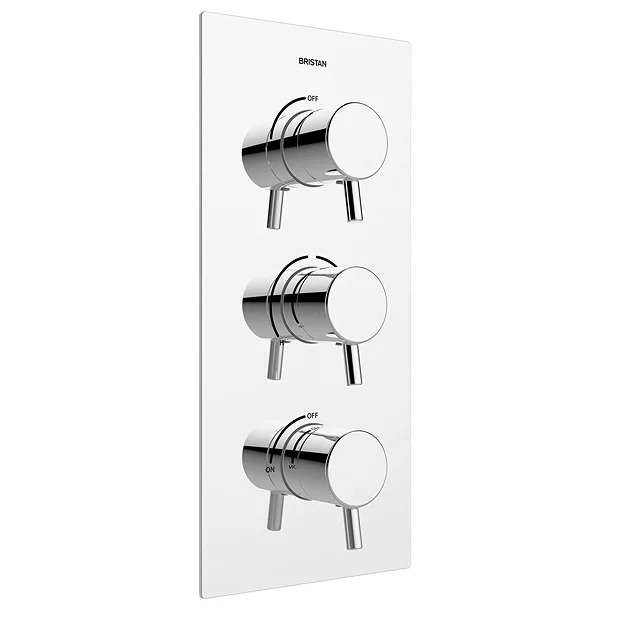

The Prism shower valve has a beautiful and new age modern design. This Prism Thermostatic Recessed Dual Control Shower Valve is suitable for all plumbing systems, requiring an operating pressure between 0.2 bar and 5.0 bar and comes with three controls that regulate the temperature and flow separately.

Product Details

• Brand – Bristan
• Finishes – Chrome
• Product Type – Contemporary
• Construction – Body is of brass construction and is designed to conform to BS EN 200
• Valve Type – Ceramic disc valve
• Supply – Suitable for all plumbing conditions, preferably balanced. The inlet hot water temperature must be at least 10% above the required blend temperature.
• Inlet Connections – 15mm Compression connections
• Water Pressure – Working pressures 0.2-5.0 Bar
• Maximum Static Pressure – 10 Bar
• Chrome plated to BS EN 248
• Suitable for cavities between 45-75mm
• Minimum cold water supply temperature is 5oc
• Maximum hot water supply temperature is 80oc
• Flow rate at 0.2 Bar (open outlet without flow regulators) is 9 l/min from stopcock. 12.9l/min from both outlet together
• Fully serviceable from the front
• WRAS approved

Guarantee – 5 years covering manufacturing faults
