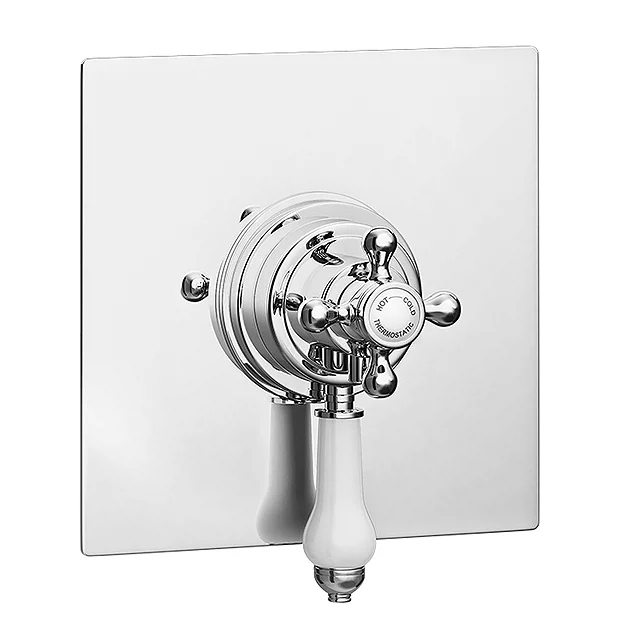

Belmont Traditional Square Concealed Dual Thermostatic Shower Valve

Belmont Traditional Dual Concealed or Exposed Thermostatic Shower Valve inc Square Back Plate

The classic Belmont concealed thermostatic shower valve with square back plate offers thermostatic showering with two easy to operate controls, one operates flow control whilst the other allows temperature selection.

To be used with a fixed head or slide rail kit, this valve has the added safety benefit of a built in anti-scald device should the cold water supply fail. The Belmont dual concealed thermostatic shower valve adds a touch of sophistication and style in any bathroom.

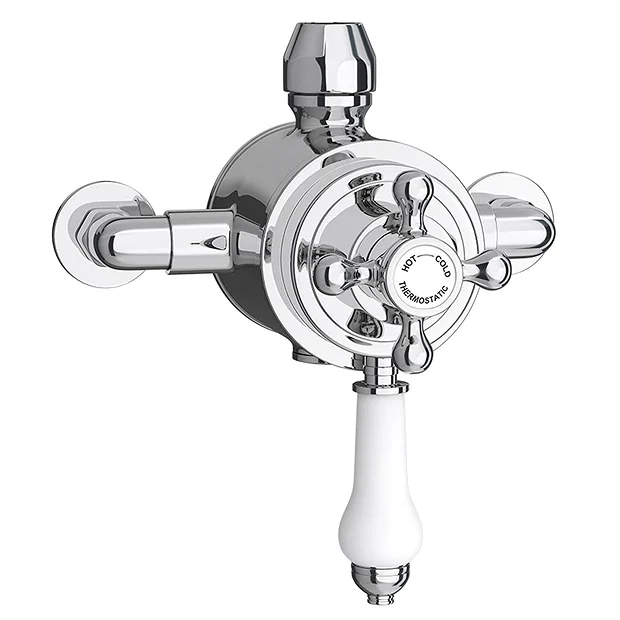

*The valve can be installed either concealed or exposed.

Product Details

• Width: 184mm
• Height: 184mm
• Type: Dual Thermostatic Shower Valve
• Colour/Finish: White/Chrome
• Square Backplate

• Manufactured from solid brass
• Smooth Operation with Quality Components
• Water Pressure: 0.5 bar to 5 bar

• Standards EN200 and/or WRc/NSF
• Anti-scald technology
• Classic body with traditional lever and cross head handles
• Operates a single shower accessory – 1 Outlet
• 150mm between pipe inlet centres
• Suitable for modern pressurised plumbing systems.

• Flow rate of twin concealed valve:
• 0.5 bar-8.5L/M
• 1 bar-12.5L/M
• 2 bar-16.5L/M
• 3 bar-19.5L/M

• Hot water temperature 55 to 85 Degrees
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.
• Should a pump be required we recommend a universal or negative head pump.


Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

All measurements are approximate

Pictures for illustrative purposes only

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
