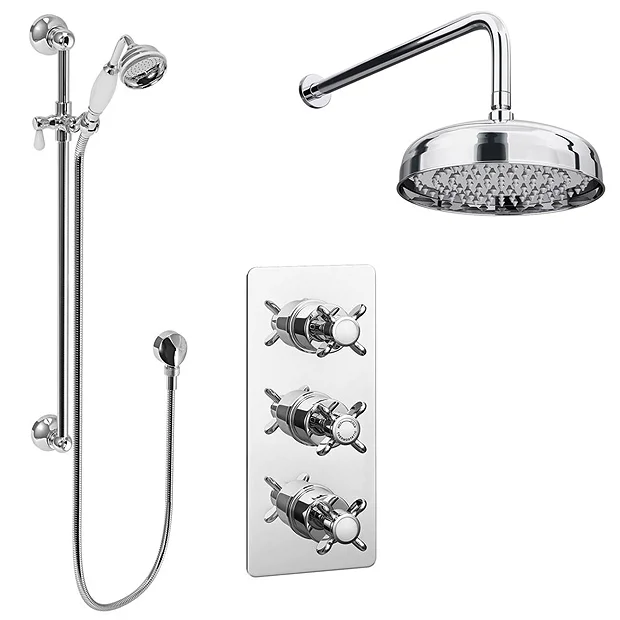

Astoria Traditional Concealed Shower Valve Incl. 8″ Head With Arm & Slider Rail

Astoria Traditional Concealed Shower Valve incl. 8″ Head with Arm & Slider Rail

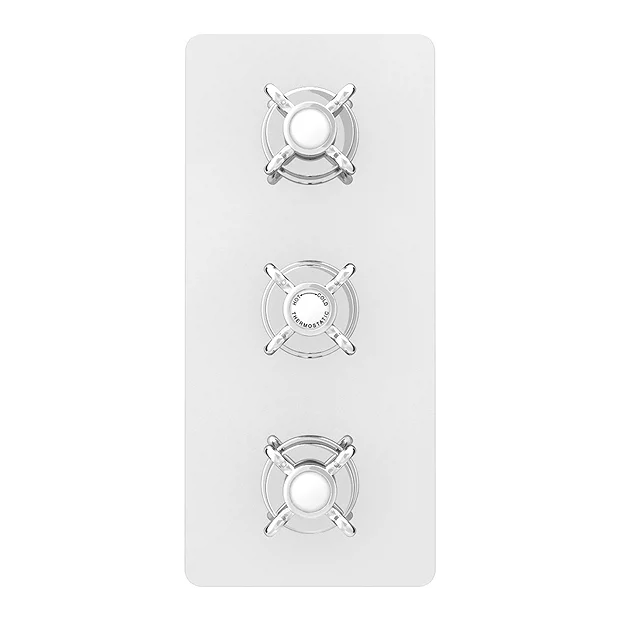

The Astoria triple concealed thermostatic shower valve with 8 inch shower head, wall mounted arm and slider rail kit.

This concealed triple shower valve offers thermostatic showering via three easy-to-operate controls. Operates two shower accessories separately or simultaneously – Fixed head / Slide rail kit.

Slider rail kit consists of a classic slide rail, 1.5 hose and shower handset. Manufactured using high quality chrome and brass, our range of Edwardian shower valves will look outstanding in any shower enclosure.

Shower Valve Details

• Height: 265mm
• Width: 120mm
• Type: Concealed Valve
• Style: Traditional
• Colour/Finish: Chrome
• Manufactured from highly durable brass
• Water Pressure: 0.5 bar to 5 bar

• Wall mounted
• Thermostatically controlled
• Classic cross head handles
• Ceramic Indices

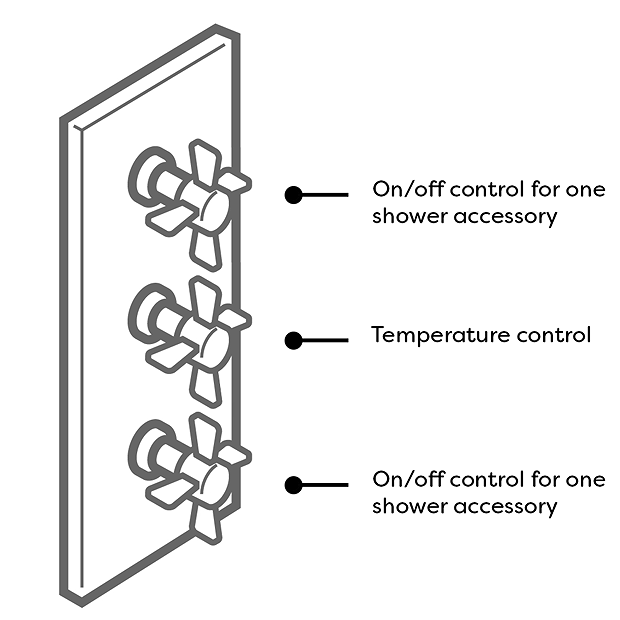

• Separate controls for temperature and flow.

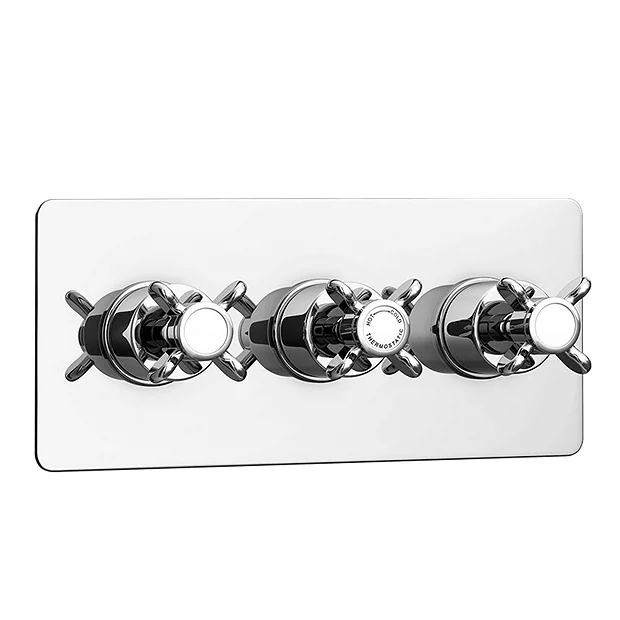

• Can be fitted vertically or horizontally

• Operates two shower accessories separately or simultaneously – 2 Outlets
• Suitable for modern pressurised plumbing systems.

• Hot water temperature 55 to 85 Degrees
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.
• Should a pump be required we recommend a universal or negative head pump.
• Flow Rates:
• 0.5 bar – 9.6 L/M
• 1 bar – 14.1 L/M
• 2 bar – 20.5 L/M
• 3 bar – 24.8 L/M
• 4 bar – 28.3 L/M
• 5 bar – 32 L/M

Shower Head & Arm Details

• Size: diameter 200mm, height 100mm
• Shower arm length: 345mm
• With Swivel ball joint
• Style: Traditional
• Colour/Finish: Polished Chrome
• Material: Brass Internals
• Pressure requirement 0.5 bar minimum
• Silicone nozzles mean that any lime-scale deposits can simply be rubbed away
• Installation of the arm requires rear access behind the wall.


Shower Slide Rail Kit Details

• Height: 690mm
• Traditional Design
• Colour/Finish: Polished Chrome with White ceramic detailing
• Material: Brass Internals
• Slide Rail Kit & Shower
• Low pressure
• Adjustable Handset Position
• 1.5m hose
• Minimum 0.1 bar pressure required for best performance
• Manufactured to the Highest Standards
• Includes outlet elbow

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Pictures for illustrative purposes only.

All measurements are approximate

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
