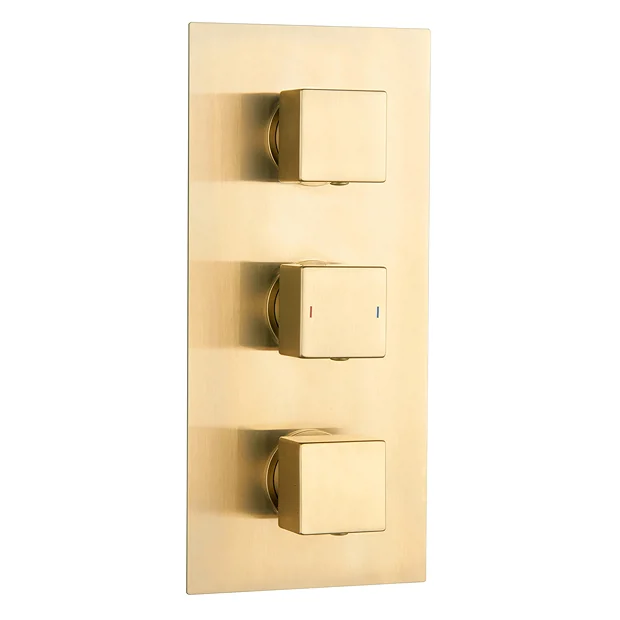

Arezzo Square Triple Concealed Thermostatic Shower Valve With Diverter – Brushed Brass

Arezzo Square Triple Concealed Thermostatic Shower Valve with Diverter – Brushed Brass (3 Outlet)

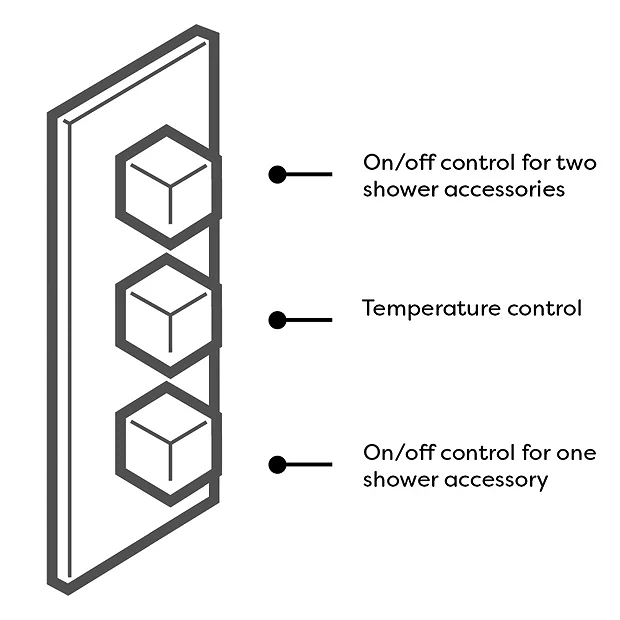

The minimalist Arezzo triple concealed thermostatic shower valve with built-in diverter brings substantial elegance to the modern bathroom, features a striking square design with a luxury brushed brass finish. This stylish concealed thermostatic triple shower valve offers thermostatic showering via three easy-to-operate controls.

Operates two shower accessories separately or simultaneously and diverts to a third option: fixed head & slide rail kit, fixed head & body jets or slide rail kit & body jets with option to divert to free flow bath filler.

Product Details

• Height: 265mm
• Width: 120mm
• Depth: 140mm
• High Quality Design
• Finish: Brushed Brass
• Material: Brass Internals
• Thermostatically controlled
• Valve Handles: Square
• Rectangular Faceplate
• Outlets: 3
• Style: Modern
• Built-in Diverter
• Water Pressure: 0.5 bar to 5 bar
• Operates two shower accessories separately or simultaneously and diverts to a third option
• Suitable for modern pressurised plumbing systems.
• Hot water temperature 55 to 85 Degrees
• With gravity fed systems a pump will be required, we recommend a universal or negative head pump
• Can be fitted vertically or horizontally
• Flow Rates:
• 0.5 bar – 7.8 L/M
• 1 bar – 11.1 L/M
• 2 bar – 16 L/M
• 3 bar – 19.5 L/M
• 4 bar – 22.8 L/M
• 5 bar – 25.5 L/M



Pictures for illustrative purposes only.

All measurements are approximate

Guarantee: 3 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Gravity Fed Systems:

If you live in an older property, there’s a good chance you have a low-pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
