Arezzo Square Matt Black 2 Outlet Shower System (Fixed Shower Head + Overflow Bath Filler)

Arezzo Square Matt Black Concealed 2 Outlet Shower System (Fixed Shower Head + Overflow Bath Filler)

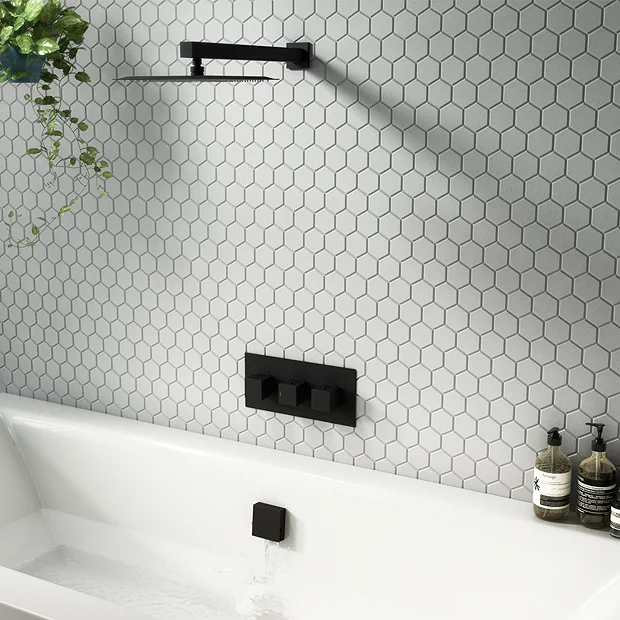

The eye-catching matt black Arezzo square shower system features a triple concealed thermostatic shower valve with stylish square handles, wall mounted shower head and overflow bath filler click clack waste brings substantial elegance to the modern bathroom.

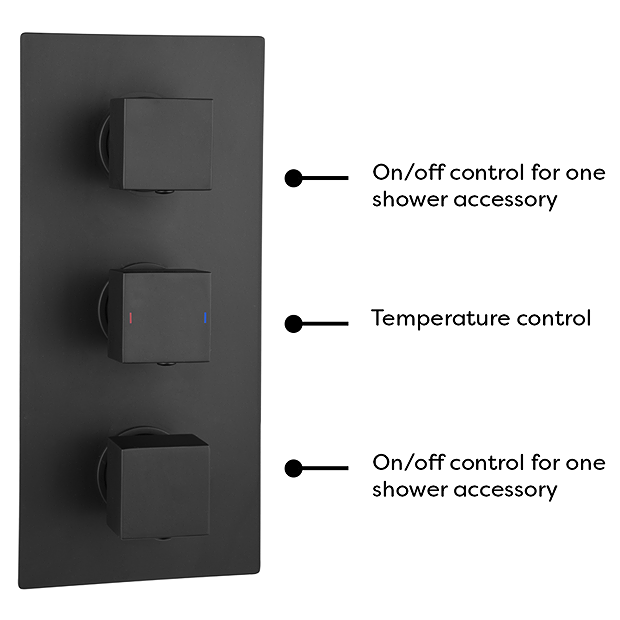

This stylish concealed thermostatic shower system offers thermostatic showering via three easy-to-operate controls. Separate controls for temperature and flow. Operates two outlets separately or simultaneously. (fixed head and overflow bath filler)

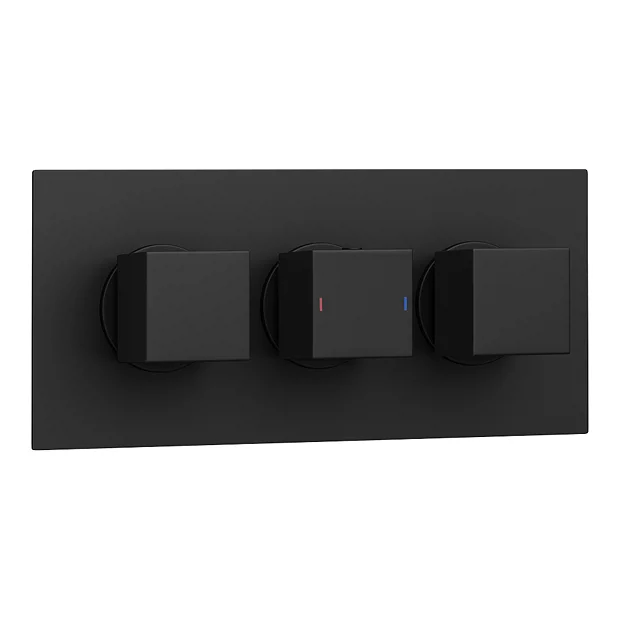

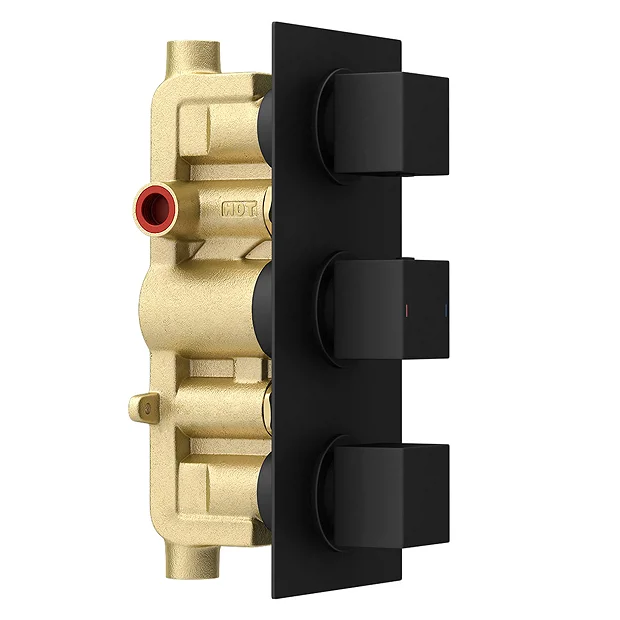

Shower Valve Details

• Width: 120mm
• Depth: 140mm
• Height: 265mm
• High Quality Design
• Colour/Finish: Matt Black
• Material: Brass Internals
• Thermostatically controlled
• Valve Handles: Square
• Rectangular Faceplate
• Outlets: 2
• Style: Modern
• Operates two points separately or simultaneously
• Water Pressure: 0.5 bar to 5 bar
• Suitable for modern pressurised plumbing systems.
• Can be fitted vertically or horizontally
• Hot water temperature 55 to 85 Degrees
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.
• Should a pump be required we recommend a universal or negative head pump.

Shower Head + Arm Details

• Shower Head Dimensions: 200 x 200mm
• Shower Arm Length: 335mm
• Style: Modern
• Colour/Finish: Matt Black
• Material: Stainless Steel
• Rainfall Effect
• Ultra-Thin Shower Head
• Inlet Connections: 1/2″ BSP
• Pressure requirement 0.5 bar minimum
• Supplied with swivel joint and wall mounted square shower arm.
• Rub clean nozzles makes this item easy to clean and maintain

Square Slimline Freeflow Bath Filler Waste Details

• Length 620mm
• Shape: Square
• Colour: Matt Black
• Product Type: Freeflow Bath Filler Waste and Overflow
• With click clack waste
• Suitable for single and double ended baths
• Suitable for medium pressure systems of 0.5 bar and above
• Bath Filler Option – connects to hot and cold water supply,
• This bath filler must be fitted on a flat edge.

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Pictures for illustrative purposes only.

All measurements are approximate

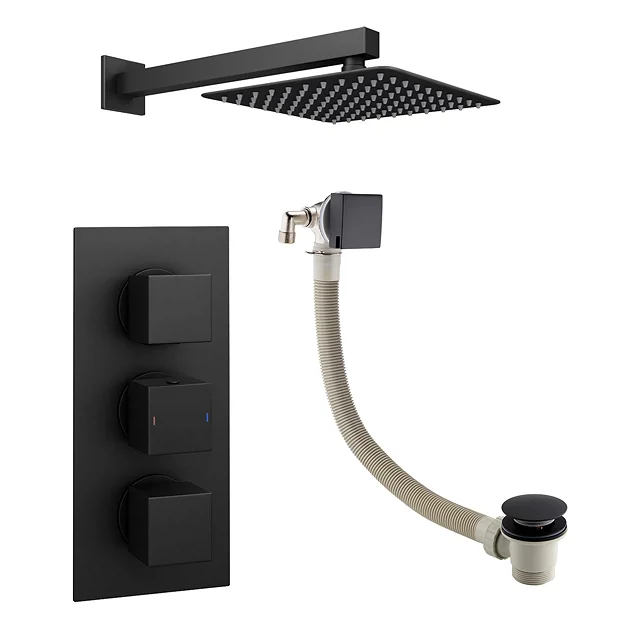

Comprises

(1) Matt Black Triple Square Concealed Thermostatic Shower Valve
(1) 200 x 200mm Matt Black Ultra Thin Square Head
(1) Matt Black 335mm Square Shower Arm
(1) Matt Black Square Slimline Freeflow Bath Filler Click Clack Waste

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
