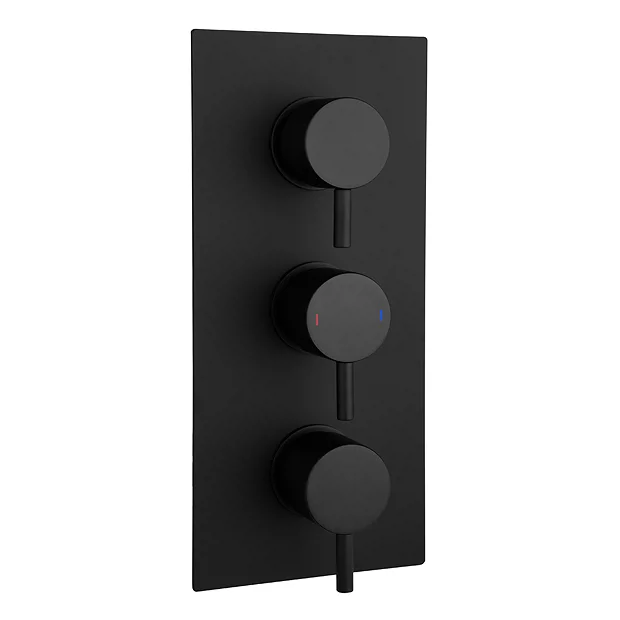

Arezzo Round Triple Concealed Thermostatic Shower Valve With Diverter – Matt Black

Arezzo Round Triple Concealed Thermostatic Shower Valve with Diverter – Matt Black (3 Outlet)

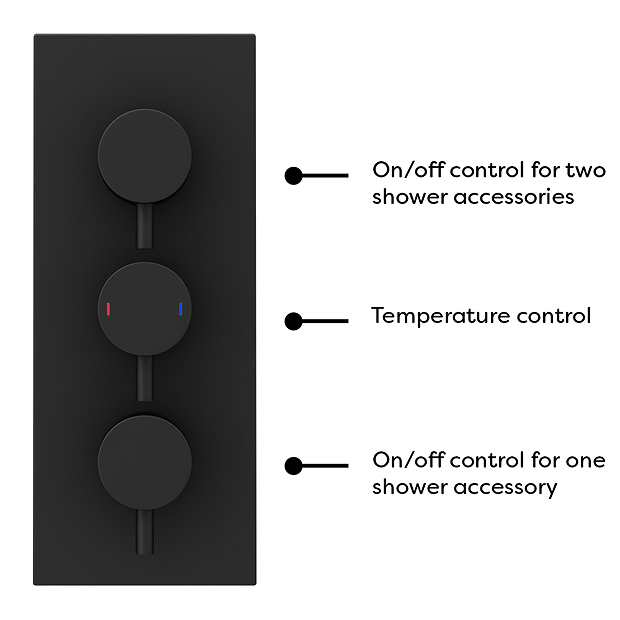

The minimalist Arezzo matt black triple concealed thermostatic shower valve with built-in diverter brings substantial elegance to the modern bathroom. This stylish concealed thermostatic triple shower valve offers thermostatic showering via three easy-to-operate controls. Operates two shower accessories separately or simultaneously and diverts to a third option: fixed head & slide rail kit, fixed head & body jets or slide rail kit & body jets with option to divert to free flow bath filler.

Product Details

•
  Height: 265mm
•
  Width: 120mm
•
  Depth: 140mm
•
  High Quality Design
•
  Finish: Matt Black
•
  Material: Brass Internals
•
  Thermostatically controlled
•
  Valve Handles: Round
•
  Rectangular Faceplate
•
  Style: Modern
•
  Built-in Diverter
•
  Water Pressure: 0.5 bar to 5 bar
•
  Operates two shower accessories separately or simultaneously and diverts to a third option
•
  Suitable for modern pressurised plumbing systems.
•
  Hot water temperature 55 to 85 Degrees
•
  With gravity fed systems a pump will be required, we recommend a universal or negative head pump
•

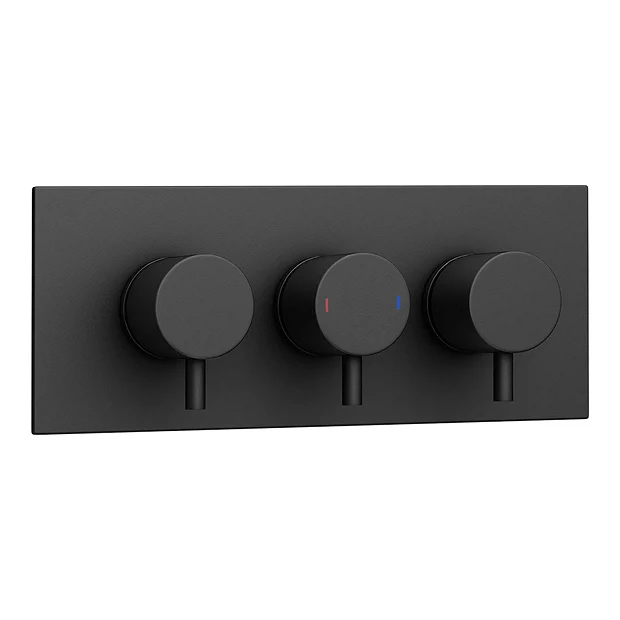

  Can be fitted vertically or horizontally
•
  Flow Rates:
•
  0.5 bar – 7.8 L/M
•
  1 bar – 11.1 L/M
•
  2 bar – 16 L/M
•
  3 bar – 19.5 L/M
•
  4 bar – 22.8 L/M
•
  5 bar – 25.5 L/M

Pictures for illustrative purposes only.

All measurements are approximate

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
