Arezzo Matt White Round Shower Package With Concealed Valve + Head

Arezzo Matt White Round Shower Package with Concealed Valve + 200mm Wall Mounted Head

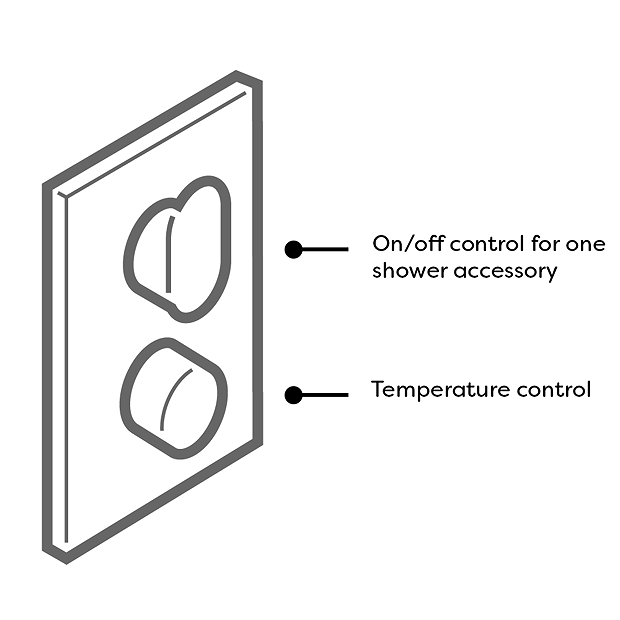

This Arezzo round concealed thermostatic valve features a clean minimalist matt white finish with round tap heads, perfect for creating an eye catching look in your bathroom. Offers thermostatic showering via two easy-to-operate controls for temperature and flow. The valve body comes with a contemporary square face plate and has been constructed from solid brass. Supplied with matching wall mounted 200mm matt white round fixed shower head with swivel joint and arm.

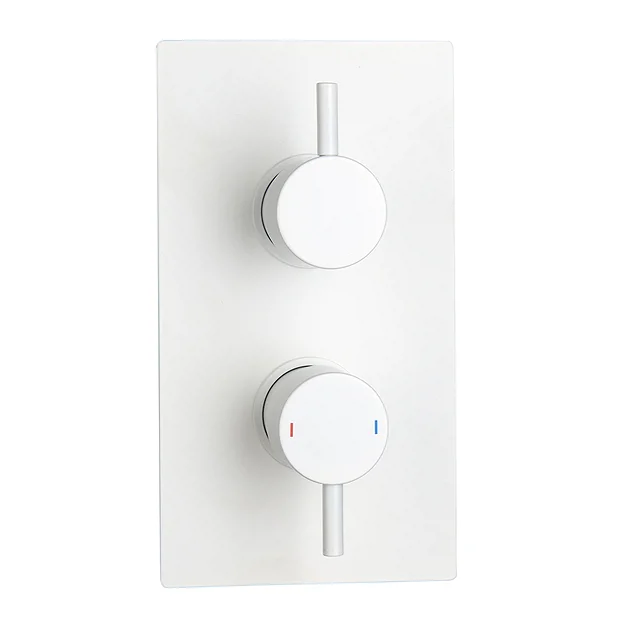

Shower Valve Details

• Height: 215mm
• Width: 120mm
• Style: Modern
• Colour/Finish: Matt White
• Valve Handles: Round
• Brass Internals
• Thermostatically controlled
• Water Pressure: 0.5 bar to 5 bar
• Rectangular Faceplate
• For use with 1 Outlet
• Can be fitted vertically or horizontally
• Striking round handles with a contemporary matt white finish.
• Suitable for modern pressurised plumbing systems.
• Hot water temperature 55 to 85 Degrees
• Shower valve will not work efficiently on a gravity fed tank system, unless a correct booster pump is installed.
• Should a pump be required we recommend a universal or negative head pump.
• Flow Rates:
• 0.5 bar – 9.6 L/M
• 1 bar – 14.1 L/M
• 2 bar – 20.5 L/M
• 3 bar – 24.8 L/M
• 4 bar – 28.3 L/M
• 5 bar – 32 L/M

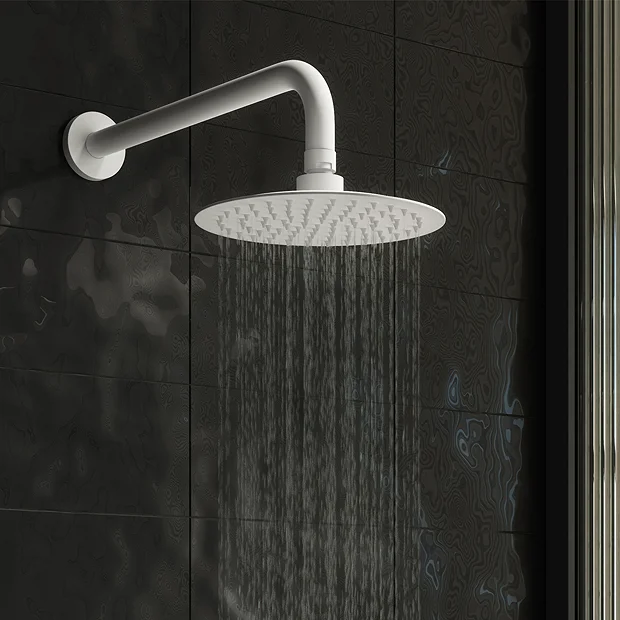

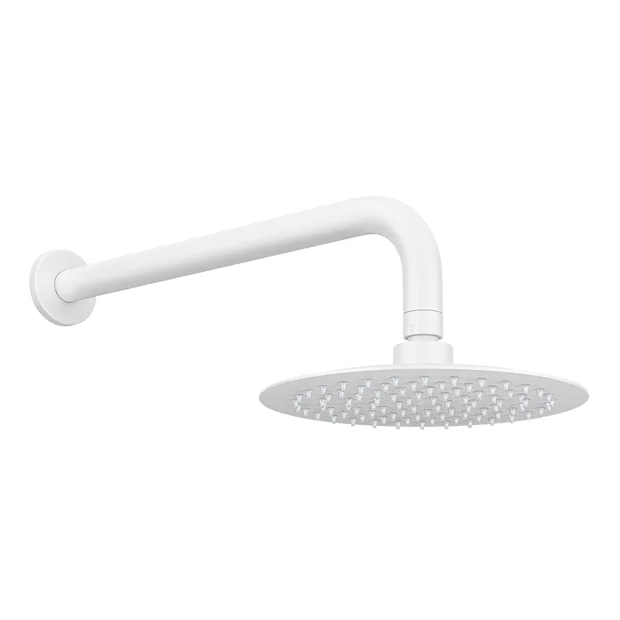

Shower Head + Arm Details

• Shower Head Dimensions: 200mm Diameter
• Shower Arm Length: 345mm (Approx.)
• Style: Modern
• Colour/Finish: Matt White
• Material: Stainless Steel
• Rainfall Effect
• Ultra-Thin Shower Head
• Inlet Connections: 1/2″ BSP
• Pressure requirement 0.5 bar minimum
• Supplied with swivel joint and wall mounted round arm.
• Rub clean nozzles makes this item easy to clean and maintain
• Fixings not included
• Installation of the arm requires rear access behind the wall.


All measurements are approximate

Pictures for illustrative purposes only

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Comprises

(1) Twin Round Concealed Shower Valve – Matt White
(1) 200 x 200mm Ultra Thin Round Head – Matt White
(1) Round Shower Arm – Matt White

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
