Arezzo Matt White Concealed Individual Stop Tap + Thermostatic Control Valve With Wall Mounted Shower Head

Arezzo Matt White Concealed Individual Stop Tap + Thermostatic Control Valve with 200mm Wall Mounted Shower Head

The Arezzo Concealed Individual Stop Tap and Thermostatic Control Shower Valve Pack features a clean minimalist matt white finish with a striking modern round design. This shower valve pack is perfect for installing in a concealed arrangement, pack comes with a matching 200mm wall mounted fixed shower head including swivel joint and arm.

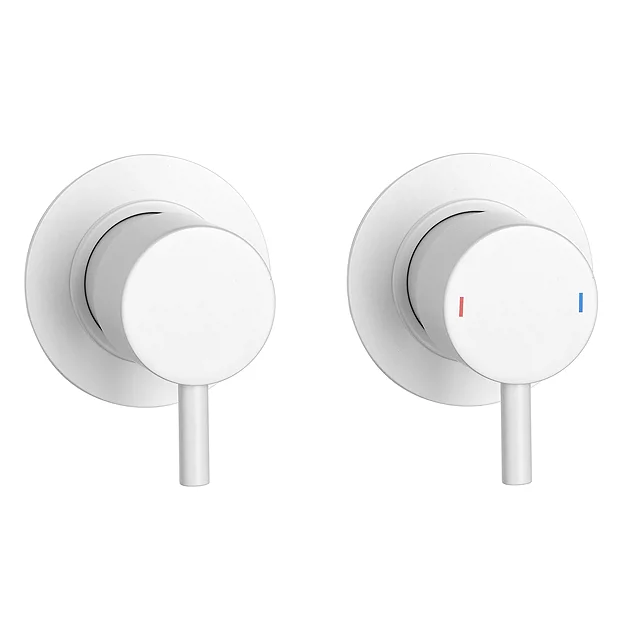

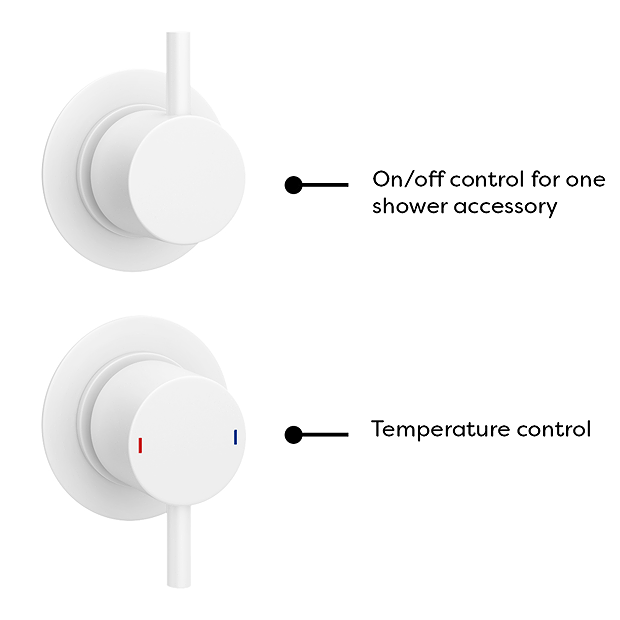

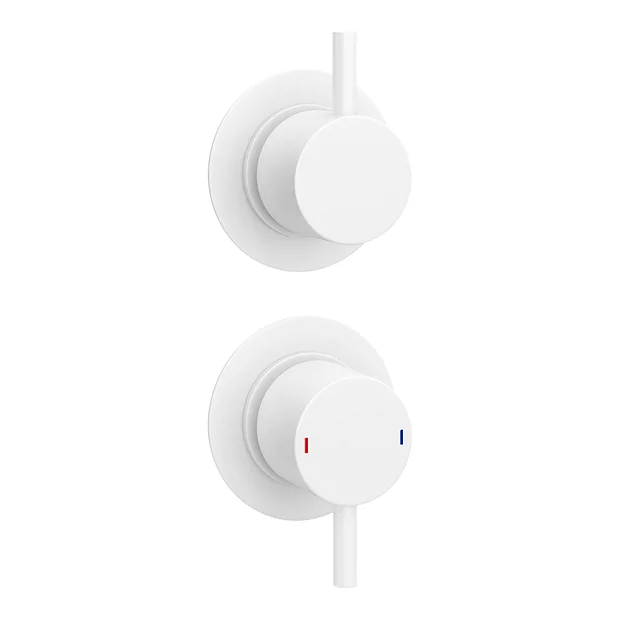

The Arezzo concealed shower valve consists of two individual controls, for temperature and flow. The brass valve bodies come with contemporary round backplates and handles. This concealed valve has been designed to be paired with one outlet, i.e. a main shower head.

Shower Valve Details

• Stop Tap: W70 x H70 x D138mm
• Thermostatic Control: W70 x H150 x D138mm
• Backplate: 70mm Diameter
• Style: Modern
• Range: Arezzo
• Valve Handles: Round
• Colour/Finish: Matt White
• Material: Brass Internals
• Concealed fitting
• Round backplates
• For use with 1 Outlet
• Min operating pressure: 0.5 bar
• Max operating pressure: 5 bar
• Hot Water Supply Temperature 55-85°C
• Cold Water Supply Temperature 4-29°C
• Suitable for modern pressurised plumbing systems.
• Pack includes individual thermostatic control with a individual stop tap for flow control.
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.
• Should a pump be required we recommend a universal or negative head pump.
• Perfect for creating a clean minimalist look.

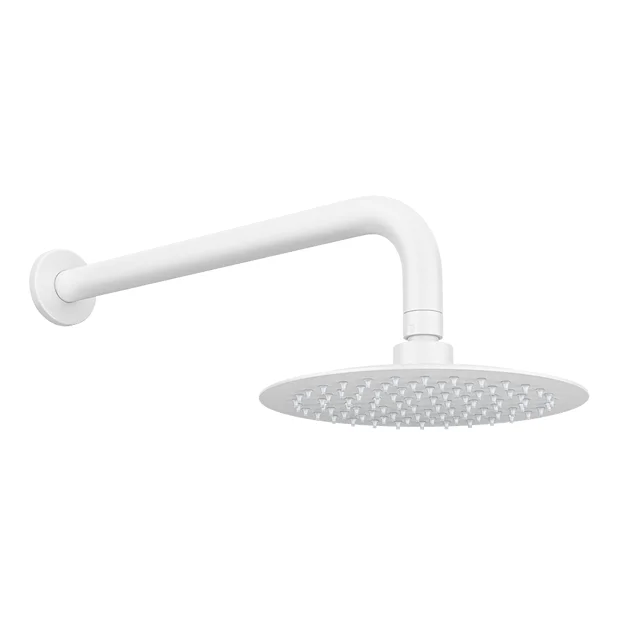

Shower Head + Arm Details

• Shower Head Dimensions: 200mm Diameter
• Shower Arm Length: 345mm (Approx.)
• Style: Modern
• Colour/Finish: Matt White
• Material: Stainless Steel
• Rainfall Effect
• Ultra-Thin Shower Head
• Inlet Connections: 1/2″ BSP
• Pressure requirement 0.5 bar minimum
• Supplied with swivel joint and wall mounted round arm.
• Rub clean nozzles makes this item easy to clean and maintain
• Fixings not included
• Installation of the arm requires rear access behind the wall.

For further information refer to products installation instructions

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

All measurements are approximate

Images are for illustrative purposes only

Comprises

(1) Matt White Concealed Individual Stop Tap + Thermostatic Control Shower Valve For 1 Outlet
(1) Matt White Ultra Thin Round Head – 200mm
(1) Matt White Round Wall Mounted Shower Arm – 345mm

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
