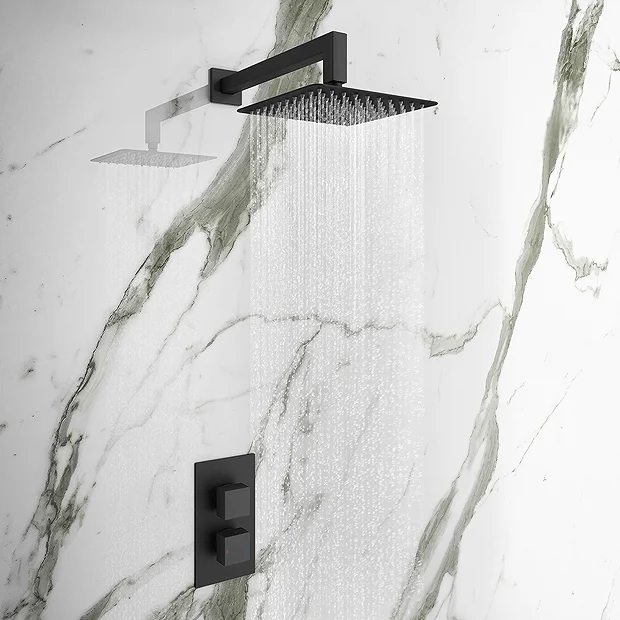

Arezzo Matt Black Square Shower Package (inc. Valve, 200 X 200 Square Head And 90-Degree Bend Arm)

Arezzo Matt Black Square Shower Package (inc. Valve, 200 x 200 Square Head and 90-Degree Bend Shower Arm)

Bring some luxury to your bathroom with the Arezzo Matt Black Square Shower Package. Whether you’re renovating a tired shower area or redesigning your entire room, the square design and striking black finish introduce a touch of class. The thermostatic shower valve has easy to operate controls that let you manage the temperature and flow easily. You can also use the swivel joint in the fixed shower head to set the perfect angle. You’ll get an invigorating bathroom experience with this rainfall shower head, which is designed to last thanks to wipe clean nozzles that eliminate limescale build up.

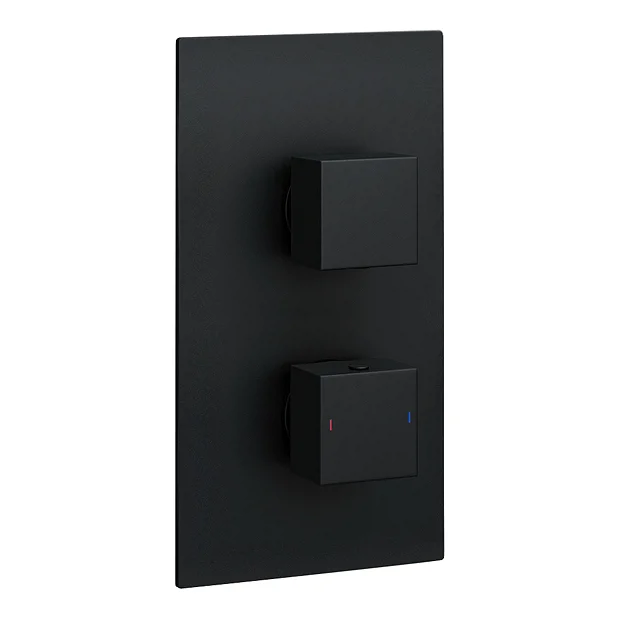

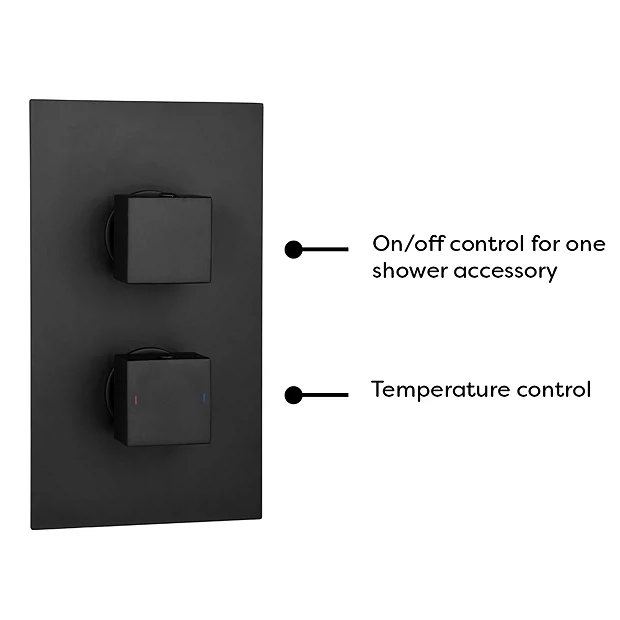

Shower Valve Details

• Height: 215mm
• Width: 120mm
• Style: Modern
• Colour/Finish: Matt Black
• Valve Handles: Square

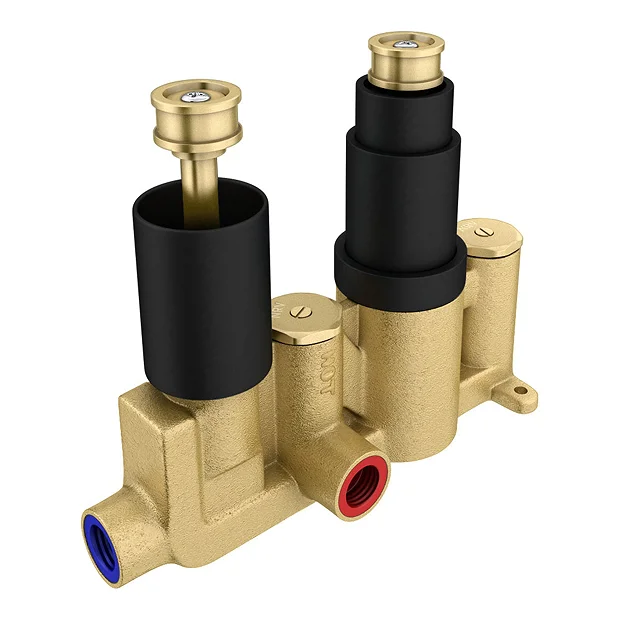

• Brass Internals
• Thermostatically controlled
• Water Pressure: 0.5 bar to 5 bar
• Rectangular Faceplate
• For use with 1 Outlet

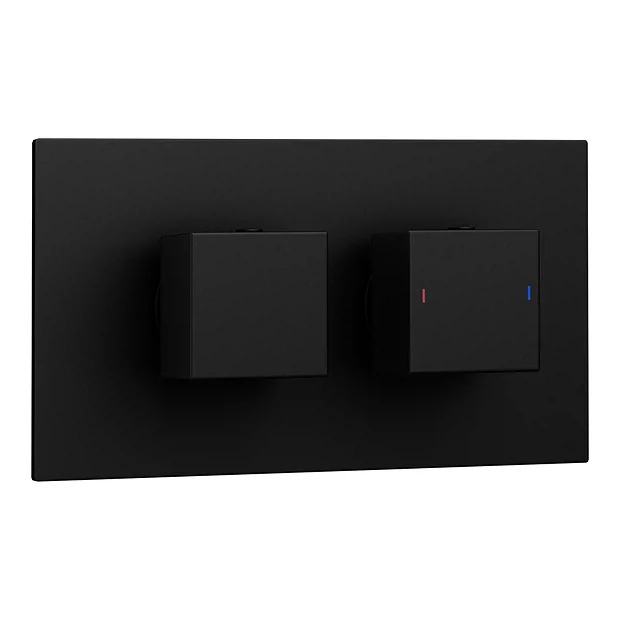

• Can be fitted vertically or horizontally
• Shower handset sold separately
• Suitable for modern pressurised plumbing systems.
• Hot water temperature 55 to 85 Degrees
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.

• Should a pump be required we recommend a universal or negative head pump.

• Flow Rates:
• 0.5 bar – 9.6 L/M
• 1 bar – 14.1 L/M
• 2 bar – 20.5 L/M
• 3 bar – 24.8 L/M
• 4 bar – 28.3 L/M
• 5 bar – 32 L/M

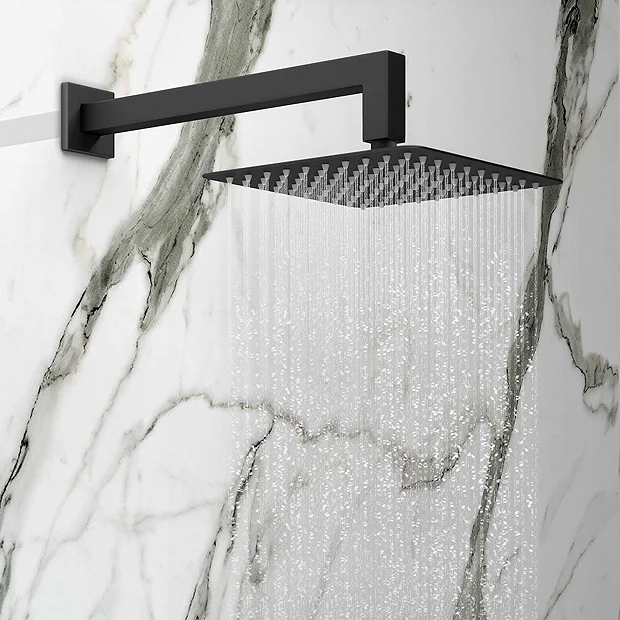

Shower Head + Arm Details

• Shower Head Dimensions: 200 x 200mm
• Style: Modern
• Colour/Finish: Matt Black
• Material: Stainless Steel
• Shape: Square
• Rainfall Effect
• Ultra-Thin Shower Head
• Inlet Connections: 1/2″ BSP
• Shower Arm Length: 393mm
• Wall mounted
• 90-degree Bend
• Pressure requirement 0.5 bar minimum
• Inlet Connections: 1/2″ BSP
• Supplied with swivel joint
• Rub clean nozzles makes this item easy to clean and maintain

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

All measurements are approximate

Images are for illustrative purposes only

Comprises

(1) Matt Black Twin Square Concealed Shower Valve
(1) Matt Black 393mm Square Wall Mounted 90 Degree Bend Shower Arm
(1) Matt Black 200 x 200mm Ultra Thin Square Head

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
