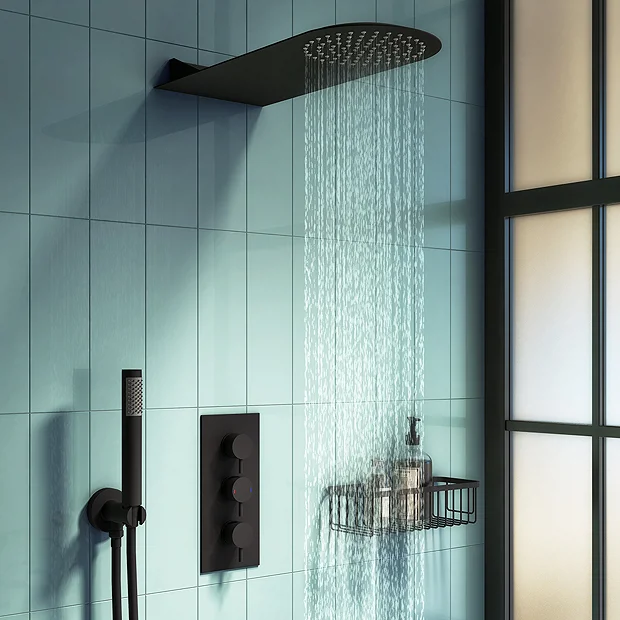

Arezzo Matt Black Round Triple Thermostatic Shower Pack W. Flat Fixed Head + Handset

Arezzo Matt Black Round Shower Package with Triple Concealed Valve, Ultra Thin Flat Fixed Shower Head + Handset

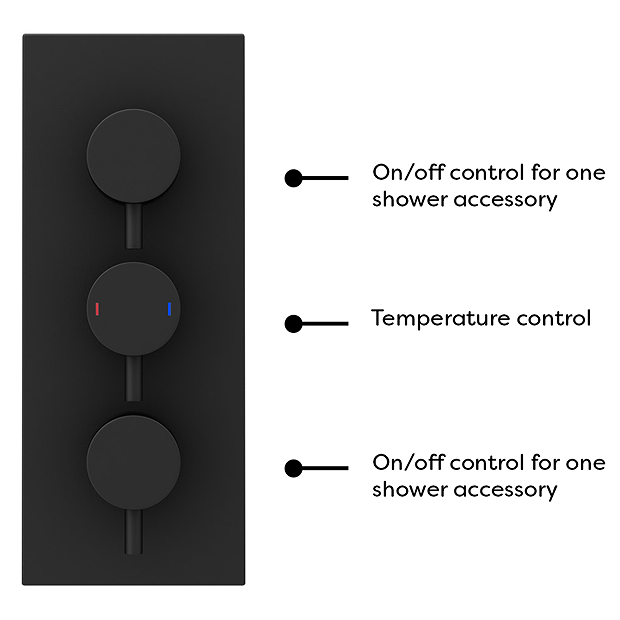

This minimalist matt black 2 outlet round Arezzo concealed thermostatic valve will compliment any modern bathroom suite, offers thermostatic showering via three easy-to-operate controls. Separate controls for temperature and flow. Operates two outlets separately or simultaneously. Pack comes with a ultra thin fixed round flat rainfall Shower head and a matching wall mounted handset, perfect for targeted tasks, like cleaning or washing hair.

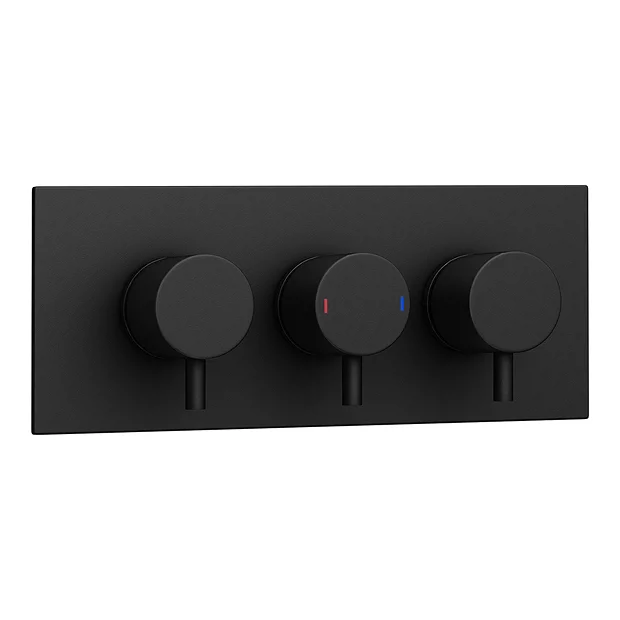

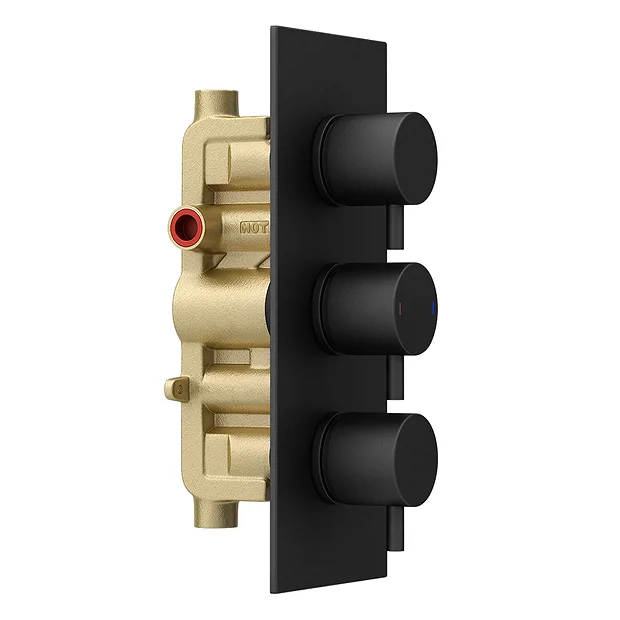

Shower Valve Details

• Width: 120mm
• Depth: 140mm
• Height: 265mm
• Style: Modern
• Colour/Finish: Matt Black
• Valve Handles: Round
• Solid Brass Internals
• Thermostatically controlled
• Thermostatic Cartridge
• Rectangular Faceplate
• Outlets: 2
• Operates two points separately or simultaneously
• Water Pressure: 0.5 bar to 5 bar
• Can be fitted vertically or horizontally
• Suitable for modern pressurised plumbing systems.
• Automatic shut off in the event of hot or cold water supply failure.
• Hot water temperature 55 to 85 Degrees
• With gravity fed systems a pump will be required, we recommend a universal or negative head pump
• Flow Rates:
• 0.5 bar – 9.6 L/M
• 1 bar – 14.1 L/M
• 2 bar – 20.5 L/M
• 3 bar – 24.8 L/M
• 4 bar – 28.3 L/M
• 5 bar – 32 L/M

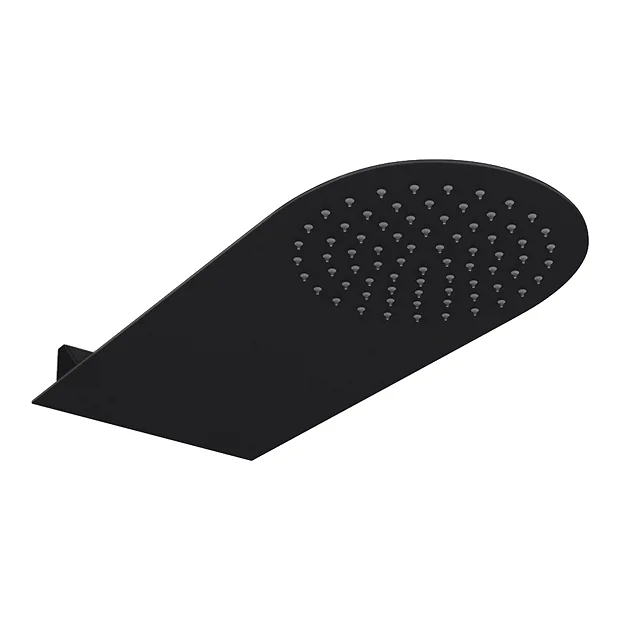

Shower Head Details

• Type: Fixed Flat Rainfall Shower Head
• Style: Modern
• Shape: Round
• Colour/Finish: Black
• Material: Stainless Steel
• Dimensions: 200 x 480mm
• Thickness/Profile: 9mm
• Pressure requirement 0.5 bar minimum
• Inlet Connections: 1/2″ BSP
• Wall Mounted
• Rub clean nozzles makes this item easy to clean and maintain
• Shower head is fixed onto the wall with two expansion screws, and comes with a long 1/2″ male threaded adapter which can be connected to the water supply.

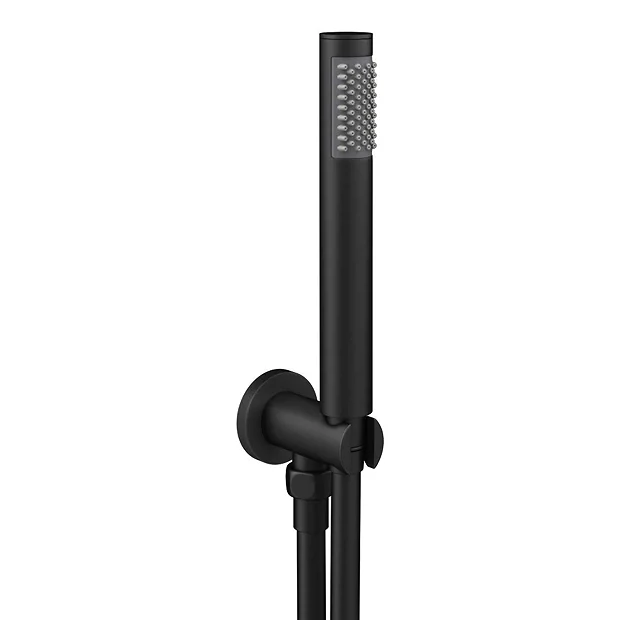

Shower Handset Details

• Depth: 67mm
• Height: 210mm
• Width: 50mm
• Colour/Finish: Matt Black
• Shape: Round
• Manufactured To The Highest Standards
• Round Handset with Built in Outlet
• Suitable for all plumbing systems
• Eye-catching, matt black finish
• 1.5m Shower Hose – Black PVC
• Outlet Elbow with Parking Bracket – Brass / Matt Black
• Handset – ABS plastic / Matt Black
• Quality finish
• Pencil handset holder
• Silicone nozzles mean that any lime scale deposits can simply be rubbed away
• Connections: 15 mm (1/2″ BSP)

*Installation requires rear access behind the wall.

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

All measurements are approximate

Product images for illustration purposes only

Comprises

(1) Arezzo Round Modern Concealed Twin Shower Valve – Matt Black
(1) Arezzo Black Round Flat Fixed Shower Head (200 x 480mm)
(1) Arezzo Round Matt Black Outlet Elbow with Parking Bracket, Hose & Handset

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
