Arezzo Matt Black Concealed Individual Stop Tap + Thermostatic Control Shower Valve

Arezzo Matt Black Concealed Individual Stop Tap + Thermostatic Control Shower Valve (for 1 Outlet)

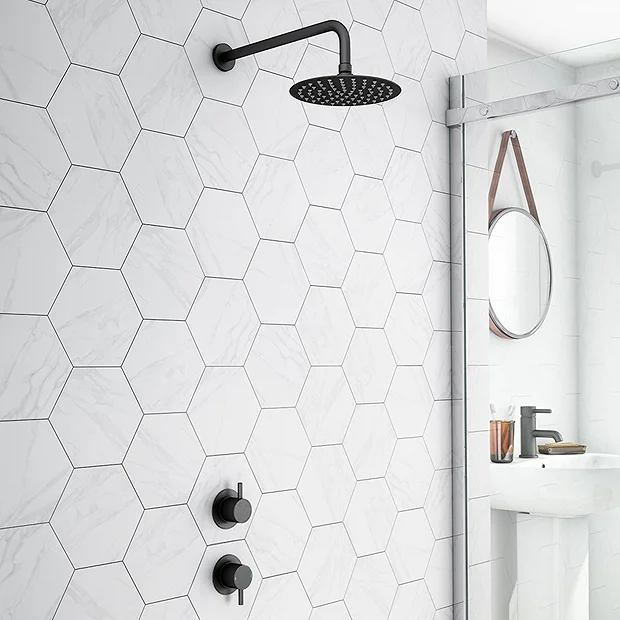

The Arezzo Matt Black Concealed Individual Stop Tap and Thermostatic Control Shower Valve Pack features a minimalist round design. This modern shower valve pack is perfect for installing in a concealed arrangement, linked to a fixed shower head.

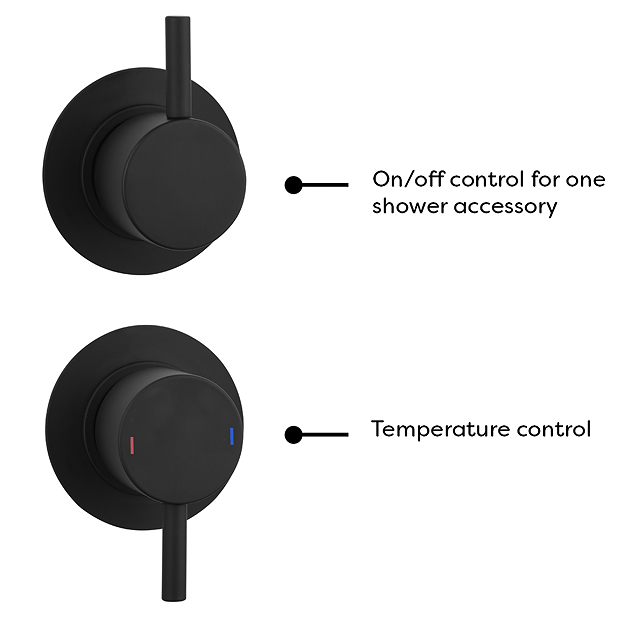

The Arezzo concealed shower valve consists of two individual controls, for temperature and flow. The brass valve bodies come with contemporary matt black round backplates and handles. This concealed valve has been designed to be paired with one outlet, i.e. a main shower head.

Product Details

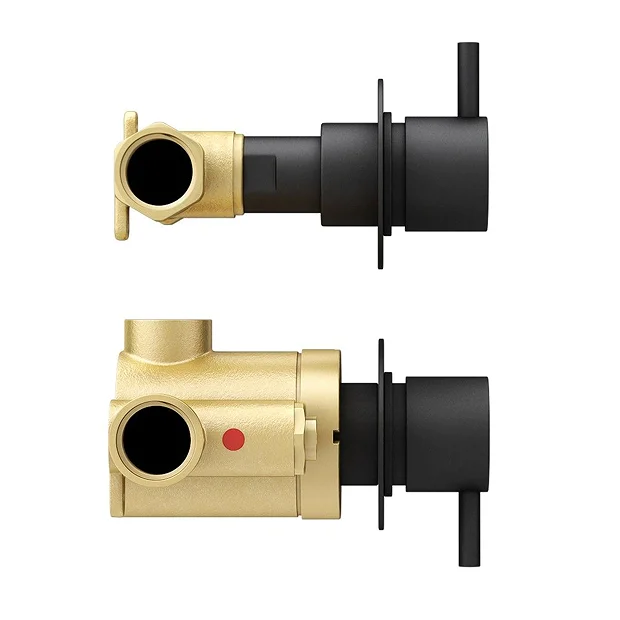

• Stop Tap: W70 x H70 x D138mm
• Thermostatic Control: W70 x H150 x D138mm
• Backplate: 70mm Diameter
• Style: Modern
• Range: Arezzo
• Valve Handles: Round
• Colour/Finish: Matt Black

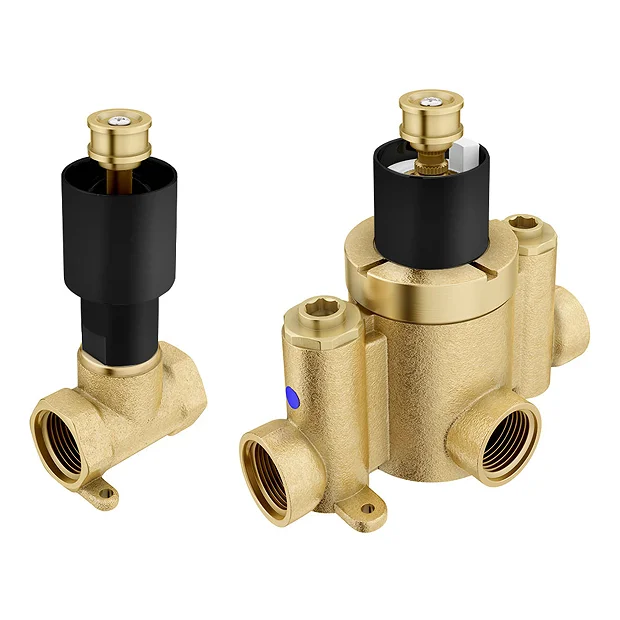

• Material: Brass Internals
• Concealed fitting
• Round backplates
• For use with 1 Outlet
• Min operating pressure: 0.5 bar
• Max operating pressure: 5 bar
• Hot Water Supply Temperature 55-85°C
• Cold Water Supply Temperature 4-29°C
• Suitable for modern pressurised plumbing systems.
• Pack includes individual thermostatic control with a individual stop tap for flow control.
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.
• Should a pump be required we recommend a universal or negative head pump.


For further information refer to products installation instructions

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

All measurements are approximate

Images are for illustrative purposes only

Comprises

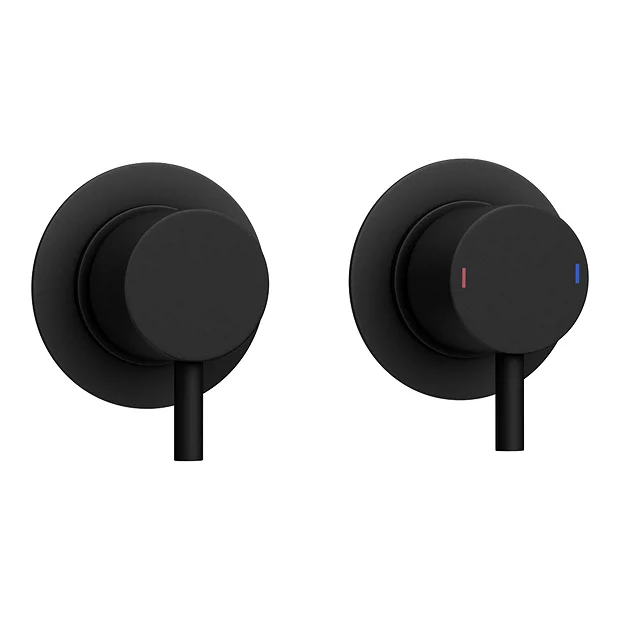

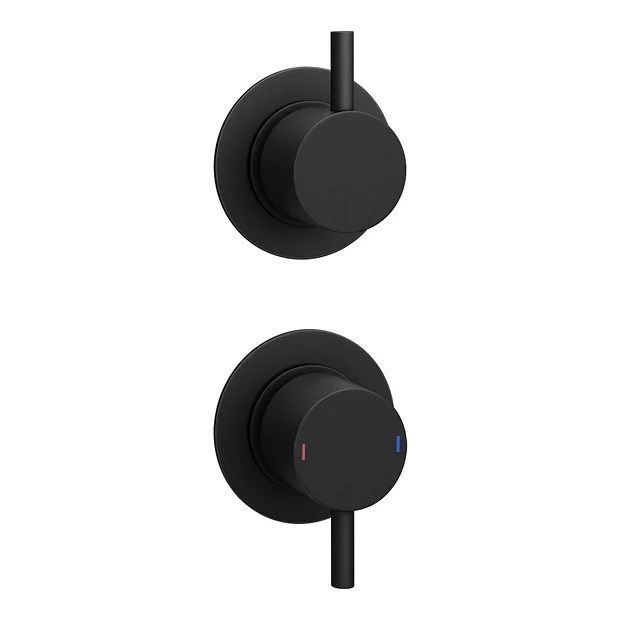

(1) Matt Black Individual Stop Tap with Round Backplate
(1) Matt Black Thermostatic Valve with Round Backplate

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
