Arezzo Gunmetal Grey Round Shower Package With Concealed Valve + Head

Arezzo Brushed Gunmetal Grey Round Shower Package with Concealed Valve + 200mm Wall Mounted Head

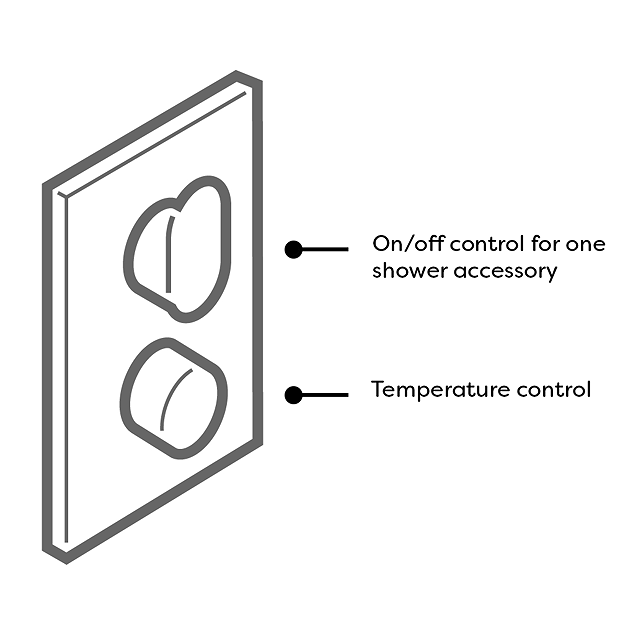

This Arezzo round concealed thermostatic valve features a quality brushed gunmetal grey finish with round tap heads, perfect for creating an eye catching look in your bathroom. Offers thermostatic showering via two easy-to-operate controls for temperature and flow. The valve body comes with a contemporary square face plate and has been constructed from solid brass. Supplied with matching wall mounted 200mm round fixed shower head with swivel joint and arm.

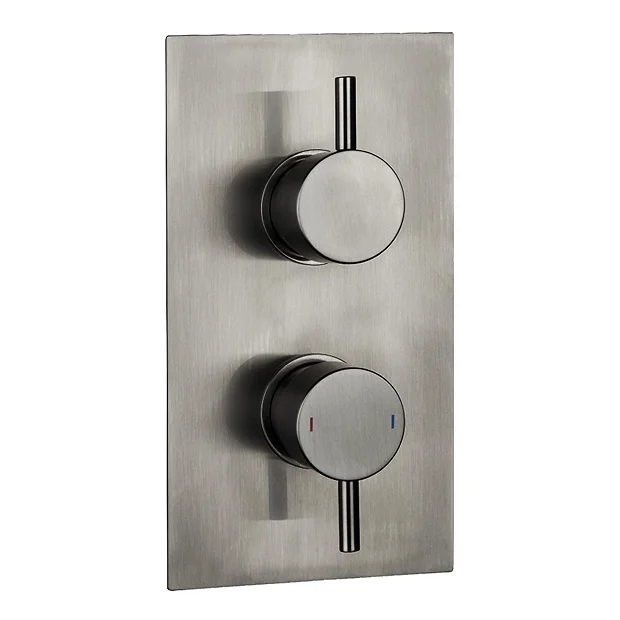

Shower Valve Details

• Height: 215mm
• Width: 120mm
• Style: Modern
• Colour/Finish: Brushed Gunmetal Grey
• Valve Handles: Round
• Brass Internals
• Thermostatically controlled
• Water Pressure: 0.5 bar to 5 bar
• Rectangular Faceplate
• For use with 1 Outlet
• Can be fitted vertically or horizontally
• Striking round handles with a contemporary gunmetal grey finish.
• Suitable for modern pressurised plumbing systems.
• Hot water temperature 55 to 85 Degrees
• Shower valve will not work efficiently on a gravity fed tank system, unless a correct booster pump is installed.
• Should a pump be required we recommend a universal or negative head pump.
• Flow Rates:
• 0.5 bar – 9.6 L/M
• 1 bar – 14.1 L/M
• 2 bar – 20.5 L/M
• 3 bar – 24.8 L/M
• 4 bar – 28.3 L/M
• 5 bar – 32 L/M

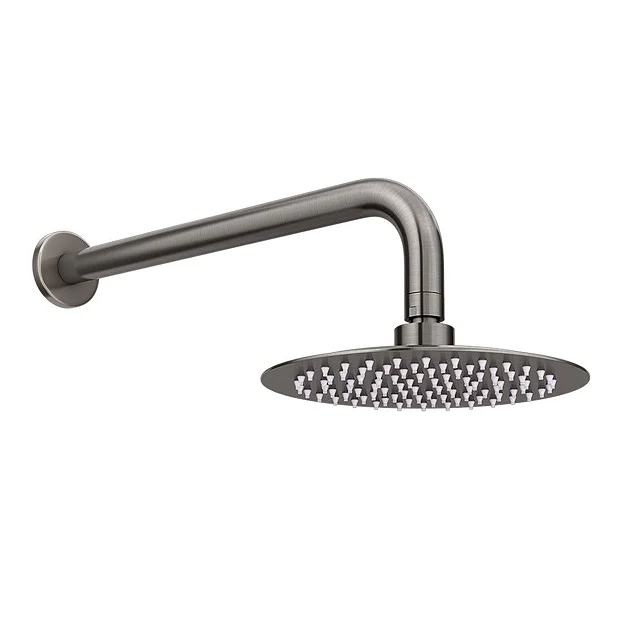

Shower Head + Arm Details

• Shower Head Dimensions: 200mm Diameter
• Shower Arm Length: 345mm (Approx.)
• Style: Modern
• Colour/Finish: Brushed Gunmetal Grey
• Material: Stainless Steel
• Rainfall Effect
• Ultra-Thin Shower Head
• Inlet Connections: 1/2″ BSP
• Pressure requirement 0.5 bar minimum
• Supplied with swivel joint and wall mounted round arm.
• Rub clean nozzles makes this item easy to clean and maintain
• Fixings not included
• Installation of the arm requires rear access behind the wall.

All measurements are approximate

Pictures for illustrative purposes only

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Comprises

(1) Twin Round Concealed Shower Valve – Brushed Gunmetal Grey
(1) 200 x 200mm Ultra Thin Round Head – Brushed Gunmetal Grey
(1) Round Shower Arm – Brushed Gunmetal Grey

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
