Arezzo Brushed Brass Square Thermostatic Bar Valve + Slide Rail Kit

Arezzo Brushed Brass Square Thermostatic Bar Valve + Slide Rail Kit

This stunning Arezzo square bar shower valve with slide rail kit is part of our range of contemporary collection of showers and valves. This modern bar valve features modern square styling with a brushed brass finish and has been constructed from solid brass.

Features a pre-set maximum temperature that ensures that showering is safe and convenient. Supplied with decorative shrouds/covers to protect and conceal tile/wall edge, giving the installation a neat finished appearance. Supplied with a matching modern slider rail kit for a clean, modern shower look.

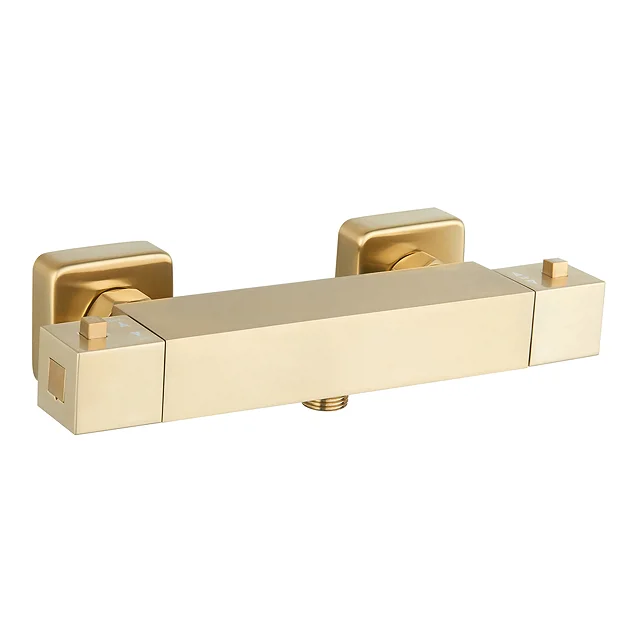

Bar Valve Details

• Width: 262mm
• Height: 60mm
• Projection: 88mm
• Type: Bar Shower Valve
• Style: Modern
• Shape: Square
• Fitting: Exposed
• Colour/Finish: Brushed Brass
• Material: Brass Internals
• 1 Bottom Outlet
• Surface / Wall Mounted
• Thermostatic

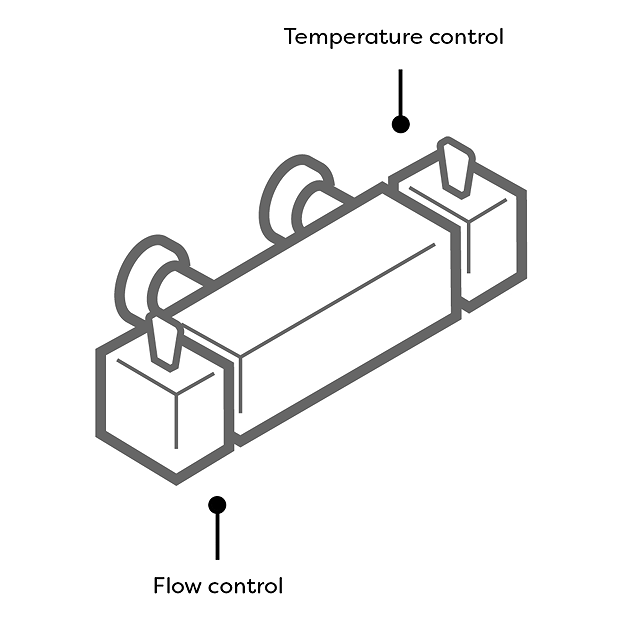

• Separate controls for temperature and flow
• Easy installation
• Built in anti-scald device
• Factory pre-set temperature 38°
• Recommended Water Pressure: 0.5 bar to 5 bar
• 150mm between pipe inlet centres
• Outlet: 15 mm (1/2″ BSP)
• Hot water temperature 55 to 85 Degrees
• With gravity fed systems a pump will be required, we recommend a universal or negative head pump

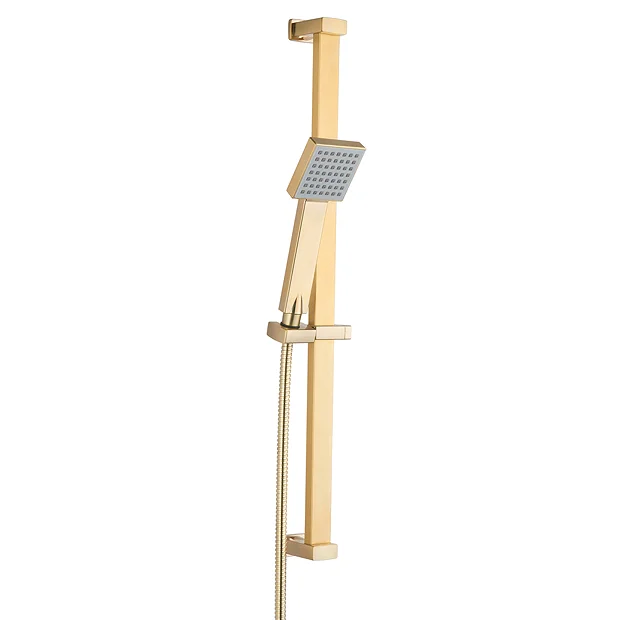

Slide Rail Kit Details

• Height: 663mm
• Colour: Brass
• Finish: Brushed
• Style: Modern
• Shape: Square
• LP1 – 0.5 bar pressure minimum
• Rust resistant hose
• Eye-catching finish
• Handheld Shower Handset
• Adjustable height shower head holder bracket
• Easy clean
• Outlet elbow not included

Please Note: During installation, please protect the connection parts of the shower with a soft material such as cloth, or use rubber lined grips, before tightening.

All measurements are approximate

Product images are for illustrative purposes only and may differ from the actual product.

Guarantee: 3 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Certain parts are plastic, not metal. The only parts that are not plastic are the shower valve, rail and the hose.

Package Contents

(1) Square Slide Rail Kit – Brushed Brass
(1) Square Thermostatic Bar Valve – Bottom Outlet – Brushed Brass

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
