AQUAS Reva Flex Smart 9.5KW White Electric Shower

AQUAS Reva Flex Smart 9.5KW White Electric Shower

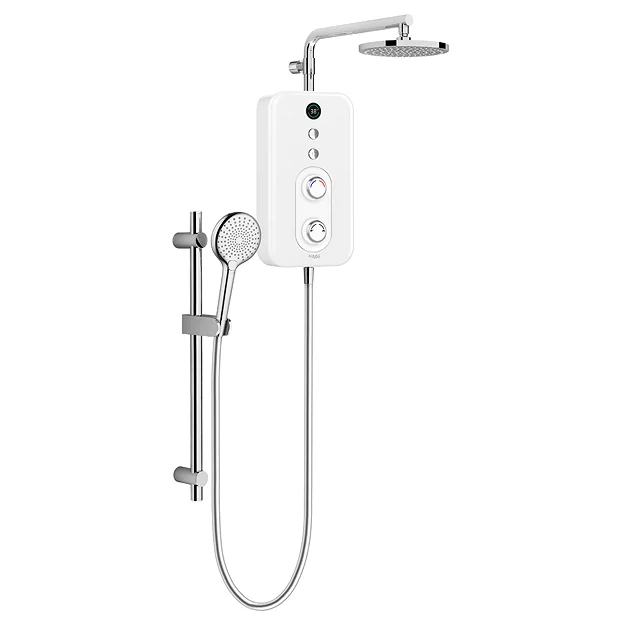

The all new AQUAS REVA 9.5KW Flex Smart Electric Shower is a retrofit shower that fits most current installations. It replaces single outlet showers and ads the choice of a an Overhead shower and hand shower.

The 200mm showerhead spray outlet nozzles are easy to clean and use state-of the art material for precise spray. The all new Vento 120 3F shower is a perfect match for electric showers. It comes with 3 different spray combinations. The liquid silicone nozzles are optimized for flow. The push button makes changing spray easy.

Switch seamlessly between fixed and handheld showerheads via the simple control unit. You can even adjust the power to 5KW for an eco-friendly flow without compromising on your invigorating shower experience.

Two-Way Divertor
Features a Two-way ceramic divertor to switch between Overhead and Handshower.

Longer Reach
Extra long 400mm+ reach extending the shower head out further from the wall

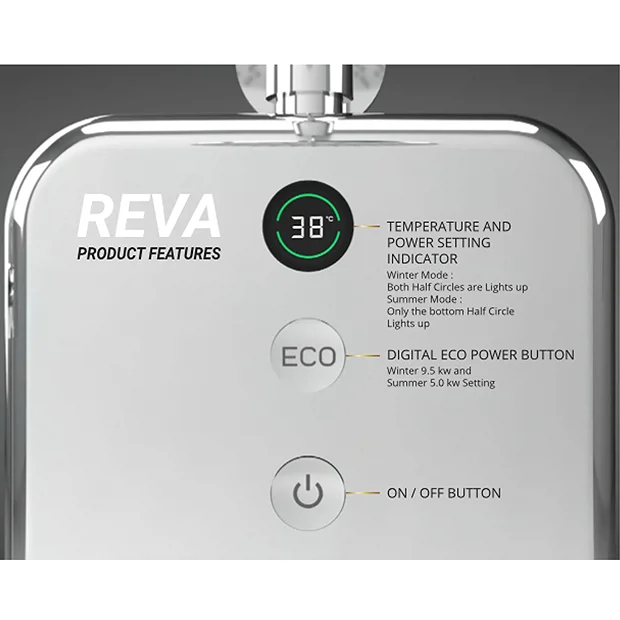

Latest model now features two power settings for warm and cold seasons:

• 9.5kw setting for cooler season – full moon on display
• ECO 5kw setting for warmer season – half moon on display
• Power setting remains in position even after restart of shower for comfort
• Before activating 9.5kw setting we recommend turning Volume control to full cold

Product Details

• Range: REVA
• Name: REVA FLEX SMART
• Colour: WHITE / CHROME
• Hand shower:

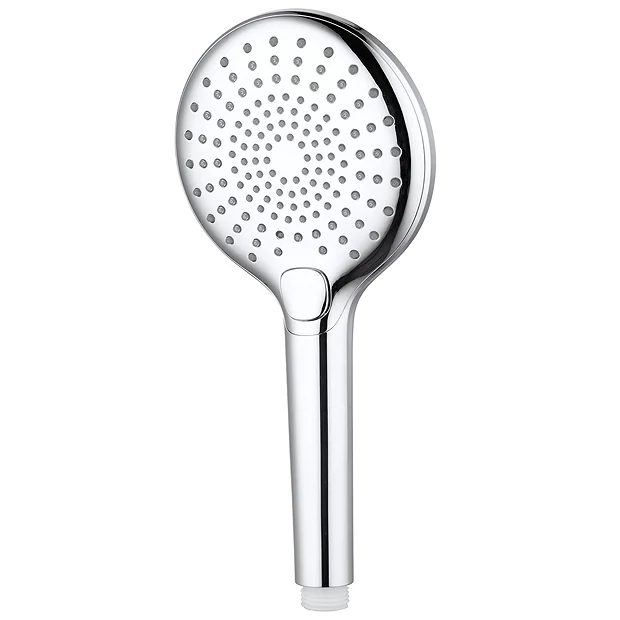

• Vento 120mm diameter, 124 liquid silicone nozzles 3 spray pattern with push button
• Overhead shower: SMART 200mm with silicone nozzles
• Slidebar:
• Rail length 600mm with front load slider
• Distance between rail brackets adjustable
• chrome hose 1,5m 1/2″ x  1/2″ twistfree non conductive
• Shower arm 400mm with free fixation
• Should you require the showerhead higher use extensions A000414 -300mm (AQ5701CP) or single or multiple 150mm A000412 (AQ5701CP)
• Power Rating: 9.5kw
• Minimum Flow required: 1.0 Bar
• Temperature control:
• Temperature and flow stabilizer
• Advantages:
• Fiber reinforced  Tank – less limescale, extended life, energy efficient, burst resistant
• Controls:
• Start/Stop button

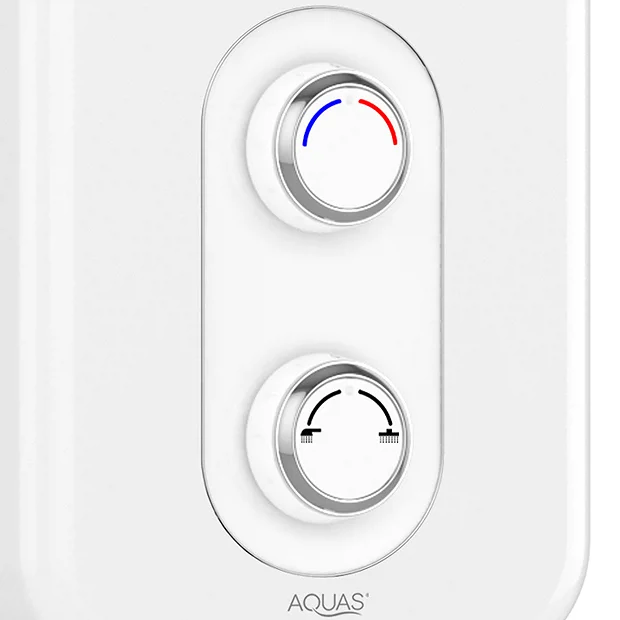

• Super Grip – enlarged temperature control for better adjustability
• Two-way ceramic divertor to switch between Overhead and Handshower
• Installation:
• Electrical and Water connection from 6 different positions:
• Side left, Side right, bottom left, bottom right, rear left, rear right
• Suitable for both for left and right hand installation
• Use standard UK plumbing connections – compression – Push fit.
• Outlet connection 1/2″ compression and pushfit 1/2″
• Power Input:
• A Power Input of 240 V and 40A MCB rating circuit breaker is required for max output ( 9.5 KW ) anything less and the heater will not operate at max efficiency
• Min-Max Working Pressure:
• A Min Dynamic flow pressure of 100 K /Pa ( 15 ib / Sq In ) – 1.0 BAR  is required
• A Max Static  pressure of 500 K /Pa ( 750 ib / Sq In ) – 5.0 BAR  should not be exceeded
• Approvals: BEAB, UK;

Images are for illustration purposes only

Warranty: 2 years

Gravity Fed Systems:
This AQUAS shower needs a minimum 1.0 bar of static water pressure feeding the shower, if the shower is being fitted to a gravity fed water tank from the loft (which we do not recommend) it needs to be fitted with a negative or universal head shower pump, this AQUAS shower is meant to have its own independent water feed from the mains.
